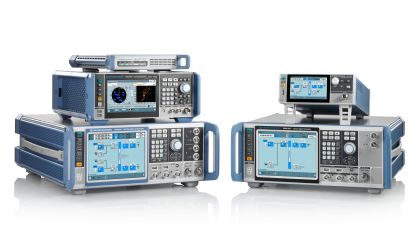

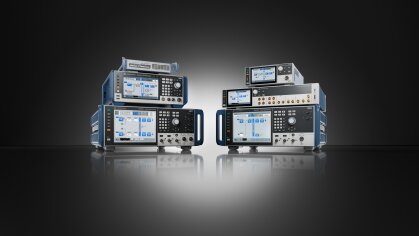

矢量信号发生器

矢量信号发生器

了解综合全面的罗德与施瓦茨矢量信号发生器产品

数十年来,罗德与施瓦茨凭借优异的测试与测量技术,提供广泛的射频矢量信号发生器产品组合。我们的产品包括可用于高难度信号生成任务的高性能型号、具备非凡射频特性的中端型号和紧凑型解决方案。

不同型号的解决方案都具有出色的性能、灵活性和适用性,可用于多种应用。无论是无线通信、GNSS 还是毫米波应用中的开发验证和测试任务,我们都能提供合适的解决方案。

矢量信号发生器
产品名称
频率范围
电平范围
I/Q 调制带宽
SSB 相位噪声
谐波
频率范围
100 kHz - 67 GHz
电平范围
-120 dBm - +18 dBm
I/Q 调制带宽
2 GHz 内部
2 GHz 外部
SSB 相位噪声
< –137 dBc
谐波
&lt; –55 dBc >3.5 GHz
频率范围
100 kHz - 44 GHz
电平范围
-120 dBm - +18 dBm
I/Q 调制带宽
1 GHz 内部
2 GHz 外部
SSB 相位噪声
< –129 dBc
谐波
< –55 dBc (f > 3.5 GHz)
频率范围
8 kHz - 6 GHz
电平范围
+20 dBm - –127 dBm
I/Q 调制带宽
1 GHz 内部
2 GHz 外部
SSB 相位噪声
< –126 dBc
谐波
< –30 dBc
频率范围
4 kHz - 7.125 GHz
电平范围
+20 dBm - –120 dBm
I/Q 调制带宽
240 MHz 内部/外部
SSB 相位噪声
< –125 dBc
谐波
< –30 dBc
频率范围
1 MHz - 6 GHz
电平范围
+17 dBm - -120 dBm
I/Q 调制带宽
240 MHz 内部
1 GHz 外部
SSB 相位噪声
< –126 dBc
谐波
< –30 dBc
频率范围
1 MHz - 12.75 GHz
电平范围
–120 dBm - +15 dBm
I/Q 调制带宽
1 GHz ext.
SSB 相位噪声
< –126 dBc
谐波
< –30 dBc
频率范围
12 GHz - 40 GHz
电平范围
–100 dBm - +15 dBm
I/Q 调制带宽
2 GHz(外部)
SSB 相位噪声
< –126 dBc
谐波
< –30 dBc
数字标准
产品名称
描述
描述
符合 3GPP R15、R16 和 R17 规范的 5G 上行链路/下行链路 FDD 或 TDD 信号
描述
符合 3GPP 第 8 版至第 15 版的 LTE 上行链路/下行链路 FDD 或 TDD 信号生成
描述
根据 3GPP FDD 第 11 版规范的 WCDMA/HSPA+ 上行链路/下行链路信号生成
描述
适用于 GSM/EDGE 和 EDGE Evolution(包括 VAMOS)的信号生成解决方案
描述
根据 3GPP2 C.S0002-C、C.S0024-A/B 的 CDMA2000、1xEV-DO 和 1xEV-DO Rev. B 信号生成
描述
TD-SCDMA 信号生成符合 3GPP TDD LCR 标准,包括针对 TD-SCDMA 的 HSDPA 和 HSUPA 功能
描述
符合 IEEE 802.11a/b/g/n/j/p/ac/ax/be/ad 标准的信号生成
描述
符合 Bluetooth® 5.2 规范和先前版本的信号生成
描述
符合标准的信号生成,适用于 NFC-A、NFC-B 和 NFC-F 标准
描述
根据 LoRa® 规范的物理层信号生成,包括信号损伤
描述
多种 GNSS 选件使仪器转变为可靠且功能全面的 GNSS 信号源
描述
适用于 VOR、ILS、DME 和 GBAS 的信号发生器解决方案
描述
符合 DVB-S/-S2/-S2X 或 OneWeb 等所有相关标准的信号生成以用于组件、有效载荷、终端和地面站测试
描述
全球常用广播电视信号生成以用于研发和生产中的组件和接收机测试
描述
基于场景生成雷达信号以评估器件,包括具有多个射频端口的复杂接收系统。
Description
Standard-compliant signal generation in line with IEEE 802.15.4z
