创新。精确。面向未来

天线测试系统和 OTA 测试暗箱

探索罗德与施瓦茨无线设备测试仪和空口 (OTA) 天线测试解决方案

罗德与施瓦茨以一流的工程技术开发创新解决方案,积累了丰富经验,可提供先进的天线测试系统和 OTA 测试暗箱。

我们的解决方案精心设计,易于使用。罗德与施瓦茨保证尽可能兼容传统技术,同时满足未来要求以支持新兴技术。我们建立了由技艺精湛的技术人员和客户服务人员组成的全球性支持网络,确保解决方案更加可靠。

产品清单
比较
产品名称
频率范围
屏蔽效能
外形尺寸(宽 x 深 x 高;单位:m)
静区
应用
频率范围
18 GHz 至 90 GHz
屏蔽效能
>90 dB(典型值)
外形尺寸(宽 x 深 x 高;单位:m)
0.9 x 1.5 x 2.0
静区
Ø 30 cm
应用
研发、一致性和预一致性(射频、LBS、Netop、PCT、PQA)
频率范围
6 GHz 至 110 GHz
屏蔽效能
>90 dB(典型值)
外形尺寸(宽 x 深 x 高;单位:m)
0.90 x 1.61 x 1.99
静区
Ø 30 cm
应用
汽车电子雷达研发、校准、验证、预一致性测试
频率范围
20 GHz 至 50 GHz
屏蔽效能
>40 dB(典型值)
外形尺寸(宽 x 深 x 高;单位:m)
0.8 x 1.0 x 2.1
静区
Ø 20 cm
应用
研发、预一致性(射频、LBS、Netop、PCT、PQA)
频率范围
20 GHz 至 50 GHz
屏蔽效能
不适用
外形尺寸(宽 x 深 x 高;单位:m)
1.2 x 0.6 x 0.8
静区
Ø 20 cm
应用
台式设备研发、学术机构、研究机构
频率范围
18 GHz 至 87 GHz
屏蔽效能
-
外形尺寸(宽 x 深 x 高;单位:m)
1 x 1.5 x 2.1
静区
Ø 4 cm(40 GHz 时)
应用
研发、天线测量
频率范围
0.7 GHz 至 77 GHz
屏蔽效能
>80 dB
外形尺寸(宽 x 深 x 高;单位:m)
0.45 x 0.7 x 0.6
静区
Ø 2 cm(40 GHz 时)
应用
研发、生产、5G FR1 和 FR2 设备/组件 LBS、NPT
频率范围
0.3 GHz 至 14 GHz   或   20 GHz 至 77 GHz
屏蔽效能
> 60/80 dB
外形尺寸(宽 x 深 x 高;单位:m)
0.45 x 0.7 x 0.6
静区
-
应用
研发、生产、5G FR2 设备/组件
频率范围
0.4 GHz 至 18 GHz
屏蔽效能
> 100 dB
外形尺寸(宽 x 深 x 高;单位:m)
0.77 x 0.7 x 0.76
静区
-
应用
研发、生产样本测试、诊断
频率范围
0.3 GHz 至 18 GHz
屏蔽效能
>80 dB
外形尺寸(宽 x 深 x 高;单位:m)
0.45 x 0.48 x 0.4
静区
-
应用
研发、生产
频率范围
0.4 GHz 至 6 GHz
屏蔽效能
> 60/80 dB
外形尺寸(宽 x 深 x 高;单位:m)
0.32 x 0.27 x 0.53
静区
-
应用
研发
频率范围
1.7 GHz 至 5 GHz
屏蔽效能
取决于暗箱
外形尺寸(宽 x 深 x 高;单位:m)
取决于暗箱
静区
1.05 m 直径(1.5 m 距离时)
应用
适用于研发和生产的基站测试
Freq. range
-
Shielding eff.
-
Outer dimensions (W x D x H in m)
-
Quiet zone
-
Application
System software for OTA device test and antenna measurements
03 比较产品
选择至少2个产品

相关主题

5G

灵活、面向未来的 5G 信号生成和分析以及空口 (OTA) 测试解决方案。

更多信息

LTE/LTE-A/LTE-A Pro

灵活的模块化测试解决方案,涵盖 4G 测试的所有方面。

更多信息

无线连接

适用于非蜂窝标准的快速测试解决方案,包括 WLAN/Wi-Fi 和 Bluetooth® 标准。

更多信息

天线测试

MIMO 和有源波束成形系统设计和测试

更多信息

相关产品

R&S®CMP200

产品信息

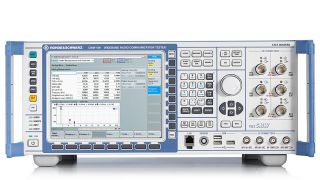

R&S®CMW500

产品信息

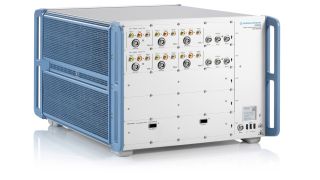

R&S®CMX500
