R&S®SGS100A SGMA 射频源

R&S®SGS100A SGMA 射频源
打开灯箱
R&S®SGS100A SGMA 射频源
打开灯箱
R&S®SGS100A SGMA 射频源
打开灯箱
R&S®SGS100A SGMA 射频源
打开灯箱
R&S®SGS100A SGMA 射频源
打开灯箱

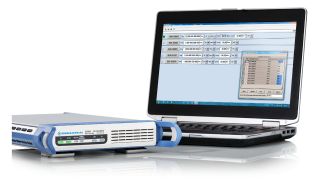

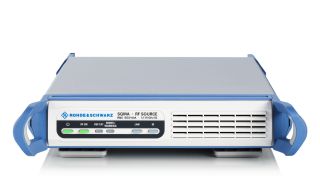

R&S®SGS100A SGMA 射频源,前视图 R&S®SGS100A SGMA 射频源,高前视图 R&S®SGS100A SGMA 射频源,侧视图 R&S®SGS100A SGMA 射频源,后视图 R&S®SGS100A SGMA 射频源,应用图像

主要特点

  • 市面上较为小巧的全集成式矢量信号发生器
  • 出色的射频性能,采用节省空间的设计
  • 最大输出电平典型值为 +22 dBm,可补偿装置损耗
  • 最高 12.75 GHz 的高输出频率,实现广泛的适用性
  • 无磨损电子衰减器,实现高度可靠性

紧凑,迅速,可靠

R&S®SGS100A 是一种可满足自动化测试系统要求的射频源。它可用作连续波信号源,也可作为带集成式 I/Q 调制器的矢量信号发生器。作为矢量信号发生器时,频率最高为 12.75 GHz,可以生成必要的数字信号。用作连续波信号源时,射频源可作为灵活本振,也可根据移动无线电标准用于干扰测试。

特性和优点

针对自动化测试环境的专用信号源——体型小巧

尺寸较小的集成式信号发生器,尽量减小系统体积

仪器体型小巧,高度为一个机架单元,宽度为 1/2 19" 机架宽度,可节省测试系统空间并降低成本。以前通常一个射频通道所需的空间现可配置四个最高 12.75 GHz 的射频通道,显著节省了空间。这使得 R&S®SGS100A 非常适用于自动化测试应用,甚至可以满足同时提供多个射频源的要求。

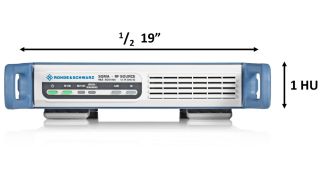

小尺寸的集成式信号发生器:1 HU,1/2 19"
打开灯箱

小尺寸的集成式信号发生器:1 HU,1/2 19"

针对自动化测试环境的专用信号源——快速设置

通过 PCIe/以太网接口快速设置
实现高吞吐量

生产应用需要快速测试,以确保高吞吐量。R&S®SGS100A 通过多种方式满足这个要求。仪器的内部架构和软件旨在实现优异的速度,PCIe/以太网接口能够快速地传输远程控制命令。

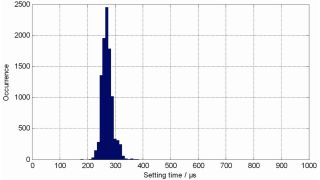

10,000 次频率设置时间直方图
打开灯箱

10,000 次频率设置时间直方图

通过 PCIe 接口的 10,000 次频率设置时间测量值直方图,设置特点:自动

针对自动化测试环境的专用信号源——高额的最大电平

高额的最大电平,可补偿装置中的损耗

在复杂的测试系统中,信号发生器和被测设备之间一般会出现若干分贝的电平损耗。原因在于使用长电缆或开关矩阵和滤波器。R&S®SGS100A 的输出电平典型值为 +22 dBm,提供充足裕度来补偿此类损耗。可选最高 12.75 GHz 的无磨损电子衰减器。

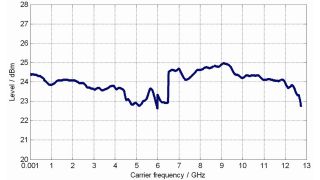

连续波信号的大额可用电平
打开灯箱

连续波信号的大额可用电平

连续波信号的最大可用电平,设置特点:自动,带 R&S®SGS-B26 电子步进衰减器选件(测量值)

正确的工具包确保了高性能

出色的电平线性度和可重复性,确保了一致的测试条件

R&S®SGS100A 运行速度快、设计紧凑,并提供以往高端台式仪器才具备的优异性能。但是,最大电平并非唯一的重要因素。在经过校准的测试系统中,发生器的电平可重复性和线性度也非常重要。高电平可重复性确保测试条件一致,并在定义测试限值时保证较低的容差。

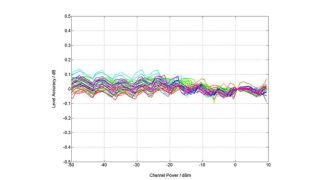

针对通道功率的电平线性度
打开灯箱

针对通道功率的电平线性度

电平线性度,针对 3GPP TM1/64 信号(峰值因子为 10.55 dB);不同颜色指示不同的射频频率(测量值)

互联性能

充分调整以用于自动化测试环境

尽管体积小巧,R&S®SGMA 产品系列仍提供多种远程控制选件。建议结合使用 PCIe 或以太网,以及适用于 Windows 和 Linux 的罗德与施瓦茨仪器驱动程序,以便实现最佳设置速度。所有连接器标准配置在仪器背部,结合广泛的机架安装适配器,确保可简单集成到测试系统中。

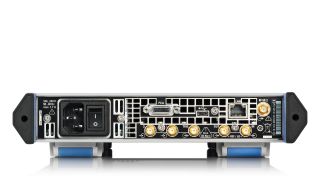

后面板端口
打开灯箱

后面板端口

大幅降低总拥有成本

低初始成本和拥有成本

  • 非常具吸引力的初始成本
  • 采用简单的模块化设计,有助于缩短维修时间,进而大幅缩短测试系统停机时间
  • 校准间隔久,大幅减少了维修成本
  • 3 年标准保修

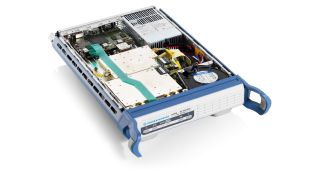

R&S®SGS100A 内部视图
打开灯箱

R&S®SGS100A 内部视图

可用选项

频率选件
产品
描述
R&S®SGS-B106

订单号码 1416.2308.02

描述

1 MHz 至 6 GHz,CW(无调制)

R&S®SGS-B106V

订单号码 1416.2350.02

描述

1 MHz 至 6 GHz,I/Q(通过矢量调制)

R&S®SGS-B112

订单号码 1416.1553.02

描述

频率扩展至 12.75 GHz,CW

需要 R&S®SGS-B106。

R&S®SGS-B112V

订单号码 1416.1576.02

描述

频率扩展至 12.75 GHz,IQ

需要 R&S®SGS-B106V。

参考振荡器选件
产品
描述
R&S®SGS-B1

订单号码 1416.2408.02

描述

OCXO 参考振荡器

模拟调制选件
产品
描述
R&S®SGS-K22

订单号码 1416.2650.02

描述

脉冲调制

衰减器选件
产品
描述
R&S®SGS-B26

订单号码 1416.1353.02

描述

电子步进衰减器

其他选件
产品
描述
R&S®SGS-K90

订单号码 1416.2608.02

描述

相位相参输入/输出

附件
产品
描述
R&S®SGU-Z3

订单号码 1418.3801.02

描述

电缆套件,用于连接 R&S®SGU100A 和 R&S®SGS100A(并排)

R&S®SGU-Z4

订单号码 1418.3701.02

描述

连接套件,用于连接 R&S®SGU100A 和 R&S®SGS100A

R&S®ZZA-KN20

订单号码 1175.3191.00

描述

机架安装适配器,用于并排安装两台 R&S®EM200

1 HU 安装适配器,适用于 19" 机架

R&S®ZZA-KN21

订单号码 1175.3204.00

描述

机架安装适配器,用于安装一台 R&S®EM200

1 HU 安装适配器,适用于 19" 机架,带机架盲板

R&S®SGS-Z8

订单号码 1416.2914.02

描述

SGMA 适配器(并排)

用于连接两个 SGMA 单元(R&S®SGS100A、R&S®SGU100A 或 R&S®SGT100A)

文件
产品
描述
R&S®DCV-2

订单号码 0240.2193.09

描述

校准值文件
