Bluetooth® 数字标准

Bluetooth®  数字标准
打开灯箱

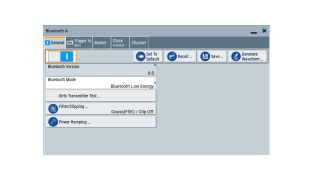

Bluetooth® 数字标准,屏幕截图

主要特点

  • 符合最高 Bluetooth® 5.2 标准的信号生成
  • 基本速率 (BR)、增强型数据率 (EDR)、低功耗 (LE)
  • 用于接收机灵敏度测试用例的加扰发射机
  • 所有传输模式、通道类型、数据包类型和格式
  • 使用直观的编辑器灵活配置数据包

符合 Bluetooth®5.2 的灵活信号生成

Bluetooth® 软件选件支持在罗德与施瓦茨矢量信号发生器中根据 Bluetooth®5.2 规范和先前版本生成符合 Bluetooth® 标准的信号。用户界面支持所有不同通道类型、数据包类型和数据包格式(包括到达角/离去角)的基本速率 (BR)、增强型数据率 (EDR) 和低功耗 (LE) Bluetooth® 信号配置。可以通过用户特定的数据使用直观的数据包编辑器修改数据包内容。可以进行额外的加扰发射机配置以进行接收机灵敏度测试。

特性和优点

Bluetooth® 4.2

  • 符合 Bluetooth® 4.2 规范,包括增强型数据率 (EDR) 和低功耗 (LE) 模式
  • 支持所有三种传输模式:ACL+EDR、SCO 和 eSCO+EDR
  • 基本速率 (BR) 和增强型数据率 (EDR) 模式支持所有数据包类型

打开灯箱

Bluetooth®5.x

  • 进一步改进若干低功耗 (LE) 特性以用于 IoT 应用
  • LE 远程距离增至四倍
  • 速度提高一倍,达到 2 Msymbol/s
  • LE 广播扩展以将数据广播容量增加 800%
  • 通过到达角/离去角进行测向

打开灯箱

可用型號

R&S®SMW200A
型号
描述
基本单元

R&S®SMW-K60

订单号码 1413.4239.02

描述
Bluetooth® EDR
基本单元

R&S®SMW-K117

订单号码 1414.3336.02

描述
Bluetooth® 5.x
基本单元

R&S®SMW-K260

订单号码 1413.5287.02

描述
Bluetooth® EDR (WinIQSIM2™)
基本单元

R&S®SMW-K417

订单号码 1414.3371.02

描述
Bluetooth® 5.x (WinIQSIM2™)
基本单元
R&S®SMM100A
型号
描述
基本单元

R&S®SMM-K60

订单号码 1441.1918.02

描述
Bluetooth® EDR
基本单元

R&S®SMM-K117

订单号码 1441.1799.02

描述
Bluetooth® 5.x
基本单元

R&S®SMM-K260

订单号码 1441.1599.02

描述
Bluetooth® EDR (WinIQSIM2™)
基本单元

R&S®SMM-K417

订单号码 1441.1401.02

描述
Bluetooth® 5.x (WinIQSIM2™)
基本单元
R&S®SMBV100B
型号
描述
基本单元

R&S®SMBVB-K60

订单号码 1423.7853.02

描述
Bluetooth® EDR
基本单元

R&S®SMBVB-K117

订单号码 1423.8089.02

描述
Bluetooth® 5.x
基本单元

R&S®SMBVB-K260

订单号码 1423.8295.02

描述
Bluetooth® EDR (WinIQSIM2™)
基本单元

R&S®SMBVB-K417

订单号码 1423.8537.02

描述
Bluetooth® 5.x (WinIQSIM2™)
基本单元
R&S®SMCV100B
型号
描述
基本单元

R&S®SMCVB-K260

订单号码 1434.4396.02

描述
Bluetooth® EDR (WinIQSIM2™)
基本单元

R&S®SMCVB-K417

订单号码 1434.4750.02

描述
Bluetooth® 5.x (WinIQSIM2™)
基本单元
R&S®SGT100A
型号
描述
基本单元

R&S®SGT-K260

订单号码 1419.6856.02

描述
Bluetooth® EDR (WinIQSIM2™)
基本单元

R&S®SGT-K417

订单号码 1426.3759.02

描述
Bluetooth® 5.x (WinIQSIM2™)
基本单元
