Development and production of satellite user-terminals

Overview of user terminals

Satellite user-terminals are developed for various satellite networks and applications. They transmit and receive signals to and from satellites, enabling global connectivity and services such as broadcasting, internet access and data transfer.

There are several types of user terminals, for example BGAN terminals, VSAT terminals, military terminals and others including SBB, FBB and Iridium.

Satcom on the Move (SOTM) pertains to mobile satellite communications. It’s a technology employed in military ground vehicles, maritime vessels, and airborne platforms. Essentially, SOTM enables a vehicle equipped with a satellite antenna to establish and maintain communication with a satellite while in motion.

Satellite user terminal test challenges

Manufacturers face several difficulties during user terminal development and production. These challenges highlight the need for innovation, strategic planning and efficient production processes.

User terminals need to fulfill many requirements, which are driven by the need for high-speed, reliable and secure communication links. With advancements in technology, these requirements are likely to evolve and become more complex.

Key challenges include:

  • Operation across multiple satellite frequency bands
  • Communication with high-throughput satellites (HTS)
  • Integrated modems that combine modem functionality with the antenna to reduce overall complexity and cost
  • Electronically steerable antennas (ESA)
  • Software defined radios (SDR) that must adapt to different satellite networks
  • Satcom-on-the-move (SOTM)

High-performance satellite user terminal test solutions

At Rohde & Schwarz, we offer solutions for testing component, subsystems and complete user terminals.

  • RF & microwave component testing: mixer, frequency converter, low-noise amplifier (LNA), low-noise block converter (LNB), power amplifier, voltage-controlled oscillator (VCO)
  • Sub-systems testing: power supply, traditional and ESA antennas, LNB, modem, WiFi modules
  • Entire user-terminal testing: EMC

Rohde & Schwarz products for user terminal testing

Spectrum and signal analyzers

Innovative VSAs for development, qualification and production of satellite systems.

更多信息

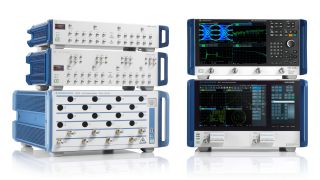

Vector network analyzers

High-performance VNAs for development, qualification and production of satellite systems.

更多信息

Vector signal generators

Industry-leading VSGs for development, qualification and production of satellite systems.

更多信息

Phase noise analyzers

Industry-leading solutions that enable two-path phase noise analysis.

更多信息

EMC test equipment

Complete solution portfolio for EMC precompliance testing in development laboratories.

更多信息

RF and microwave power meters

RF & microwave power sensors that provide highest measurement accuracy and speed.

更多信息

Oscilloscopes

Oscilloscopes that fit all requirements and budgets, from top value to top performance.

更多信息

Antenna test systems

OTA antenna test systems for a wide range of R&S applications.

更多信息

Benefits of our satellite user terminal test solutions

Enhance the reliability and quality of your satellite systems with our high performance test and measurement solutions.

  • Highest measurement precision
  • Coverage of relevant measurement needs in line with test matrix
  • High confidence level as to the correct functioning of tested system
  • Early adoption of latest satellite test requirements
  • Local market presence and customer support
  • Cost-efficient testing process
