Simulation of Avionics Systems

Simulation of Avionics Systems
打开灯箱
航空电子系统模拟仪器选件,应用图像

主要特点

  • 仪表着陆系统 (ILS) 仿真
  • 甚高频全向无线电信标台 (VOR) 仿真
  • 测距设备 (DME) 仿真
  • 陆基增强系统 (GBAS) 仿真

测试飞行导航接收机

VOR、DME 或 ILS 等传统的陆基飞行导航辅助设备仍在航路导航、精确进场和着陆方面发挥着重要作用。也可以结合使用星基导航和局域陆基增强系统 (GBAS) 的差分校正进行着陆。使用这些技术的机载导航接收机需要在受控且可重复的条件下进行测试。罗德与施瓦茨提供各种解决方案,可生成适用于此类导航飞行系统的信号。

特性和优点

逼真的测试

在真实条件下进行航空电子接收机测试

罗德与施瓦茨航空电子测试解决方案可为航空电子接收机创建真实的测试环境,与机载接收机的信号接收条件极为相似。GPS/GBAS 组合模拟可根据与模拟的 GNSS 误差相一致的差分校正生成 GBAS 消息。这样能够执行高级多模接收机测试。

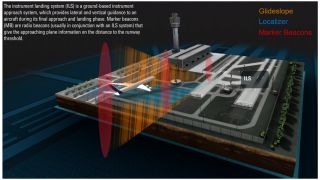

ILS

功能集

  • 生成 ILS 航向台信号
  • 生成 ILS 下滑道信号
  • 生成信标台信号

打开灯箱

VOR

功能集

  • 四种不同的操作模式(NORM、VAR、子载波、子载波和调频)
  • 可配置的 VOR 方位角,分辨率高达 0.01°

打开灯箱

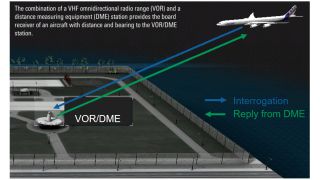

DME

功能集

  • 询问器模式和应答模式
  • 能够测试 DME 地面站和 DME 飞机设备
  • 结合 R&S®NRP-Z81 功率探头的 DME 信号分析

打开灯箱

GBAS

功能集

  • 通过甚高频链路传输 GBAS 消息
  • 同时模拟多达 11 个 GBAS 频道,模拟多个甚高频数据广播 (VDB) 塔台
  • 生成 1、2、4 或 11 种消息类型
  • 支持根据用户可配置的航路点文件和差分 GNSS 数据生成真实的 GBAS 数据
  • 灵活的消息类型调度
  • 根据与模拟的 GNSS 误差相一致的差分校正进行同步 GNSS/GBAS 模拟,进而执行多模接收机测试

打开灯箱

可用型號

R&S®SMBV100B
型号
描述
基本单元

R&S®SMBVB-K111

订单号码 1423.8020.02

描述
GBAS
基本单元

R&S®SMBVB-K152

订单号码 1423.8137.02

描述
VOR
基本单元

R&S®SMBVB-K153

订单号码 1423.8143.02

描述
DME
基本单元

R&S®SMBVB-K151

订单号码 1423.8120.02

描述
ILS
基本单元
