5G New Radio 数字标准

主要特点

符合 3GPP R15、R16 和 R17 规范的 5G 上行链路/下行链路 FDD 或 TDD 信号
FR1 和 FR2 的所有参数集和通道带宽
通道编码和 PDSCH/PUSCH 空间复用
测试用例向导支持根据 3GPP TS 38.141-1 和 38.141-2 轻松设置测试
记录信号生成链的中间结果

获取报价

5G 新空口信号生成

5G NR 软件选件简化 5G NR 信号配置的上行链路和下行链路。它支持各标准中规定的所有波形、通道带宽、调制方案和参数集选件。结合 WinIQSIM2，可以通过直观的图形用户界面直接在仪器或桌面配置多个带宽分片或 MIMO 预编码等诸多参数。
上下文关联的帮助菜单、下行链路测试模型预设、上行链路固定参考通道和关于已配置信号的图形化时间表相结合，确保工作流快速高效。信号生成链的中间结果易于记录以进行调试。测试用例向导有助于轻松设置基站测试。

快速链接

可用的型号

特性和优点

支持所有物理信号和通道

灵活配置 5G 新空口物理层

5G NR 软件选件根据 3GPP R15、R16 和 R17 规范实现物理层。选件支持所有下行链路和上行链路物理通道与带混合参数集的多个带宽分片，并支持数据和控制信息的通道编码、加扰、复用等重要的物理层功能。选件提供符合标准的信号以用于测试组件、模块、接收机和基站。

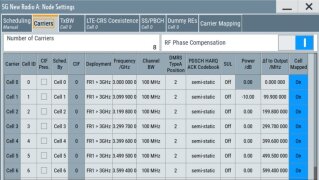

MIMO、载波聚合 (CA) 和多用户

轻松配置 MIMO 信号和至多 16 个分量载波以进行载波聚合 (CA)

5G NR 软件选件全面提供空间复用 (MIMO) 和发射分集支持，并支持灵活的天线端口映射。可以配置至多 16 个分量载波的载波内和载波间聚合，包括跨载波调度。
至多可以配置 10 个调度用户以进行真实的接收机测试。

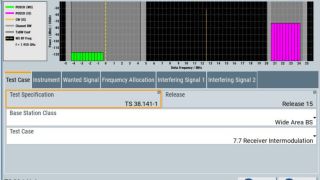

轻松设置基站测试的测试用例向导

测试用例向导支持根据 3GPP TS 38.141-1 配置基站一致性测试所需的测试信号。向导根据定义的测试用例提供一系列预先定义的有用信号和干扰信号设置。闭环基站测试选件还支持所需 5G NR 上行链路测试信号的动态变化，以执行第 8 章描述的 HARQ 反馈测试。

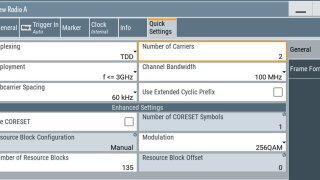

简化的物理层配置

“快速设置”菜单简化组件测试的 5G NR 信号生成。只需点击一下，即可更改通道带宽、子载波间隔、调制和资源块分配等重要参数。TDD 时隙分配包括特殊时隙，可以通过图形显示进行配置。

准确的电平设置和峰值因子降低

5G NR 物理层具有频域和时域灵活性，使设置特定的输出功率变得具有挑战性。不同的模式可用于定义信号功率的计算方法。如此一来，由于参考带宽自动配置，因此能够确保准确的 PRACH 测量。具备特定目标峰值因子的信号可以直接进行配置（需要峰值因子降低选件）。

支持优化设计流程

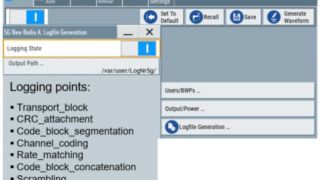

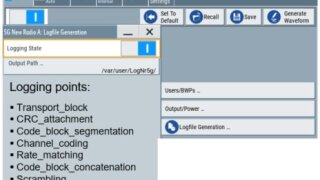

日志文件用于设计验证和增强型调试

日志记录点可用于采集前向纠错等信号处理链中间结果，并可以位流或 I/Q 样本文件的格式进行存储。这样，设计人员可以验证接收机和发射机软件的 5G NR 物理层实现，并了解有用信息以增强调试。
