GSM/EDGE and EDGE Evolution 数字标准

GSM/EDGE and EDGE Evolution 数字标准
打开灯箱

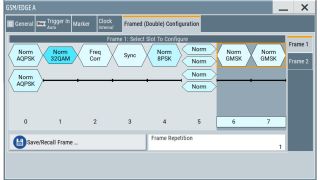

GSM/EDGE 和 EDGE Evolution 数字标准,屏幕截图

主要特点

  • 实时 GSM/EDGE/EDGE Evolution 信号生成
  • GSM、EDGE 和 EDGE Evolution 时隙的混合帧配置
  • 每个时隙的功率电平和调制类型配置
  • 支持所有必要的突发类型
  • 非成帧、单帧和多帧信号生成

GSM/EDGE/EDGE Evolution 信号生成

符合标准的信号生成解决方案,结合 GSM/EDGE 和 EDGE Evolution 选件,可用于测试基站和移动接收机或相关组件。每个 TDMA 帧的时隙可以独立配置电平衰减或突发类型。可以为 HSCSD 定义半速率时隙和多重时隙。EDGE Evolution 增强功能包括下行链路双载波操作、高阶调制(例如 16QAM、32QAM)和可选的高符号率。



特性和优点

GSM/EDGE

  • 根据 3GPP 第 8 版规范
  • 支持的调制方案:MSK、FSK、8PSK
  • 突发类型:正常、同步、访问、频率校正
  • 标准符号率:270.833 kHz
  • 支持 HSCSD 和 GPRS 多重时隙

打开灯箱

EDGE Evolution

  • 根据 3GPP 第 9 版规范
  • 附加高阶调制类型:16QAM、32QAM
  • 附加突发类型:正常、全数据、HSR
  • 附加高符号率:325 kHz
  • 支持 AQPSK 调制和突发以实施 VAMOS 操作

打开灯箱

可用型號

R&S®SMW200A
型号
描述
基本单元

R&S®SMW-K40

订单号码 1413.3684.02

描述
GSM/EDGE
基本单元

R&S®SMW-K41

订单号码 1413.3732.02

描述
EDGE Evolution
基本单元

R&S®SMW-K240

订单号码 1413.4739.02

描述
GSM/EDGE (WinIQSIM2™)
基本单元

R&S®SMW-K241

订单号码 1413.4780.02

描述
EDGE Evolution (WinIQSIM2™)
基本单元
R&S®SMM100A
型号
描述
基本单元

R&S®SMM-K40

订单号码 1441.2020.02

描述
GSM/EDGE
基本单元

R&S®SMM-K41

订单号码 1441.2014.02

描述
EDGE Evolution
基本单元

R&S®SMM-K240

订单号码 1441.1724.02

描述
GSM/EDGE (WinIQSIM2™)
基本单元

R&S®SMM-K241

订单号码 1441.1718.02

描述
EDGE Evolution (WinIQSIM2™)
基本单元
R&S®SMBV100B
型号
描述
基本单元

R&S®SMBVB-K40

订单号码 1423.7724.02

描述
GSM/EDGE
基本单元

R&S®SMBVB-K41

订单号码 1423.7730.02

描述
EDGE Evolution
基本单元

R&S®SMBVB-K240

订单号码 1423.8166.02

描述
GSM/EDGE (WinIQSIM2™)
基本单元

R&S®SMBVB-K241

订单号码 1423.8172.02

描述
EDGE Evolution (WinIQSIM2™)
基本单元
R&S®SMCV100B
型号
描述
基本单元

R&S®SMCVB-K240

订单号码 1434.4150.02

描述
GSM/EDGE (WinIQSIM2™)
基本单元

R&S®SMCVB-K241

订单号码 1434.4173.02

描述
EDGE Evolution (WinIQSIM2™)
基本单元
R&S®SGT100A
型号
描述
基本单元

R&S®SGT-K240

订单号码 1419.5950.02

描述
GSM/EDGE (WinIQSIM2™)
基本单元

R&S®SGT-K241

订单号码 1419.6004.02

描述
EDGE Evolution (WinIQSIM2™)
基本单元
