主要特点

  • 针对起始、中断、数据以及各种错误条件进行触发
  • 报文以颜色编码的总线信号显示,或者在解码表中显示
  • 支持在模拟和数字通道上对最多 4 个串行总线信号进行解码
  • 屏幕上串行解码与串行数据波形存在时间相关性
  • 使用标配模板测试功能,可快速进行 UART 和 RS-232/RS-422/RS-485 眼图模板测试
  • 多域图标

示波器软件

罗德与施瓦茨示波器均支持对 UART 以及 RS-232、RS-422 和 RS-485 总线的触发和解码。解码设置仅需数秒。用户能够以颜色编码的报文形式和/或在解码表中查看结果,并作详细分析。使用硬件加速触发,用户能够有效且可靠地识别错误。支持起始、中断、数据以及各种错误条件触发。

特性和优点

快速总线设置

通过应用面板在数秒内完成总线设置

通过应用面板,只需几个步骤即可配置任意特定协议。选择需要解码的总线和连接的通道,并设置正确的电平之后,就会自动开始解码。

打开灯箱

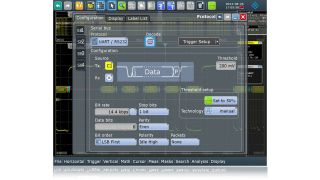

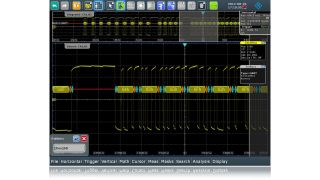

使用应用面板选择总线解码。

使用颜色编码的报文显示

报文以颜色编码的总线信号显示,或者在解码表中显示

用户可以将信号与颜色编码数据叠加,以便分析解码总线帧。地址和数据内容可以十六进制、二进制或 ASCII 格式显示。用户始终可以通过灵活的屏幕设置获得理想的浏览效果。报文也可以显示在简明表格中。

打开灯箱

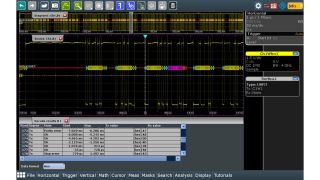

解码帧采用颜色编码。

强大的触发功能

针对起始、中断、数据以及各种错误条件执行强大的触发功能

借助特定于协议的触发,用户能够可靠地隔离协议事件和错误。罗德与施瓦茨示波器具有高捕获率,非常适合快速查找错误,以便针对特定于协议的触发结果进行解码。示波器可针对地址、数据和协议错误等特定协议内容进行基于硬件的触发。

打开灯箱

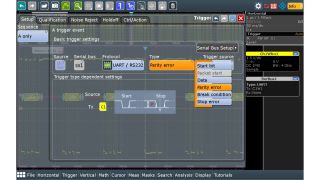

协议触发设置对话框。

可用型號

可用型號
型号
串行标准
解码表
触发
标签支持
搜索
基本单元

R&S®RTP-K2

订单号码 1337.8610.02

串行标准
UART/RS-232/RS-422/RS-485
解码表
触发
标签支持
搜索
基本单元

R&S®RTO-K2

订单号码 1329.7277.02

串行标准
UART/RS-232/RS-422/RS-485
解码表
触发
标签支持
搜索
基本单元

R&S®RTE-K2

订单号码 1326.1184.02

串行标准
UART/RS-232/RS-422/RS-485
解码表
触发
标签支持
搜索
基本单元

R&S®RTA-K2

订单号码 1335.7698.02

串行标准
UART/RS-232/RS-422/RS-485
解码表
触发
标签支持
搜索
基本单元

R&S®RTM-K2

订单号码 1335.8813.02

串行标准
UART/RS-232/RS-422/RS-485
解码表
触发
标签支持
搜索
基本单元

R&S®RTB-K2

订单号码 1333.1028.02

串行标准
UART/RS-232/RS-422/RS-485
解码表
触发
标签支持
搜索
基本单元

R&S®RTC-K2

订单号码 1335.7246.03

串行标准
UART/RS-232/RS-422/RS-485
解码表
触发
标签支持
搜索
基本单元

R&S®RTH-K2

订单号码 1325.9975.02

串行标准
UART/RS-232/RS-422/RS-485
解码表
触发
标签支持
搜索
基本单元
