History & segmented memory 软件

一般分析

History & segmented memory 软件
打开灯箱
History & segmented memory 软件
打开灯箱
History & segmented memory 软件
打开灯箱
History & segmented memory 软件
打开灯箱
历史和分段存储软件,软件 历史和分段存储软件,屏幕截图 历史和分段存储软件 历史和分段存储软件

主要特点

  • 分析错误发生之前的采集信号
  • 显著增加了嵌入式示波器的存储
  • 在超分段存储模式下具有更高的捕获率

示波器软件

R&S®RTA4000、R&S®RTE 和 R&S®RTO 标配历史和分段存储功能,R&S®RTB2000、R&S®RTM3000 和 R&S®Scope Rider 可选配历史和分段存储功能。用户可以使用所有的示波器工具(例如协议解码和逻辑通道)滚动浏览并分析之前采集的数据。在超分段存储模式下,用户可以先无缝捕获波形,然后再查看。用户几乎可以无中断地记录串行协议和脉冲序列。

特性和优点

分析错误发生之前的采集信号

历史功能确保可随时访问保存在内存中的历史波形。触发时间戳可用于进行时间关联分析。用户可使用缩放、测量、数学运算和频谱分析功能等工具来查看和分析所有已保存的信号

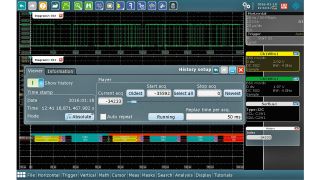

RTO2000 历史模式
打开灯箱

RTO2000 历史模式

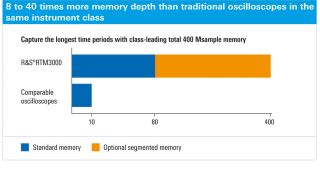

显著增加了嵌入式示波器的存储

历史和分段存储选件显著增加了嵌入式示波器的可用存储

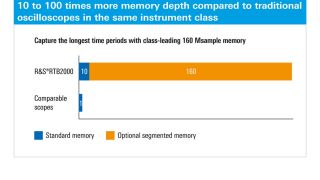

  • R&S®RTB2000:在分段存储模式下,20 Msample 标配存储增加至 160 Msample
  • R&S®RTM2000:在分段存储模式下,20 Msample 标配存储增加至 460 Msample
  • R&S®RTH ScopeRider:500 ksample 增加至 25 Msample

打开灯箱

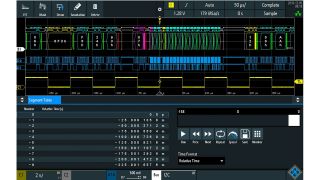

在超分段存储模式下具有更高的捕获率

超分段存储模式可缩短最小盲区时间。用户几乎可以无中断地记录串行协议和脉冲序列。在历史模式下,用户可以轻松地手动或自动浏览所有记录的分段,并借助精确的时间戳重建历史记录。

可用型號

可用型號
型号
存储
超分段存储模式
基本单元

R&S®RTH-K15

订单号码 1326.1803.02

存储
50 Msample
超分段存储模式
基本单元

R&S®RTB-K15

订单号码 1333.1040.02

存储
160 Msample
超分段存储模式
基本单元

R&S®RTM-K15

订单号码 1335.8907.02

存储
460 Msample
超分段存储模式
基本单元

相关视频

RTB2000 - 10 Msample memory

R&S®RTB2000 – 10 Msample 存储深度,全带宽下采集时间更长

R&S®RTB2000 实现深存储:每个通道的存储深度达到 10 Msample,在交织模式下存储深度可达 20 Msample。

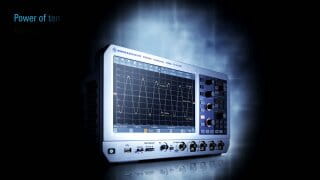

RTM3000 - Memory Preview

R&S®RTM3000 – 40 Msample(标配),80 Msample(交织模式)

R&S®RTM3000 实现深存储:每个通道的存储深度达到 40 Msample,在交织模式下存储深度可达 80 Msample。
