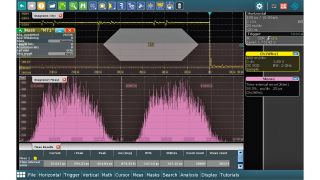

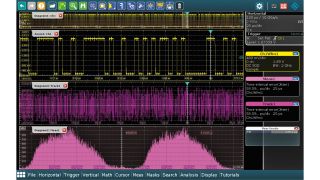

Clock data recovery oscilloscope software, SoftwareClock data recovery oscilloscope software, Screenshot

主要特点

  • 针对嵌入式时钟的实时时钟数据恢复
  • 支持基于硬件的串行码型触发

示波器软件

R&S®RTO-K13 实时时钟数据恢复 (CDR) 选件可用于激活集成到 R&S®RTO2000 数字示波器中的硬件 CDR 功能。它提供针对最高 5.0 Gbps 的不归零 (NRZ) 串行数据的实时时钟恢复。恢复的时钟可用于触发和抖动分析。

特性和优点

时钟数据恢复,以便实时分析嵌入式时钟信号

R&S®RTO-K13 时钟数据恢复选件可以简化嵌入式时钟信号的特性分析。该选件是 R&S®RTO 的独特数字触发架构的一部分,支持实时时钟恢复:

  • 长时间的连续眼图和直方图测量,无需后处理
  • 全捕获率下的 CDR 功能,不会限制示波器功能
  • 显示和分析已恢复的时钟信号

打开灯箱

串行码型触发

将 R&S®RTO 与基于硬件的时钟数据恢复选件或并行时钟信号相结合,触发高达 16 字节的任意串行接口报文码型,且比特率介于 100 kbit 至 2.5 Gbit。示波器提供所有分析选件。例如,用户可以使用抖动测量确定具体比特序列对协议时钟的影响。

打开灯箱

可用型號

可用型號
型号
解码表
恢复时钟眼图
恢复时钟抖动
恢复时钟触发
显示恢复时钟
基本单元
R&S®RTO-K13

R&S®RTO-K13

订单号码 1329.7383.02

解码表
恢复时钟眼图
恢复时钟抖动
恢复时钟触发
显示恢复时钟
基本单元
R&S®RTO6-K13

R&S®RTO6-K13

订单号码 1801.6835.02

解码表
恢复时钟眼图
恢复时钟抖动
恢复时钟触发
显示恢复时钟
基本单元

了解详情
