Jitter analysis 示波器软件

一般分析

Jitter analysis 示波器软件
打开灯箱
Jitter analysis 示波器软件
打开灯箱

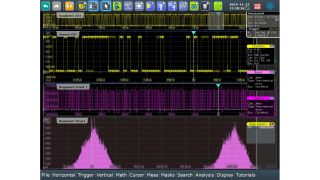

Jitter analysis oscilloscope software, Software Jitter analysis oscilloscope software, Screenshot

主要特点

  • 自动化抖动测量
  • 抖动向导便于轻松配置抖动测量
  • 显示轨迹、长期趋势或直方图等测量结果
  • 可针对轨迹进行 FFT 详细分析
  • 多域图标

示波器软件

借助 R&S®RTO-K12 抖动分析选件,标准 R&S®RTO 固件可实现功能扩展,增加了丰富的测量、分析和可视化工具,可用于信号完整性分析以及抖动特性分析。强大的抖动分析包括通过抖动向导进行简单设置。

特性和优点

精确的结果

R&S®RTO 示波器非常适用于抖动测量。灵敏的宽带低噪声前端结合高精度单核模数转换器,可确保精确的测量结果。R&S®RTO 示波器的另一个优势在于丰富的分析选件。例如,对周期间抖动的轨迹进行 FFT 分析,可以确定干扰频率。

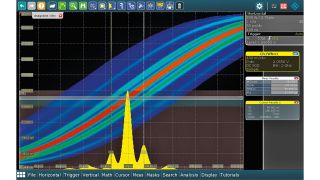

精确的结果
打开灯箱

精确的结果

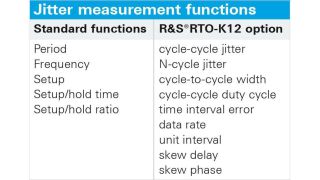

强大的分析选件

R&S®RTO 示波器提供多种图形显示选件,简化对信号的分析。示波器提供下列显示和分析选件:

  • 长期趋势
  • 轨迹
  • 直方图
  • 轨迹 FFT 分析

打开灯箱

可针对轨迹进行 FFT 详细分析

通过这些功能,可以对测量结果的轨迹曲线进行 FFT 分析。还可以推导出其他测量参数,例如通过抖动分析获得的干扰源频率。

打开灯箱

可用型號

可用型號
型号
时钟数据恢复(软件)
基本单元

R&S®RTP-K12

订单号码 1337.8656.02

时钟数据恢复(软件)
基本单元

R&S®RTO-K12

订单号码 1329.7377.02

时钟数据恢复(软件)
基本单元

R&S®RTO6-K12

订单号码 1801.6829.02

时钟数据恢复(软件)
基本单元
