Advanced Eye 分析

一般分析

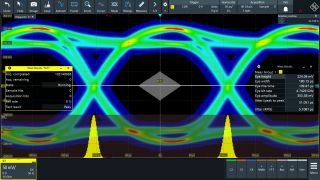

Advanced Eye 分析
打开灯箱
高级眼图分析

主要特点

  • 可配置的 16 Gbps 硬件时钟数据恢复

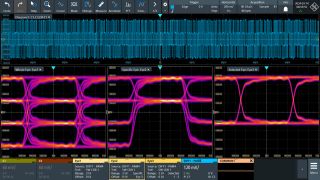

  • 最多四个眼图
  • 多种高级自动化眼图测量
  • 综合全面的模板库
  • 可与实时差分数学运算和实时去嵌相结合

简介

R&S®RTP-K136/137 选件是一款重要的信号完整性测量工具,能够对数据信号进行眼图分析。连续运行基于硬件的时钟数据恢复 (CDR),可以对捕获的数据流进行位分片。CDR 支持的最大标称数据率高达 8 Gbps 或 16 Gbps,具体取决于所选选件。模板测试、直方图测试或自动化眼图测量等标准工具可用于分析眼图。强大的眼纹功能有助于跟踪所捕获波形中的模板测试问题。

特性和优点

可配置的硬件 CDR

可配置的 8 Gbps 或 16 Gbps 硬件 CDR 支持连续分析

R&S®RTP 提供独特的硬件时钟数据恢复 (HW-CDR) 功能,可以使用一个嵌入式时钟对串行数据流进行位分片。您可以配置标称位速率(范围为 21 kbps 至 16 Gbps)、跟踪带宽或相对带宽。R&S®RTP 的硬件 CDR 持续跟踪输入信号的漂移。传统眼图使用软件中的 CDR 功能以作后处理。这不仅耗时,还需要考虑每次波形采集的 PLL 稳定时间。

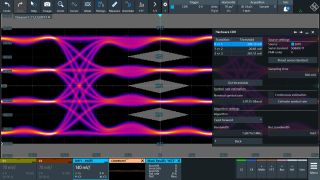

可配置 HW-CDR 的设置对话框
打开灯箱

可配置 HW-CDR 的设置对话框

R&S®RTP 的硬件时钟数据恢复功能可进行配置,并且支持高达 16 Gbps 的数据率以进行数据眼图分析

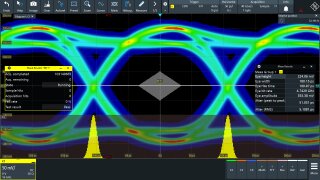

自动化眼图测量

多种高级自动化眼图测量

自动化测量确保轻松进行高级眼图分析。您可以选择合适的眼图测量(共 15 类),并利用统计、轨迹、直方图和趋势显示等所有标准分析功能。

自动化眼图测量
打开灯箱

自动化眼图测量

提供一组高级自动化眼图测量以供选择

综合全面的模板库

综合全面的模板库

直方图和模板测试功能可用于执行进一步分析。综合全面的模板库也可用于眼图分析。根据 USB、PCI Express 和 SATA 等特定标准选择合适的预定义模板。

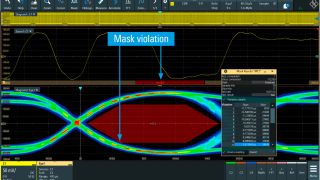

眼纹

跟踪模板测试问题

使用眼纹功能识别原始捕获波形中的模板测试问题。模板测试问题列表有助于对违反模板的波形部分应用缩放窗口。这能够更加轻松地确定信号完整性问题的根本原因。

可用型號

可用型號
型号
最大数据率
基本单元

R&S®RTP-K136

订单号码 1803.6561.02

最大数据率
8 Gbps
基本单元
