主要特点

  • 计算随机抖动/噪声、数据相关抖动/噪声、码间干扰/码间干扰噪声或周期性抖动/噪声等常见的抖动和噪声成分
  • 采用信号模型方法,提供高度准确的结果
  • 显示阶跃响应和误码率浴盆曲线
  • 综合眼图包含确定性抖动和噪声
  • 以直方图、轨迹或频谱视图的形式显示抖动和噪声成分
  • 多域图标

示波器软件

详细了解发射机接口的各抖动和噪声成分,以对抖动和噪声容许量进行特性测量或确定故障的根本原因。R&S®RTO/RTP-K133 和 K134 选件可以分解常见的抖动和噪声成分,例如随机抖动/噪声 (RJ/RN) 和确定性抖动/噪声(包括数据相关抖动/噪声 (DDJ/DDN) 或周期性抖动/噪声 (PJ/PN))。

特性和优点

抖动和噪声分解

结果准确

罗德与施瓦茨抖动和噪声分解算法先计算阶跃响应,该响应对发射系统的确定性行为进行全面的特性测量。即使信号序列相对较短,用户也可以获得准确的测量结果。

抖动和噪声分解
打开灯箱

抖动和噪声分解

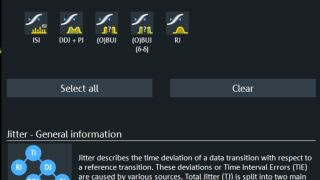

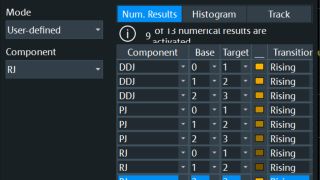

选择所需的抖动和噪声成分以进行计算

提供更多结果

详细了解设计

罗德与施瓦茨的抖动和噪声分解选件具备新功能,有助于详细了解信号特性和故障的根本原因:

  • 它能够重建包含周期性成分和数据相关成分的综合眼图。
  • 它可针对选定的抖动和噪声成分计算并显示误码率浴盆曲线。
  • 它可计算并显示系统特性阶跃响应。它支持以直方图、轨迹或频谱视图的形式显示各抖动和噪声成分。

提供更多结果
打开灯箱

提供更多结果

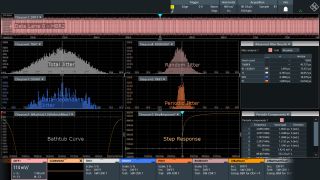

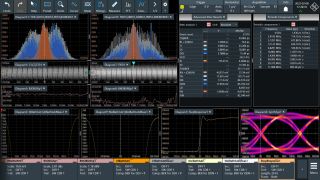

显示 8 Gbps PCIe Gen3 信号的阶跃响应、各抖动成分、抖动频谱、综合数据眼图和误码率浴盆曲线结果。

自动设置

快速获得结果

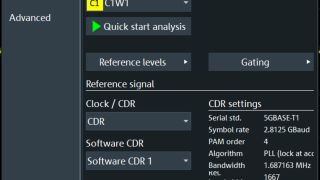

使用“快速启动分析”功能开始进行分解计算。该功能自动配置装置,并显示默认的测量和图表设置。进行单独配置时,帮助对话框可详细说明设置参数和设置进度。

自动设置
打开灯箱

自动设置

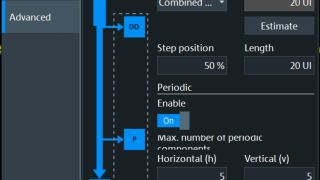

使用快速启动功能,或通过三个对话框步骤定义设置。

可用型號

可用型號
型号
最大分析带宽
抖动成分
结果显示
附加结果
基本单元

R&S®RTO-K134

订单号码 1802.9450.02

最大分析带宽
6 GHz
抖动成分
噪声、抖动
结果显示
表, 直方图, 轨迹, 频谱
附加结果
误码率浴盆曲线、阶跃响应、综合数据眼图
基本单元

R&S®RTO6-K134

订单号码 1801.7677.02

最大分析带宽
6 GHz
抖动成分
噪声、抖动
结果显示
表, 直方图, 轨迹, 频谱
附加结果
误码率浴盆曲线、阶跃响应、综合数据眼图
基本单元

R&S®RTP-K133

订单号码 1800.6860.02

最大分析带宽
16 GHz
抖动成分
抖动
结果显示
表, 直方图, 轨迹, 频谱
附加结果
误码率浴盆曲线、阶跃响应、综合数据眼图
基本单元

R&S®RTO-K133

订单号码 1801.4832.02

最大分析带宽
6 GHz
抖动成分
抖动
结果显示
表, 直方图, 轨迹, 频谱
附加结果
误码率浴盆曲线、阶跃响应、综合数据眼图
基本单元

R&S®RTO6-K133

订单号码 1801.6906.02

最大分析带宽
6 GHz
抖动成分
抖动
结果显示
表, 直方图, 轨迹, 频谱
附加结果
误码率浴盆曲线、阶跃响应、综合数据眼图
基本单元
使用罗德与施瓦茨示波器进行高级抖动分析

应用视频:使用罗德与施瓦茨示波器进行高级抖动分析

基于信号模型的创新抖动分解算法

解决方案

模拟/数字设计和测试

更多信息

高速数字接口测试

更多信息

请求信息

如果您有任何疑问或需要了解更多信息,请填写此表格,我们会尽快回复您。
