Deembedding 示波器软件

一般分析

Deembedding 示波器软件
打开灯箱
Deembedding 示波器软件
打开灯箱
Deembedding 示波器软件
打开灯箱
Deembedding 示波器软件
打开灯箱
Deembedding oscilloscope software, Software Deembedding oscilloscope software, Screenshot Deembedding oscilloscope software, Screenshot Deembedding in realtime for fast results

主要特点

  • 实时去嵌,快速获取结果
  • 校正串联信号路径
  • 针对校正信号进行触发
  • 所有触发类型支持全带宽

实时去嵌,快速获取结果

基于 S 参数针对信号路径进行实时去嵌。即使激活实时去嵌,用户仍然能够获得出色的波形捕获率,并针对仪器全带宽范围内已补偿信号进行精确触发。

特性和优点

实时去嵌,快速获取结果

直接在模数转换器后采用灵活的滤波器结构,提升了传统的示波器去嵌功能。这可以确保实时波形校正。在后处理过程中对捕获的波形进行去嵌操作时,可在测量速度和仪器响应能力方面带来优势。此外,此功能还支持触发校正波形。

实时去嵌架构
打开灯箱

实时去嵌架构

图片展示了有损信号路径的信号形状变化。实时去嵌可以重构原始信号。

校正串联信号路径

串联信号路径模块可用于进行去嵌。该模块可使用 S 参数进行描述;S 参数可通过模拟获取,或使用矢量网络分析仪进行测量。去嵌软件会自动针对整体系统响应计算校正滤波器。

构建信号路径的菜单
打开灯箱

构建信号路径的菜单

通过图形化形式添加信号路径模块,轻松描述信号路径。可以使用 S 参数描述每个模块。

针对校正信号进行触发

用户可以针对校正波形进行触发,并对真实设备特性进行调试。独特的数字触发系统使用模数转换器和实时去嵌滤波器处理之后的采样点进行触发判定。由于测量路径的失真影响已被消除,因此可以针对真正的设备信号进行触发。

校正不同的电缆长度
打开灯箱

校正不同的电缆长度

分别使用 20 cm 和 2 m 长电缆测量差分信号,获得不同的上升时间和偏移值。开启去嵌功能,校正损耗、上升时间和偏移。

所有触发类型支持全带宽

除边沿触发外,脉冲宽度、欠幅以及建立/保持等高级触发类型均支持 R&S®RTP 全带宽。这样能够快速隔离高频信号分量。触发灵敏度范围为 0 div 至 5 div,在高分辨率模式下,触发分辨率可扩展至最高 16 位。用户能够可靠地触发微小的信号细节。

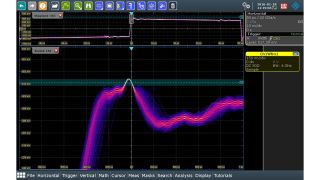

稳定触发不超过 50 ps 的脉冲宽度
打开灯箱

稳定触发不超过 50 ps 的脉冲宽度

稳定触发脉冲宽度小于 50 ps 的信号过冲

可用型号

可用型号
型号
实时校正
针对校正信号进行触发
RT-ZM 探头补偿
基本单元

R&S®RTP-K121

订单号码 1326.3064.02

实时校正
针对校正信号进行触发
RT-ZM 探头补偿
基本单元

R&S®RTP-K122

订单号码 1326.3070.02

实时校正
针对校正信号进行触发
RT-ZM 探头补偿
基本单元

R&S®RTO-K121

订单号码 1326.3058.02

实时校正
针对校正信号进行触发
RT-ZM 探头补偿
基本单元

R&S®RTO6-K121

订单号码 1801.6887.02

实时校正
针对校正信号进行触发
RT-ZM 探头补偿
基本单元
