PCI Express 1.1/2.0/3.0 示波器软件

一致性测试

PCI Express 1.1/2.0/3.0 示波器软件
打开灯箱
PCI Express 1.1/2.0/3.0 示波器软件
打开灯箱
PCI Express 1.1/2.0/3.0 oscilloscope software, SoftwarePCI Express 1.1/2.0/3.0 oscilloscope software, Screenshot

主要特点

  • 针对 PCI Express 1.1、2.0 和 3.0 系统和插卡的测试解决方案
  • 基于符合 PCI-SIG 标准的后处理分析软件
  • 测试信号质量和参考时钟
  • 分步向导指南
  • 清晰且全面的测试记录
  • 多域图标
  • HD 16 位

示波器软件

罗德与施瓦茨提供针对 PCI Express Gen 1.1、2.0 和 3.0 接口的自动化一致性测试解决方案。罗德与施瓦茨 ScopeSuite 一致性测试软件的测试向导通过分步说明为用户提供指导。该选件支持插卡以及系统主板测试。它基于符合 PCI-SIG 标准的后处理分析软件,并且使用 PCI-SIG 测试夹具。可配置的测试报告用于记录测试结果。

特性和优点

完整的测试解决方案

完整的测试解决方案涵盖 PCI Express Gen 1.x、2.0 和 3.0 接口(主板和插卡)的所有相关测试用例。集成式发生器选件 RTO/RTP-B6 在不同的一致性测试模式下切换被测设备。PCI SIG 机构 (www.pcisig.com) 提供测试夹具。

打开灯箱

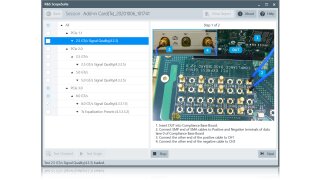

在 R&S®ScopeSuite 自动化一致性测试软件首页,选择 PCIe 一致性测试项目

提供测试步骤指南,易于使用

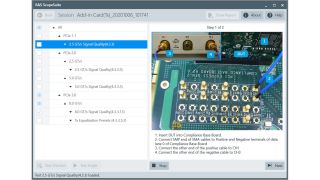

R&S®ScopeSuite 一致性软件为执行 PCIe 一致性测试提供全面的测试指南。借助详细的图示说明,用户可以轻松地将示波器和探头连接到测试夹具和被测设备。

打开灯箱

逐步完成自动化测试程序,并充分利用分步指南

强大的报告功能

测试结果详尽记录在 R&S®ScopeSuite 创建的报告中。测试报告可以包含数字结果数据或示波器屏幕截图,具体取决于用户的偏好设置。可用的输出格式包括 PDF、DOC 和 HTML。

打开灯箱

详细报告包括设置参数、测量结果和屏幕截图

可用型號

可用型號
型号
最小带宽
描述
基本单元
R&S®RTP-K81

R&S®RTP-K81

订单号码 1337.8885.02

最小带宽
6 GHz
描述
按照 PCI-SIG 规范针对 PCI Express 接口 Gen 1.x/2.0(系统和插卡)的自动化一致性测试解决方案
基本单元
R&S®RTO-K81

R&S®RTO-K81

订单号码 1326.0920.02

最小带宽
6 GHz
描述
按照 PCI-SIG 规范针对 PCI Express 接口 Gen 1.x/2.0(系统和插卡)的自动化一致性测试解决方案
基本单元
R&S®RTO6-K81

R&S®RTO6-K81

订单号码 1801.6964.02

最小带宽
  6 GHz
描述
按照 PCI-SIG 规范针对 PCI Express 接口 Gen 1.x/2.0(系统和插卡)的自动化一致性测试解决方案
基本单元
R&S®RTP-K83

R&S®RTP-K83

订单号码 1800.6954.02

最小带宽
13 GHz
描述
按照 PCI-SIG 规范针对 PCI Express 接口 Gen 1.x/2.0/3.0(系统和插卡)的自动化一致性测试解决方案
基本单元
规格
推荐的配置R&S®RTP-K81;- RTP064
- RTP-B6
- 2 x SMP 转 SMA 电缆
- PCI-SIG CBB2.0 测试夹具(用于插卡)
- PCI-SIG CLB2.0 测试夹具(用于系统)
R&S®RTP-K83;- RTP134
- RTP-B6
- 2 x SMP 转 SMA 电缆
- 2 x RT-ZM 模块化探头(最小 13 GHz)
- 2 x ZMA40 探头尖端
- PCI-SIG CBB3.0 测试夹具(用于插卡)
- PCI-SIG CLB3.0 测试夹具(用于系统)
R&S®RTO-K81;- RTO2064
- RTO-B6
- 2 x SMP 转 SMA 电缆
- PCI-SIG CBB2.0 测试夹具(用于插卡)
- PCI-SIG CLB2.0 测试夹具(用于系统)

应用视频

Application video: Eye diagram analysis of the PCIe Gen 3 CPU interface
PCIe Gen 3 CPU 接口的眼图分析

深度分析高性能 CPU PCIe Gen 3 接口的眼图。

更多信息

Signal integrity debugging
信号完整性调试

使用 USB 3.1 Gen1 设备进行展示。

更多信息

需要更多信息。
