MultiGBASE-T1 ethernet 软件一致性测试

MultiGBASE-T1 ethernet 软件一致性测试
打开灯箱
R&S®MultiGBASE-T1 以太网软件一致性测试,软件

主要特点

  • MultiGBASE-T1 (2.5/5/10G) 以太网接口测试解决方案
  • 符合 IEEE 802.3ch
  • 预先定义的自动化测试步骤,包含分步指南
  • 清晰且完整的测试记录
  • 完整的测试解决方案,包含合适的夹具
  • 多域图标

MultiGBASE-T1 一致性测试软件

R&S®RTO-K88(最高 2.5G)和 R&S®RTP-K88 选件为 MultiGBASE-T1 提供了符合 IEEE 802.3ch 规范的自动化一致性测试解决方案。R&S®ScopeSuite 一致性测试软件向导通过分步说明为用户提供指导。自动化测试序列便于快速运行。综合测试报告记录含屏幕截图在内的所有结果。完整的测试解决方案利用 R&S®RT-ZF7A 测试夹具和兼容的矢量网络分析仪。

特性和优点

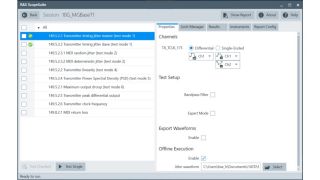

包括所有的相关测试

完整的测试解决方案涵盖 IEEE 802.3ch 规定的所有相关测试用例。R&S®RT-ZF7A 测试夹具可保证准确探测信号。

包括所有的相关测试
打开灯箱

包括所有的相关测试

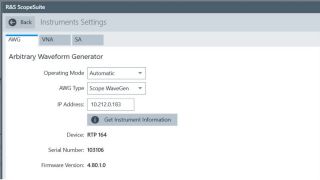

全自动化或手动测试

R&S®ScopeSuite 软件的测试向导提供步骤指南。所用测试为全自动化测试。此外,可以执行单个测试以进行高效调试。限值编辑器可用于分别调整符合不同标准的测试限值。

全自动化或手动测试
打开灯箱

全自动化或手动测试

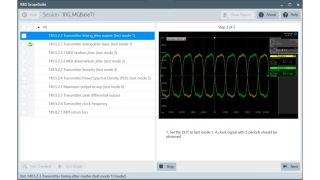

步骤指南

车载以太网一致性测试提供详细的图示说明,指导用户轻松将示波器和探头正确连接到测试夹具和被测设备。这可以确保使用更加简单,并且减少可能出现的设置错误。

步骤指南
打开灯箱

步骤指南

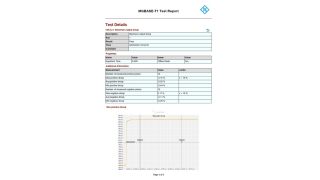

强大的报告功能

测试结果详尽记录在 R&S®ScopeSuite 创建的报告中。测试报告可以包含数字结果数据或示波器屏幕截图,具体取决于用户的偏好设置。报告格式包括 PDF、DOC 和 HTML。

强大的报告功能
打开灯箱

强大的报告功能

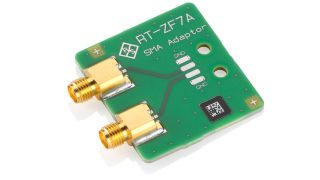

完整解决方案

R&S®RT-ZF7A 测试夹具可保证准确探测信号。一致性测试设置涵盖需要使用网络分析仪的测试用例。罗德与施瓦茨提供包含 R&S®ZND 矢量网络分析仪(最高 8 GHz)的完整解决方案。R&S®ScopeSuite 一致性测试软件全面支持所有仪器,以提供全集成式一致性测试解决方案。

完整解决方案
打开灯箱

完整解决方案

可用型號

可用型號
型号
最小带宽
描述
基本单元

R&S®RTO-K88

订单号码 1801.4526.02

最小带宽
4 GHz
描述
按照 IEEE 802.3ch 规范针对 MultiGBASE-T1 以太网(最高 2.5G)的自动化一致性测试解决方案
基本单元

R&S®RTP-K88

订单号码 1800.6725.02

最小带宽
4 GHz
描述
按照 IEEE 802.3ch 规范针对 MultiGBASE-T1 以太网的自动化一致性测试解决方案
基本单元

R&S®RTO6-K88

订单号码 1801.7890.02

最小带宽
4 GHz
描述
按照 IEEE 802.3ch 规范针对 MultiGBASE-T1 以太网(最高 2.5G)的自动化一致性测试解决方案
基本单元
规格
推荐的配置 R&S®RTO-K88 用于 2.5G
- R&S®RTO2044;
- R&S®RT-ZF7A 以太网测试夹具 - 2 x SMA 电缆 - R&S®ZND 或 R&S®ZNB 网络分析仪(最低 8 GHz)
R&S®RTP-K88 - R&S®RTP044(用于 2.5G)
- R&S®RTP084(用于 5G)
- R&S®RTP164(用于 10G)
- R&S®RT-ZF7A 以太网测试夹具(用于 2.5G)
- 相关测试夹具/适配器(用于 5G/10G)
- 2 x SMA 电缆
- R&S®ZND 或 R&S®ZNB 网络分析仪(最低 8 GHz)

可用选项

矢量网络分析仪
产品
描述
R&S®ZND-K1

订单号码 1328.5306.02

描述

扩展频率范围,单向,8.5 GHz

R&S®ZND-K6

订单号码 1328.5329.02

描述

完整测试装置,双向,8.5 GHz

附件
产品
描述
R&S®RT-ZF7A

订单号码 1801.4126.02

描述

SMA 适配器

用于将汽车电子连接器转为 SMA 连接器的高精度适配板
