1000BASE-T1 ethernet software

Compliance test

1000BASE-T1 ethernet software
打开灯箱
1000BASE-T1 Ethernet software, Software

主要特点

  • Test solution of 1000BASE-T1 Ethernet interfaces
  • Predefined, automated test steps
  • Step-by-step wizard for user guidance
  • Meets IEEE 802.3bp specification
  • Complete test solution including fixture and clock divider
  • Multi Domain Icon
  • HD 16 bit

Oscilloscope software

The R&S®RTO-K87 and R&S®RTP-K87 options offer an automated test solution for 1000BASE-T1 according to the IIEEE 802.3bp specification. The test wizard guides the user via illustrated step-by-step instructions. The complete test solution includes fixture and clock divider. The R&S Scope Suite runs on scope or separate PC.

特性和优点

Includes all relevant tests

The complete test solution covers all relevant test cases of the IEEE 802.3bp specification for the1000BASE-T1. A test fixture is available for signal access via a differential probe for accurate signals.

打开灯箱

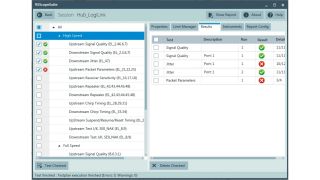

Fully automatic or manual tests

The R&S®ScopeSuite has a test wizard for guided steps. The tests used are fully automatic. In addition, single tests can be carried out for efficient debugging. The
limit editor lets you individually adjust standard-specific test limits.

打开灯箱

Ease-of-use with guided test steps

The Ethernet compliance test is a fully guided test. Detailed, image-based instructions make it easy to correctly connect the oscilloscope and the probes to the test fixture and the device under test. This increases the ease-of-use and reduces potential setup errors.

Strong reporting functionality

The test results are fully documented in a report created by the R&S®ScopeSuite. Depending on the user’s preference, the test report can include numerical result data or oscilloscope screen shots. The available output formats are PDF, DOC and HTML.

Detailed report including setup parameters, measurement results and screenshots
打开灯箱

Detailed report including setup parameters, measurement results and screenshots

Test solution includes oscilloscope, VNA, Waveform generator and test fixtures

The compliance test setup includes test cases that need a waveform generator and a network analyzer. R&S offers a complete solution with the R&S®RTO-B6 waveform generator and the R&S®ZND Vector Network Analyzer. The R&S®ScopeSuite compliance test software fully supports all instruments for a fully integrated compliance test solution.

打开灯箱

可用型號

可用型號
型号
Min. bandwidth
Description
Base unit
R&S®RTO-K87

R&S®RTO-K87

订单号码 1337.8591.02

Min. bandwidth
2 GHz
Description
Automated compliance test solution for 1000BASE-T1 Ethernet according to the IEEE 802.3bp specification
Base unit
R&S®RTP-K87

R&S®RTP-K87

订单号码 1800.6554.02

Min. bandwidth
2 GHz
Description
Automated compliance test solution for 1000BASE-T1 Ethernet according to the IEEE 802.3bp specification
Base unit
R&S®RTO6-K87

R&S®RTO6-K87

订单号码 1801.6970.02

Min. bandwidth
2 GHz
Description
Automated compliance test solution for 1000BASE-T1 Ethernet according to the IEEE 802.3bp specification
Base unit
规格
Recommended configurationR&S®RTO-K87- RTO2024
- RTO-B6 (for tests with distruber)
- RTO-B4
- RT-ZF8 Ethernet test fixture
- RT-ZF6 Frequency converter
- 2 x SMA cables
- ZND or ZNB Network Analyser (option K5 or K6 required)
R&S®RTP-K87- RTP044
- RTP-B6 (for tests with distruber)
- RT-ZF8 Ethernet test fixture
- RT-ZF6 Frequency converter
- 2 x SMA cables
- ZND or ZNB Network Analyser (option K5 or K6 required)

可用选项

Software options
产品
描述

订单号码 1329.7419.02

描述

High definition mode.

Extras
产品
描述
R&S®RT-ZF2

订单号码 1317.5522.02

描述

Test fixture for 10/100/1000BASE-T, 10G-BaseT and BroadR-Reach Ethernet

Supported by R&S®RTO-K22, R&S®RTO-K23 and R&S®RTO-K24 Ethernet compliance test options.

R&S®RT-ZF6

订单号码 1337.8579.02

描述

Frequency converter board

for 1000BASE-T1 compliance test

R&S®RT-ZF7A

订单号码 1801.4126.02

描述

SMA Adapter

High precision adapter board from automotive connector to SMA

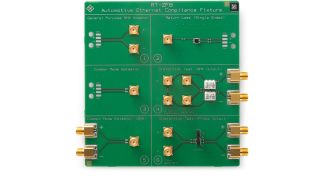

R&S®RT-ZF8

订单号码 1801.3694.02

描述

Automotive Ethernet Compliance Fixture

Test fixture for 100BASE-T1 and 1000BASE-T1 compliance testing according to IEEE and OPEN TC8

R&S®RTO-B4

订单号码 1304.8305.02

描述

OCXO 10 MHz

Increase time base accuracy to ±0.02 ppm after calibration

订单号码 1329.7054.02

描述

Arbitrary waveform generator

Add 2-channel 500 MSample/s waveform generator and 8-channel pattern generator

R&S®ZND-K5

订单号码 1328.5312.02

描述

Full test set, Base Unit, bidirectional, 4.5GHz

订单号码 1410.4609.02

描述

Active differential probe, 3.0 GHz, Rohde & Schwarz probe interface

应用视频

1000Base-T1 compliance testing

1000Base-T1 一致性测试

使用 R&S®RTO 和 R&S®ZND 的 1000Base-T1 一致性测试指南。

1000BASE-T1 Compliance Testing Test Mode 2

1000BASE-T1 一致性测试

测试模式 2:MDI 抖动和时钟频率

1000BASE-T1 Compliance Testing Test Mode 2

1000BASE-T1 一致性测试

测试模式 5:发射功率谱密度 (PSD)、功率电平和峰值差分输出

1000BASE-T1 Compliance Testing Test Mode 6: Maximum output droop

1000BASE-T1 一致性测试

测试模式 6:最大输出跌落

1000BASE-T1 Compliance Testing Test Mode 4: Transmitter Distortion Test with Disturber

1000BASE-T1 一致性测试

测试模式 4:干扰发射失真测试
