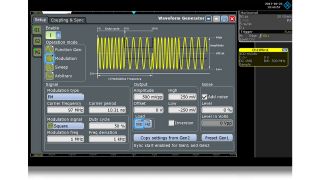

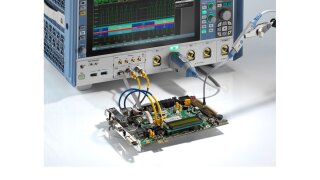

Arbitrary waveform generator oscilloscopes, Screenshot Arbitrary waveform generator oscilloscopes, Application Image Arbitrary waveform generator oscilloscopes, Back view

主要特点

  • R&S®RTP、R&S®RTO2000 和 R&S®RTE 均可以升级为配备一个任意波形发生器
  • 使用本地信号测试设备
  • 单端和差分接口激励
  • 使用 R&S®B6 选件执行全自动化一致性测试
  • 多域图标

简介

具有 14 位分辨率的任意波形和码型发生器,2 个模拟通道,8 个数字通道,100 MHz 带宽,每通道存储深度为 40 Msample,500 Msample/s 采样率。波形和码型可以 CSV 文件形式导入,也可从示波器波形中复制。在输出信号前,用户可以先预览,以快速检查信号正确性。

特性和优点

增强 R&S®RTP、R&S®RTO2000 和 R&S®RTE 示波器性能

R&S®RTP、R&S®RTO2000 和 R&S®RTE 示波器均可升级为配备一个全集成式任意波形和码型发生器。此发生器具有 2 个模拟通道、8 个数字通道、高达 100 MHz 的带宽、500 Msample/s 采样率和 14 位分辨率,并且可用作码型发生器、函数发生器或调制发生器。它适用于教学、设计和研发。

打开灯箱

单端和差分接口激励

如需测试差分设备,发生器可以彼此耦合和偏移。耦合模式下的幅度和相位偏移功能可确保模拟理想和非理想条件。差分放大器或 I/Q 混频器等差分设备可针对幅度减损和相位不平衡进行测试。

打开灯箱

使用本地信号测试设备

使用真实信号测试设备,是测试设计余量的全新方法。任意波形发生器可输出示波器上捕获的波形。用户可以更改幅度和偏移电平来操作捕获的波形,或将其与噪声叠加,以便根据设计标准评估设备。

打开灯箱

全自动化一致性测试

B6 任意波形发生器可以执行全自动化一致性测试,无需使用外部信号源。例如,R&S®ScopeSuite 可以控制波形发生器,并提供以太网一致性测试需要的干扰信号。因此,R&S®RTO 和 R&S®RTP 可提供极其紧凑的一致性测试解决方案。

打开灯箱

可用型號

可用型號
型号
模拟通道
数字通道
带宽
采样率
分辨率
基本单元

R&S®RTE-B6

订单号码 1326.3012.02

模拟通道
2
数字通道
8
带宽
100 MHz
采样率
500 Msample/s
分辨率
14 bit
基本单元

R&S®RTO-B6

订单号码 1329.7054.02

模拟通道
2
数字通道
8
带宽
100 MHz
采样率
500 Msample/s
分辨率
14 bit
基本单元

R&S®RTP-B6

订单号码 1333.2418.02

模拟通道
2
数字通道
8
带宽
100 MHz
采样率
500 Msample/s
分辨率
14 bit
基本单元

R&S®RTO6-B6

订单号码 1801.6758.02

模拟通道
2
数字通道
8
带宽
100 MHz
采样率
500 Msample/s
分辨率
14 bit
基本单元

R&S®MXO4-B6

订单号码 1335.4147.02

模拟通道
2
数字通道
-
带宽
100 MHz
采样率
500 Msample/s
分辨率
18 bit
基本单元
