R&S®VS5400 电话服务器

主要特点

兼容 ED-137 标准，提供 SIP 支持
SIP 注册和代理功能
集成式会话边界控制功能
呼叫路由和管理
支持各种编解码器之间的转码

获取报价

将电话服务集成到 VCS 环境

R&S®VS5400 电话服务器可以连接语音通信系统 (VCS) 环境和标准电话系统。此服务器支持管制员席位系统 (CWP)、IP 电话和其他互连 SIP 中继之间的通信。服务器还可为 CWP、IP 电话以及通过 CERTIUM GATEWAYS 连接的传统设备提供媒体会议资源。此服务器是 CERTIUM 体系中 VCS 子系统的主要组件之一，能够在给定拓扑中协调所有 IP 呼叫并管理流量。

快速链接

可用选项

特性和优点

管理电话

VCS 中的 VoIP 物流中心。

R&S®VS5400 丰富了其余 VCS 组件提供的功能。此服务器在提供重要资源方面发挥核心作用，例如交叉耦合呼叫和建立媒体会议。作为 RTP 代理，R&S®VS5400 电话服务器平台可为 VoIP SIP 电话提供电话通信和语音记录功能。

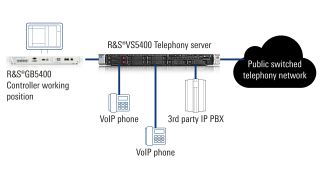

**VCS 电话的中心集线器** - R&S®VS5400 可连接 SIP 电话用户、CWP 和传统线路上的用户，以进行实时媒体会议。

连接各个系统

作为代理连接地对地组件

基于 IP 的语音通信系统非常复杂。R&S®VS5400 电话服务器管理来自 CWP、IP 电话和 VCS 内其他互连 SIP 中继的 VoIP 流量。此服务器在 R&S®CERTIUM 产品体系等深度集成的解决方案中充分发挥潜力。

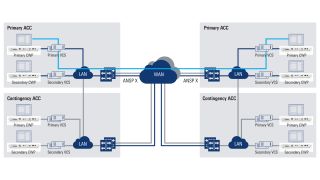

**典型的地对地呼叫。** - 在 ATC 网络中，地对地语音流量至关重要。R&S®VS5400 电话服务器确保无缝连接合作伙伴网络。

集成式边界会话控制器

确保 VCS 安全

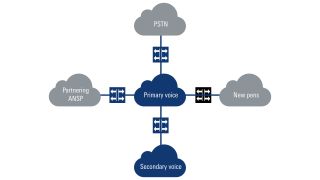

R&S®VS5400 电话服务器也可用作会话边界控制器 (SBC)。用作会话边界控制器时，R&S®VS5400 提供高恢复性和网络隔离以增强 VCS 基础设施的安全性，减小网络遭遇潜在威胁的风险，并降低特定威胁的预期影响。

四重冗余

为关键基础设施提供出色的可靠性

R&S®VS5400 电话服务器采用 CERTIUM VCS 的四重冗余架构。空中交通管制 (ATC) 通信解决方案系列依赖于多个相互备份的实例，即使因地震等原因而导致出现完全故障，也能提供整体系统恢复性能。

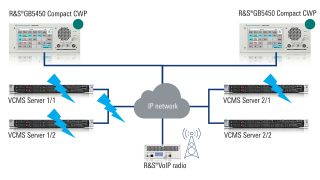

**四重冗余电话服务器配置** - 非凡的可用性 – 即使整个网络分支出现故障，另一对冗余设备也会接管连接。
