R&S®Series4200 软件定义电台

用于空中交通管制通信的甚高频/特高频电台系列

R&S®Series4200 软件定义电台
打开灯箱
R&S®Series4200 软件定义电台
打开灯箱
R&S®Series4200 软件定义电台
打开灯箱
R&S®Series4200 软件定义电台
打开灯箱
R&S®Series4200 软件定义电台
打开灯箱
R&S®Series4200 软件定义电台
打开灯箱
R&S®Series4200 软件定义电台
打开灯箱
R&S®Series4200 软件定义电台
打开灯箱

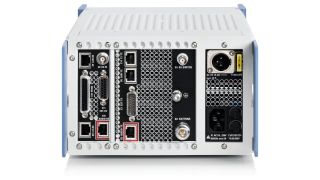

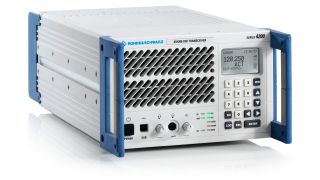

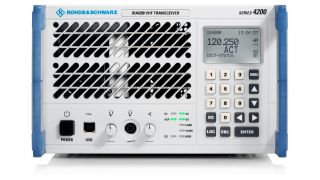

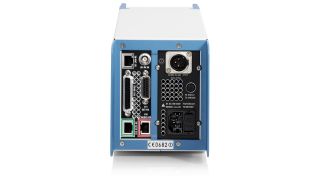

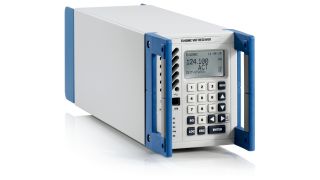

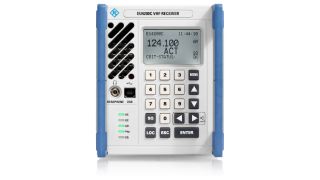

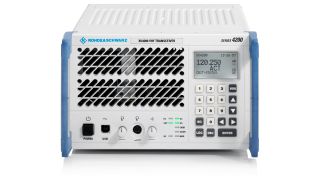

R&S®Series4200 软件定义电台,前视图 R&S®Series4200 软件定义电台,前视图 R&S®Series4200 软件定义电台,高前视图 R&S®Series4200 软件定义电台,侧视图 R&S®Series4200 软件定义电台,后视图 R&S®Series4200 软件定义电台,前视图 R&S®Series4200 软件定义电台,侧视图 R&S®Series4200 软件定义电台,后视图

主要特点

  • 甚高频频率范围介于 112 MHz 至 156 MHz
  • 特高频频率范围介于 225 MHz 至 400 MHz
  • VoIP 符合 EUROCAE ED-137C 标准
  • 检测接收机的同步传输
  • 数据传输符合 VDL 模式 2 标准

久经考验的可靠性里程碑

罗德与施瓦茨已安装 30,000 多台 ATC 电台,树立了此领域的黄金标准

全球几乎所有国家/地区都部署了 R&S®Series4200 电台。此类电台具有出色的可靠性和经过现场验证的互操作性,可与任何 IP 语音通信系统共同使用,并支持小型机场或全国范围内具备分布式无线电台站的大型系统,非常适用于空中导航服务提供商 (ANSP) 以确保可靠的语音通信系统操作。R&S®Series4200 是高级空中交通管制 (ATC) 通信套件 CERTIUM® 的一部分,此套件能够提高通信安全和效率,并超越现有标准。CERTIUM® RADIOS 软件定义电台产品非常适合与 CERTIUM® VCS 和 CERTIUM® MANAGEMENT 搭配使用。

特性和优点

经过现场验证的互操作性

可顺利集成到空中交通管制通信系统

R&S®Series4200 电台具有一流的灵活性,可部署在各种 ATC 通信场景中。
VoIP 支持功能经过现场验证并符合 ED137 标准,确保全面兼容任何语音通信系统或语音记录器。R&S®Series4200 通过专有 RCM 协议和 SNMPv3 提供远程控制和监控功能。这确保可与任何可用的监控系统无缝集成。

R&S®Series4200 机架集成
打开灯箱

R&S®Series4200 机架集成

R&S®Series4200 电台采用紧凑设计,可节省机架空间。

卓越的可靠性

最大程度地减少运营工作,确保不间断通信

罗德与施瓦茨在全球部署了 30,000 多台 R&S®Series4200 电台,为增强全球空中交通安全提供助力。这些电台展现出卓越的可靠性,可保障安全可靠的通信服务。这可以确保不间断通信,并尽可能降低维修和物流成本,从而实现真正稳定且面向未来的投资。

功能强大的可靠电台实现不间断通信
打开灯箱

功能强大的可靠电台实现不间断通信

卓越的射频特性

即使在恶劣环境中也易于使用

R&S®Series4200 电台满足甚至超越严苛的民航 ATC 要求,即使在强干扰环境中也能确保优质通信。R&S®Series4200 简化了整体系统设计,无需其他装置可能需要的多种附加系统组件。这证实了从长远角度而言,一流技术可带来显著效益。

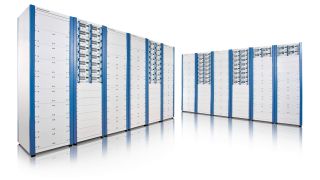

ATC 系统
打开灯箱

ATC 系统

可用型號

可用型號
型号
频率范围
发射功率
选件
体积
IP 功能

R&S®XU4200

频率范围
112 MHz 至 156 MHz
发射功率
50W
选件
AM、VDL2、ACARS
体积
19"/2,3HU
IP 功能

R&S®SU4200

频率范围
112 MHz 至 156 MHz
发射功率
50W
选件
AM、VDL2、ACARS
体积
19"/2,3HU
IP 功能

R&S®EU4200C

频率范围
112 MHz 至 156 MHz
发射功率
-(接收机)
选件
AM、VDL2、ACARS
体积
19"/4,3HU
IP 功能

R&S®XD4200

频率范围
225 MHz 至 400 MHz
发射功率
50 W
选件
调幅
体积
19"/2,3HU
IP 功能

R&S®SD4200

频率范围
225 MHz 至 400 MHz
发射功率
50 W
选件
调幅
体积
19"/2,3HU
IP 功能

R&S®ED4200C

频率范围
225 MHz 至 400 MHz
发射功率
-(接收机)
选件
调幅
体积
19"/4,3HU
IP 功能

可用选项

附件
产品
描述
R&S®ZS4200
描述

适用于 R&S®Series4200 电台的软件维修与维护工具

R&S®GA4200D
描述

带动态麦克风的耳机

R&S®GA016H1
描述

手持式麦克风

天线
产品
描述
描述

VHF/UHF coaxial dipole antenna – monitoring or communications in the frequency range between 100 MHz and 2 GHz, for stationary or mobile applications, also onboard ships.

描述

VHF coaxial dipole antenna, monitoring and communications in the frequency range from 100 MHz to 174 MHz, for stationary and mobile use, also on board ships.

描述

UHF coaxial dipole antenna, monitoring or communications in the frequency range from 225 MHz to 450 MHz, for stationary and mobile use, also onboard ships.
