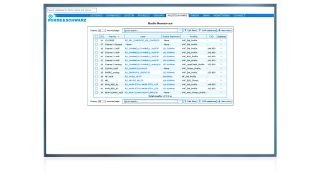

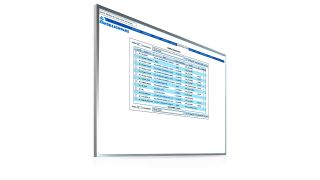

R&S®RS5400 无线电服务器

主要特点

四重冗余架构
Climax 动态延迟补偿
语音流聚合
M+N 无线电冗余
最佳信号选择

获取报价

协调远程无线电装置中的语音流

R&S®RS5400 无线电服务器与 VoIP、VCMS 和 NTP 服务器相结合，可为 CERTIUM 体系中的语音通信系统 (VCS) 提供支持。此服务器集中管理无线电数据流，并相应地聚合或分离数据流。这可以有效消除相同的音频流、释放通道以提供可用性，进而优化链路利用率。R&S®RS5400 服务器还通过最佳信号选择来集中处理空对地信号。

快速链接

可用选项

特性和优点

链路聚合

聚合相同的数据流以减少 WAN 链路利用

R&S®RS5400 聚合或分离无线电数据流以进行集中管理，并消除相同的音频流以减少链路利用。这可以释放带宽并用于其他通道，便于空中导航服务提供商 (ANSP) 扩大容量。

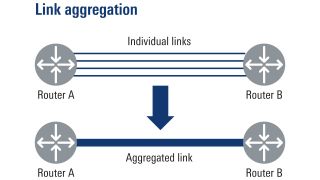

**优化资源，扩大容量** - 借助链路聚合，ANSP 能够将各个链路捆绑到中继，有助于防止出现相同的并行数据流。

兼容 ED-137 标准

面向未来的 VoIP 系统实现一流可用性

R&S®RS5400 无线电服务器通过 R2S、SIP 和 RTP 等符合 ED-137 标准的协议与全 IP CERTIUM®VCS 通信。两个完全冗余的以太网接口可用于与其他 CERTIUM®VCS 系统组件通信。R&S®RS5400 有助于为各种意外情况作好准备。这是使整体系统可用性得到提高的众多因素之一。

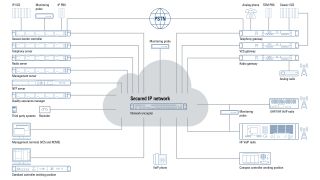

**标准化提高可靠性** - 符合严格的 ATC 法规，提供值得信赖的可靠产品和服务。

最佳信号选择

为空中交通管制员保障一流的音频质量

在多个接收机上同时检测到并行音频流的时候，最佳信号选择功能可发挥重要作用。最佳信号选择与 Climax 延迟补偿等相似增强功能结合使用，以便抵消多径或衰落等无用干扰影响。优化无线电接收还可以提高音频频谱的丰富度，确保优异的语音质量。

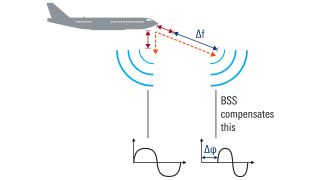

**最佳信号选择功能可稳定接收链路。** - 最佳信号选择功能选择最强接收信号并补偿时间和相位延迟，以便动态适应飞机的位置、速度和周围地形。

四重冗余架构

罗德与施瓦茨特有的四重备份设计确保安心无忧

有些应用涉及敏感信息，有些应用则非常关键。空中交通管制 (ATC) 显然属于关键应用，因此罗德与施瓦茨开发出四重冗余系统设计，其中 ATC 网络中的每个 LAN 链路具备两个不同的有线通道，且每个通道具有两个独立的物理接口。如此，每个链路具备两对共四个物理接口，实现超越“5 个 9”(99.999%) 标准的非凡可用性。

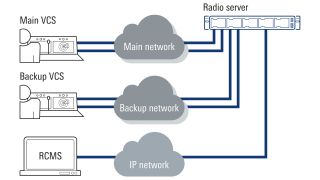

**CERTIUM 产品体系中的四重冗余。** - 两个完全冗余的独立网络联合提供整体四重冗余。

M+N 无线电备份

优化成本，提高可用性

传统的 1+1 冗余网络中，每个无线电台都有一个相同的备份单元随时待用。显然，这种配置具有相应优点，但罗德与施瓦茨的 M+N 拓扑可提供更好的可用性和成本效益。系统甚至可以应对备份故障，且与 1+1 装置相比仅需更少的备用电台即可满足主电台需求，因此极大地降低了成本。

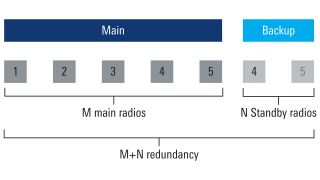

**直观显示 M+N 冗余架构。** - 任一 M 主单元发生故障，任意 N 冗余硬件单元均可代替故障单元。

可用选项
