主要特点

  • 专用于优化系统操作,提供高质量服务
  • 确保符合通信、导航和监控法规要求
  • 面向地面和机载系统的校准与质检
  • 手持式设备易于使用,适合外场应用
  • 易于使用的干扰查找系统

简介

市场上领先的多样化空中交通管制测试与测量解决方案

罗德与施瓦茨的 CERTIUM Assurance 系列针对民航空中交通管制提供各种测试、测量和质检设备。这些产品确保整个系统符合法规要求、操作简单且易于维护。产品组合涵盖用于无线电、导航辅助和雷达测试的高质量频谱与信号分析仪,并包括自动化干扰查找和 IP 网络性能监测解决方案。

特性和优点

广泛的测试与测量设备

面向导航、通信和监控解决方案的配套测试与测量系统

罗德与施瓦茨提供广泛的空中交通管制解决方案,涵盖通信、导航和监控等领域。测试与测量解决方案包括高品质的频谱与信号分析仪、无线电测量设备以及 IP 质检系统。这些解决方案在安装、维护和故障排查任务中发挥重要作用,为日常运行提供支持,同时确保系统功能完善并符合法规要求。

显示更多详细信息

详尽的无线电测试和校准

R&S®CMA180 树立了 ATC 无线电测试标杆,适用于罗德与施瓦茨仪器和其他无线电设备

R&S®CMA180 综测仪是一款一体化平台,可深入分析空中交通管制 (ATC) 无线电设备以及 ILS、VOR 和 MB 等导航辅助系统。R&S®CMA180 内置信号发生器、频谱分析仪和矢量网络分析仪,可用于分析信号质量、测量功率、测量调制频率响应,以及发射端和接收端的静噪灵敏度测试。R&S®CMA180 配备电池和天线,可作为单机式仪器,非常适合飞机维护任务。这些功能还可通过 R&S®CMArun 软件扩展实现自动化,并记录在生成的统一报告中。R&S®CMA180 具有模拟接口以及兼容 ED-137B/C 的 IP 接口。I/Q 记录仪可通过专用的射频端口记录射频信号。

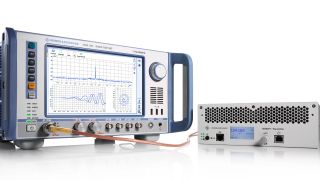

R&S®CMA180 和 R&S®Series5200 无线电台
显示更多详细信息

R&S®CMA180 和 R&S®Series5200 无线电台

天线和电缆测试

使用 R&S®Cable Rider ZPH 在 VHF 和 UHF 频段进行天线和电缆测试。

空中交通管制射频通信具有特定的要求。罗德与施瓦茨的专用测量工具可满足这些要求。R&S®Cable Rider ZPH 专用于 VHF 频段的天线和电缆测试,并提供电缆损耗和故障点距离测量、天线和滤波器匹配、功率测量以及基础的干扰查找功能。R&S®FSH 或 R&S®ZVH 等其他手持式设备进一步完善了这款通用仪器。

使用 R&S®Cable Rider ZPH 进行天线测量
显示更多详细信息

使用 R&S®Cable Rider ZPH 进行天线测量

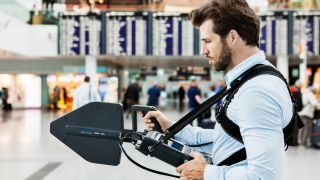

信号监测和干扰查找

R&S®Spectrum Rider FPH 或 R&S®PR200 能够清理频谱,并识别、定位和消除干扰

R&S®Spectrum Rider FPH 提供全面的频谱监测功能,可用于干扰查找任务。搭配定向天线后,R&S®Spectrum Rider FPH 能够在地图上定位信号源的位置,并监听调幅或调频信号。 R&S®PR200 可增强干扰查找。它可对整个 ATC 语音频段进行实时、连续、同步的频谱监测。即使是非常短的突发信号,也能够有效显示出来。R&S®PR200 还可以解调并播放特定频率上的信号,提供有关干扰强度的音频信息。R&S®PR200 结合高精度测向天线,可在路测过程中进行全自动的动态干扰位置估计。

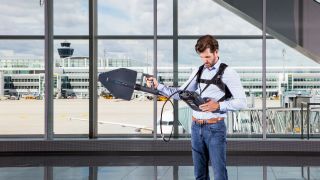

使用 R&S®PR200 进行干扰查找
显示更多详细信息

使用 R&S®PR200 进行干扰查找

VoIP 和射频质检

R&S®AVQA 实现全天候语音质量监测和保证

用户期望获得优越的端到端质量。服务提供商必须确保每一个环节时刻正常运转。AVQA 提供准确、选择性的 IP 和射频监测,通过探头在多个网络节点捕获并汇总原始 IP 数据,以便分析、解读和识别趋势。AVQA 可用于分析地对地以及空对地通话。AVQA 的图形界面操作简便,可展示关键性能指标,为运营商提供系统状态的实时定量反馈,并突出显示重要细节。

雷达监测

使用 R&S®ZNH 手持式矢量网络分析仪和多种附件进行雷达测量

R&S®ZNH 结合 R&S®ZNH-K45 矢量电压表,非常适合旨在对比两台设备的多种现场测量任务,包括校准单脉冲雷达设施。 R&S®ZNH-K29 选件增强了脉冲测量功能。借助此模块化选件,R&S®ZNH 可结合宽带功率探头进行精确的脉冲和峰值测量。R&S®ZNH 可测量最短 50 ns 的脉冲,因此该组合在雷达系统的安装和维护过程中尤为有用。

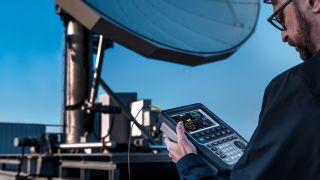

使用中的 R&S®ZNH
显示更多详细信息

使用中的 R&S®ZNH

导航辅助测量和校准

使用 R&S®EVSF1000 和 R&S®EVSG1000 进行 ILS/MB、VOR、GBAS、DME 测量与校准

罗德与施瓦茨提供广泛的测试与测量解决方案组合,覆盖导航辅助系统的整个生命周期。例如,R&S®EVSG1000 非常适合地面系统的现场测量,R&S®EVSF1000 可用于飞行检查。这些产品还包括用于接收机测试的信号生成设备,例如 R&S®CMA180 机载设备无线电综测仪,以及 R&S®SMBV100B 和 R&S®SMA100B 矢量信号发生器。R&S®FSH 矢量电压表可用于天线和电缆测试。

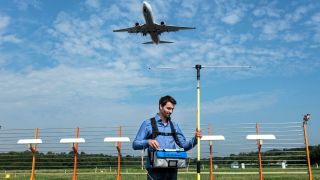

使用 R&S®EVSG1000 进行机场测量
显示更多详细信息

使用 R&S®EVSG1000 进行机场测量
