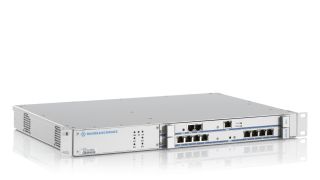

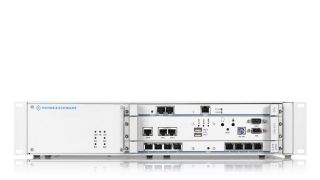

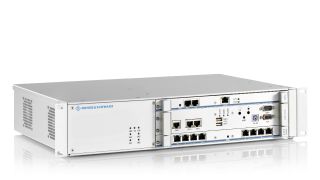

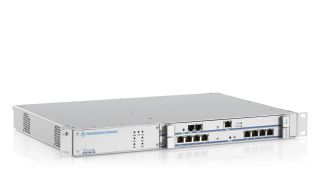

R&S®GW5420 和 R&S®GW5430 电话网关,前视图 R&S®GW5420 和 R&S®GW5430 电话网关,侧视图 R&S®GW5420 和 R&S®GW5430 电话网关,侧视图 R&S®GW5420 和 R&S®GW5430 电话网关,侧视图 R&S®GW5420 和 R&S®GW5430 电话网关,侧视图

主要特点

  • 支持多种电话标准
  • 兼容 ED-137 标准
  • 支持集中管理
  • 冗余选件
  • 使用扩展卡进行模块化定制

将各种电话设置集成到基于 IP 的 VCS 网络中

R&S®GW5420 和 R&S®GW5430 电话网关将外部模拟或数字电话网络连接到兼容 ED-137 标准的 VoIP 网络,该标准是空中交通管制 (ATC) 语音通信领域的事实标准。此电话网关有助于集成现有基础设施,并能够扩展现有 VoIP 电话基础设施中的网络功能。除了现有的 VoIP 电话平台之外,R&S®GW5420 和 R&S®GW5430 还提供并行电话连接,将冗余和跨平台协调提升到新水平。

特性和优点

从传统设置转向 IP 架构

快速顺畅地转换传统电话标准和 VoIP

R&S®GW5420 网关涵盖过去 50 年间所有主要的电话协议,为 IP 网络提供几乎不受限制的一流电话兼容性。R&S®GW5420 电话网关适用于从 FXS/FXO 模拟标准到 BRI 等现代数字协议的所有规范。

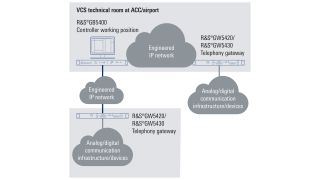

一流的兼容性实现灵活的可扩展性
打开灯箱

一流的兼容性实现灵活的可扩展性

借助 R&S®GW5420 电话网关,传统装置可适应地理分布式网络的先进 IP 架构。

模块化设计

根据用例要求自定义 R&S®GW5420 网关

R&S®GW5420 提供多种连接选件,支持用户根据具体用例选择合适的选件。网关采用模块化设计,可在运行中进行简单维修,并提供满足未来要求的可重配性,确保一流的灵活性。

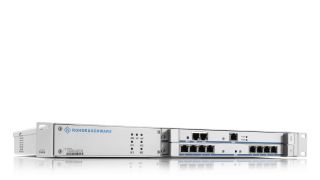

8 个 LB 接口
打开灯箱

8 个 LB 接口

模块化设计支持切换或更换各组件。

部署机会

单一网关可用于广泛应用

R&S®GW5420 极为灵活。典型应用包括使用现有基础设施、将网络连接到订阅线路、创建访问受限的内部设置或运行并行冗余网络。

8 个 ATS-QSIG 接口
打开灯箱

8 个 ATS-QSIG 接口

R&S®GW5420 8 x ATS-QSIG 配备专用 CPU ETX 模块,支持各种配置以用于未来扩展。

支持集中管理

通过全局概况直接了解整体通信系统情况

R&S®GW5420 电话网关非常适合和具有不同等级的 CERTIUM ATC 通信套件一起使用。集成功能各异的不同模块,可为操作员带来协同效益。全 IP 网络架构包含 VCMS 分支,可以从集中控制中心远程操作无人值守的电台站点,从而实现简单操作、高效管理并提供全局概览。

产品系列
打开灯箱

产品系列

灵活的解决方案有效协调多种网络节点,适用于任何具有挑战性的应用。

可用型號

可用型號
型号
描述

R&S®GW5420

描述
4 个 FXS 和 4 个 FXO 接口

R&S®GW5420

描述
8 个 FXS 接口

R&S®GW5420

描述
8 个 FXO 接口

R&S®GW5420

描述
8 个 LB 接口

R&S®GW5420

描述
4 个 E&M 接口

R&S®GW5420

描述
4 个 MFC-R2 接口

R&S®GW5420

描述
4 个 BRI 接口

R&S®GW5420

描述
4 个 ATS-N5 接口

R&S®GW5420

描述
8 个环境记录接口

R&S®GW5420

描述
12 个 FXS 和 12 个 FXO 接口

R&S®GW5420

描述
24 个 FXS 接口

R&S®GW5420

描述
24 个 FXO 接口

R&S®GW5420

描述
24 个 LB 接口

R&S®GW5420

描述
12 个 E&M 接口

R&S®GW5420

描述
12 个 MFC-R2 接口

R&S®GW5420

描述
12 个 ATS-N5 接口

R&S®GW5420

描述
8 个 ATS-QSIG 接口,每个支持三个语音通道

可用选项

通用
产品
描述
R&S®GW5420-X
描述

可选的环境录音麦克风,带一个用于环境录音的放大器

R&S®GW5400-AC
描述

适用于 GW 的可选二次嵌入交流电源
