R&S®Server-Based Testing

R&S®Server-Based Testing
打开灯箱

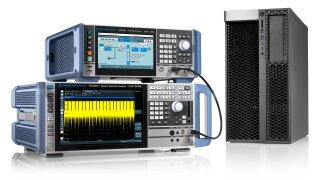

R&S®Server-Based Testing,应用图像

主要特点

  • 适用于高吞吐量重复性测试
  • 通过符合行业标准的应用程序接口轻松集成到当前测试环境
  • 一流的可扩展性:可在一台或多台服务器上进行部署

下一代高性能重复性测量解决方案

提升 5G 基站生产性能

R&S®Server-Based Testing 基于服务器的测试系统 (SBT) 优化了执行速度,性能出色,集成简单,适用于 5G 基站生产等高度自动化的测试场景和更多应用!
基于服务器的测试系统具备以下特点:

  • 提供符合 3GPP 标准的 5G 和 4G 下行链路误差矢量幅度计算
  • 支持频谱发射模板和邻道泄漏比等符合行业标准的频谱测量
  • 可通过知名的高性能 REST API 接口进行操作和配置
  • 可在多个处理单元之间进行扩展(提供可选的主从配置)
  •  高度本地化操作(无需连接互联网)

特性和优点

基于服务器的测试系统优化了操作速度

SBT 极大地提高了测量吞吐量和测试速度!

R&S®Server-Based Testing 专用于提供卓越的测量性能。此系统性能非凡,能够利用底层平台资源,尤其是在使用多核 CPU 的应用中!

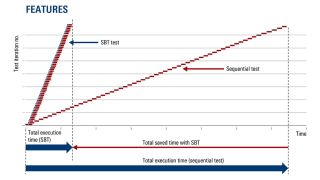

对比 SBT 性能与序列测试
打开灯箱

对比 SBT 性能与序列测试

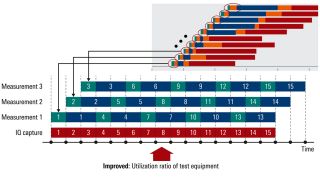

提高仪器利用率

SBT 缩短空闲时间,加快测试设备的成本摊销

R&S®Server-Based Testing 可用于实现测试设备的最佳利用率。测试设备单独捕获射频数据,运行 SBT 系统的服务器独立处理数据,确保充分利用高价值仪器。

打开灯箱

可扩展性

SBT 可以在小型电脑、大型服务器或多台服务器上运行

R&S®Server-Based Testing 专用于在多个平台之间进行灵活扩展:无论是小型工作站、优化全天候操作的单台服务器还是实现最佳性能的多台服务器,此系统都提供相同的安装和运行配置。

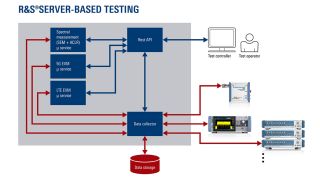

简单集成

SBT 采用先进技术和符合行业标准的接口

R&S®Server-Based Testing 通过明确标准化的 REST API 接口快速、无缝集成到当前测试环境。

打开灯箱

可用选项

4G/LTE 测量
产品
描述
R&S®FSMS-4G

订单号码 1345.1370.52

描述

SBT 4G 下行链路 SAMS 许可

4G/LTE 下行链路测量许可

5G NR 测量
产品
描述
R&S®FSMS-5G

订单号码 1345.1111.52

描述

SBT 5G 下行链路 SAMS 许可

5G NR 下行链路测量许可

频谱测量
产品
描述
R&S®FSMS-SM

订单号码 1345.1386.52

描述

SBT 频谱测量许可

频谱测量许可
