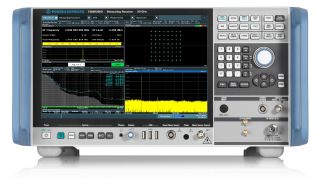

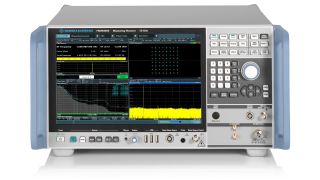

R&S®FSMR3000 测量接收机

降低校准复杂性

主要特点

频率范围：2 Hz 至 8/26.5/50 GHz
高精确度电平校准仪，具有 –152 dBm 至 +30 dBm 的宽电平测量范围
调幅/调频/调相和数字调制分析仪
功能齐全的信号与频谱分析仪，最高 80 MHz 分析带宽
具有互相关的高端相位噪声分析仪，1 GHz、10 kHz 偏移时典型值为 –163 dBc/Hz

获取报价

信号发生器和衰减器校准与性能检查

R&S®FSMR3000 测量接收机是一款完整解决方案，可用于信号发生器和固定或可调衰减器的校准与性能检查。

R&S®FSMR3000 是一款微波测量接收机，单机即可校准信号发生器和衰减器。接收机具备多种重要功能，包括调谐射频电平测量、电平测量、模拟调制和频谱分析。此外，R&S®FSMR3000 还可以配备功能强大的高端相位噪声测试硬件，以完善使用频谱分析仪的标准相位噪声测试。仪器具有 80 MHz 分析带宽，还可以分析数字和模拟调制信号、脉冲信号以及 VOR/ILS 信号。作为单机式仪器，R&S®FSMR 可降低校准复杂性。

快速链接

可用的型号
可用选项

特性和优点

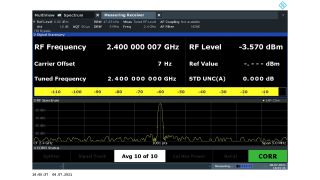

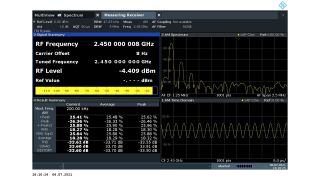

调谐射频电平 (TRFL) 校准和功率测量

一流的线性度和电平稳定性，在频率漂移和残余调频方面具有高耐受性

R&S®FSMR3000 采用相邻范围校准，避免可能出现的电平误差。因此，仪器可以在整个电平范围内为用户提供低于 (0.009 dB ± 0.005 dB/10 dB) 的一流线性度。

直接连接功率探头以准确测量功率

无需其他功率计。R&S®NRP 功率探头连接简单，并且可自动被仪器识别。

R&S®NRP50T 的频率范围介于 DC 至 50 GHz。内置功分器的功率探头可简化设置和测试，被测设备不必重复连接到功率探头和 R&S®FSMR3000 的射频输入。R&S®NRP-Z27/-Z37 功率探头模块配有内置功分器，适用于 R&S®FSMR3000。

调幅/调频/调相分析

测量调制深度、频率偏差和相位偏差，测量不确定度低于 0.5%

R&S®FSMR3000 具备完整的集成式调制分析仪，可用于调幅、调频和调相模拟调制模式。仪器可测量解调信号的音频参数。各种音频滤波器、去加重功能和检波器可用于音频分析。

功能全面的信号与频谱分析仪

谐波、TOI 等频谱分析测量功能，提供 80 MHz 信号分析带宽

借助 R&S®FSMR3-B1 选件，这款测量接收机可转换成功能齐全的信号与频谱分析仪以测量三阶互调截取点 (TOI)、高阶谐波、噪声系数或相位噪声。除了频谱测量之外，接收机还可以分析 80 MHz 数字调制信号、脉冲信号或 VOR/ILS 信号。

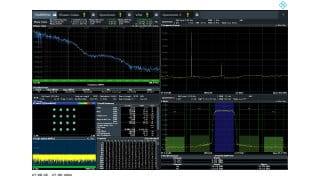

**相位噪声、邻道功率 (ACP) 和高阶谐波测量以及数字调制信号的矢量信号分析**

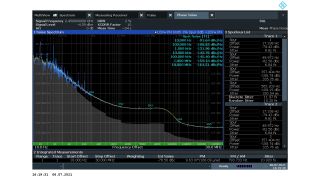

高端相位噪声分析仪

互相关实现卓越的灵敏度，实时解调确保快速同步测量幅度噪声和相位噪声。

R&S®FSMR3-B60 选件将 R&S®FSMR3000 测量接收机转换为功能齐全的相位噪声分析仪。R&S®FSMR3000 具有出色的内部源和实现互相关的附加接收路径，并主要采用数字架构，操作非常快捷和灵敏。仪器直接使用 CORDIC 算法解调信号，可以在单个图表或不同窗口中同时显示调幅和相位噪声结果。

可用型号

可用选项

网络研讨会：使用高端测量接收机降低测量不确定度

观看本网络研讨会，了解如何可以使用 R&S®FSMR3000 测量接收机保证信号发生器的测量不确定度。
