R&S®FS-SNS 智能噪声源

R&S®FS-SNS 智能噪声源
打开灯箱
R&S®FS-SNS 智能噪声源
打开灯箱
R&S®FS-SNS 智能噪声源
打开灯箱

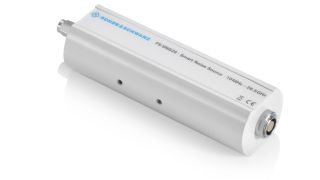

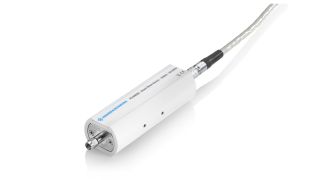

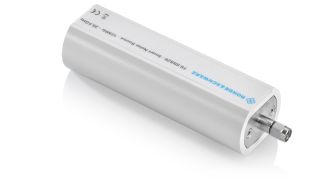

R&S®FS-SNS 智能噪声源,高前视图 R&S®FS-SNS 智能噪声源,高前视图 R&S®FS-SNS 智能噪声源,高前视图

主要特点

  • 频率高达 18 GHz、26 GHz、40 GHz、55 GHz、67 GHz、90 GHz 或 110 GHz
  • 受 R&S®FSW、R&S®FSV/A3000、R&S®FPS、R&S®FPL1000 信号与频谱分析仪,R&S®FSWP 相位噪声分析仪和 VCO 测试仪,R&S®FSMR3000 测量接收机以及 R&S®ZNL 网络分析仪支持
  • 自动加载超噪比 (ENR) 表格
  • ENR 不确定度和反射系数表,用于自动计算不确定度
  • 自动读取温度以提高准确性

实现简单准确的噪声系数测量

R&S®FS-SNS 智能噪声源自动加载所有必要的参数,并考虑环境温度,从而简单、准确地测量噪声系数和增益。自动计算测量不确定度,甚至可以显示在结果屏幕上。

可用型號

可用型號
型号
频率范围
ENR
射频端口

R&S®FS-SNS18

订单号码 1338.8008.18

频率范围
10 MHz - 18 GHz
ENR
5 dB - 7 dB
射频端口
SMA 阳性

R&S®FS-SNS26

订单号码 1338.8008.26

频率范围
10 MHz - 26.5 GHz
ENR
13 dB - 17 dB
射频端口
APC 3.5 mm 阳性(兼容 SMA)

R&S®FS-SNS40

订单号码 1338.8008.40

频率范围
100 MHz - 40 GHz
ENR
10 dB - 17 dB
射频端口
2.92 mm 阳性(兼容 SMA)

R&S®FS-SNS55

订单号码 1338.8008.55

频率范围
100 MHz - 55 GHz
ENR
7 dB - 21 dB
射频端口
1.85 mm 阳性(兼容 2.4 mm)

R&S®FS-SNS67

订单号码 1338.8008.67

频率范围
100 MHz - 67 GHz
ENR
7 dB - 20 dB
射频端口
1.85 mm 阳性(兼容 2.4 mm)

R&S®FS-SNS110

订单号码 1338.8008.11

频率范围
75 GHz - 110 GHz
ENR
typ. 13 dB
射频端口
WR10

R&S®FS-SNS90

订单号码 1338.8008.90

频率范围
60 GHz - 90 GHz
ENR
typ. 15 dB
射频端口
WR12

可用选项

通用
产品
描述
R&S®SNSCABLE-Y

订单号码 1338.8066.00

描述

适用于 FS-SNS 智能噪声源的 Y 型适配器电缆,可用于未使用 FS-SNS 专用连接器而配备 USB 和 BNC 连接器的仪器
