USB-SSIC 示波器软件

触发和解码

USB-SSIC 示波器软件
打开灯箱
USB-SSIC oscilloscope software, Software

主要特点

  • 支持对 USB-SSIC gear 1 和 2 信号的解码
  • 对 35 种不同的帧类型、帧内容以及各种错误条件进行可靠的触发
  • 解码数据包以颜色编码的总线信号显示,或者在解码表中显示
  • 屏幕上串行解码与波形存在时间相关性
  • 对 35 种不同的帧类型、帧内容以及各种错误条件使用强大的搜索和导航功能
  • 多域图标

示波器软件

R&S®RTO 示波器可对 USB-SSIC 接口(gear 1 和 2)进行调试。解码设置仅需数秒。用户能够以颜色编码的报文形式和/或在解码表中查看结果,并作详细分析。有效且可靠地识别错误。用户可以对 35 种不同的帧类型、帧内容以及各种错误条件进行触发。

特性和优点

快速总线设置

通过应用面板在数秒内完成总线设置

通过应用面板,只需几个步骤即可配置任意特定协议。选择需要解码的总线和连接的通道,并设置正确的电平之后,就会自动开始解码。

打开灯箱

使用应用面板选择总线解码

使用颜色编码的报文显示

报文以颜色编码的总线信号显示,或者在解码表中显示

用户可以将信号与颜色编码数据叠加,以便分析解码总线帧。地址和数据内容可以十六进制、二进制或 ASCII 格式显示。用户始终可以通过灵活的屏幕设置获得理想的浏览效果。报文也可以显示在简明表格中。

打开灯箱

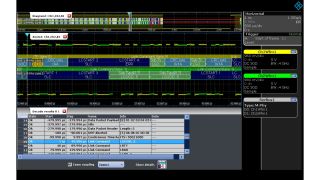

解码帧采用颜色编码

强大的触发功能

针对起始、结束、地址、数据以及各种错误条件执行强大的触发功能

借助特定于协议的触发,用户能够可靠地隔离协议事件和错误。罗德与施瓦茨示波器具有高捕获率,非常适合快速查找错误,以便针对特定于协议的触发结果进行解码。示波器可针对地址、数据和协议错误等特定协议内容进行基于硬件的触发。

打开灯箱

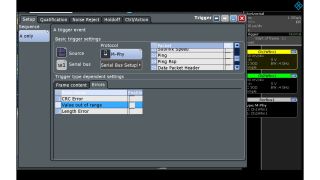

协议触发设置对话框

在采集记录中搜索和导航

强大的搜索和导航功能

全面的搜索功能让长信号序列的分析更加简单。用户可以根据不同的标准搜索波形,例如信号故障或协议内容。所有检测到的事件均显示在表格中,并带有时间戳。用户可以在缩放窗口中查看单个事件,并轻松浏览不同事件。

打开灯箱

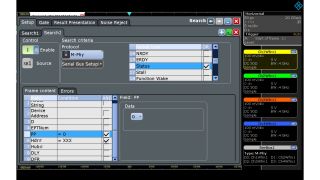

强大的搜索功能,支持长记录

可用型号

可用型号
型号
串行标准
解码表
触发
搜索
基本单元

R&S®RTP-K64

订单号码 1337.9117.02

串行标准
USB-SSIC
解码表
触发
搜索
基本单元

R&S®RTO-K64

订单号码 1337.9123.02

串行标准
USB-SSIC
解码表
触发
搜索
基本单元
Triggering and decoding of low speed serial buses

操作方法视频

触发和解码低速串行总线

介绍如何使用罗德与施瓦茨示波器触发和解码 I2C 和 SPI 协议
