USB 3.1 Gen 1/2 示波器软件

触发和解码

USB 3.1 Gen 1/2 示波器软件
打开灯箱
USB 3.1 Gen 1/2 示波器软件
打开灯箱

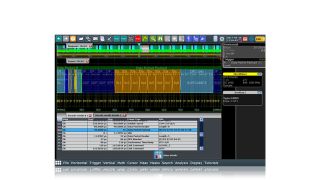

USB 3.1 Gen 1/2 oscilloscope software, Software USB 3.1 Gen 1/2 oscilloscope software, Screenshot

主要特点

  • 自动检测数据率和阈值
  • 解码后的报文以颜色编码的蜂巢形式显示在波形图或解码表中
  • 对协议细节(比如帧起始、帧内容和错误条件)进行可靠的触发
  • 可选择加扰/解扰
  • 可选解码层:包括边沿、比特位、加扰或解扰命令和数据字,以及最终协议层
  • 多域图标

示波器软件

R&S®RTP 和 R&S®RTO 示波器支持对 USB 3.1 Gen 1 和 Gen 2 信号的触发和解码。解码设置仅需数秒。用户能够以颜色编码的报文形式和/或在解码表中查看结果,并作详细分析。使用硬件加速触发,用户能够可靠且有效地识别错误。用户可以对协议细节(比如帧起始、帧内容和错误条件)进行触发。

特性和优点

快速总线设置

通过应用面板在数秒内完成总线设置

通过应用面板,只需几个步骤即可配置任意特定协议。选择需要解码的总线和连接的通道,并设置正确的电平之后,就会自动开始解码。

打开灯箱

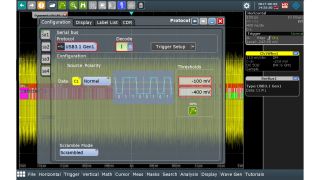

轻松快速地进行总线设置以解码 USB 3.1。

使用颜色编码的报文显示

报文以颜色编码的总线信号显示,或者在解码表中显示

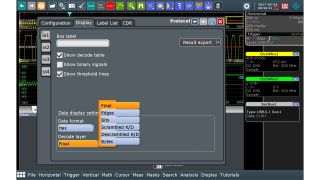

用户可以将信号与颜色编码数据叠加,以便分析解码总线帧。地址和数据内容可以十六进制、二进制或 ASCII 格式显示。用户始终可以通过灵活的屏幕设置获得理想的浏览效果。报文也可以显示在简明表格中。

打开灯箱

解码的 USB 3.1 协议帧采用颜色编码,有助于更清楚地显示细节。

强大的触发功能

针对起始、结束、地址、数据以及各种错误条件执行强大的触发功能

借助特定于协议的触发,用户能够可靠地隔离协议事件和错误。罗德与施瓦茨示波器具有高捕获率,非常适合快速查找错误,以便针对特定于协议的触发结果进行解码。示波器可针对地址、数据和协议错误等特定协议内容进行基于硬件的触发。

打开灯箱

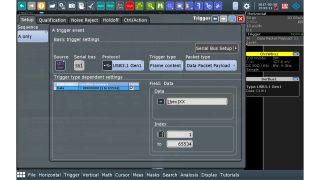

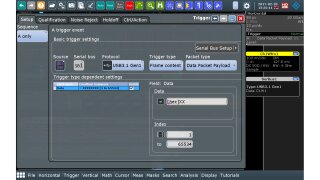

USB 3.1 协议触发设置对话框。

在采集记录中搜索和导航

强大的搜索和导航功能

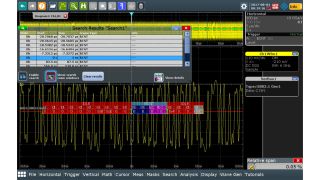

全面的搜索功能让长信号序列的分析更加简单。用户可以根据不同的标准搜索波形,例如信号故障或协议内容。所有检测到的事件均显示在表格中,并带有时间戳。用户可以在缩放窗口中查看单个事件,并轻松浏览不同事件。

打开灯箱

强大的协议细节搜索功能,支持长记录。

可用型号

可用型号
型号
串行标准
解码表
触发
搜索
基本单元

R&S®RTP-K61

订单号码 1337.8804.02

串行标准
USB 3.1 Gen 1
解码表
触发
搜索
基本单元

R&S®RTP-K62

订单号码 1337.9100.02

串行标准
USB 3.1 Gen 2
解码表
触发
搜索
基本单元

R&S®RTO-K61

订单号码 1326.3112.02

串行标准
USB 3.1 Gen 1
解码表
触发
搜索
基本单元
