ARINC 示波器软件

触发和解码

ARINC 示波器软件
打开灯箱
ARINC 示波器软件
打开灯箱
ARINC 示波器软件
打开灯箱
ARINC 示波器软件
打开灯箱
ARINC 示波器软件,软件 ARINC 示波器软件,屏幕截图 ARINC 示波器软件,屏幕截图 ARINC 示波器软件,屏幕截图

主要特点

  • ARINC 429 地址符号解码
  • 协议以颜色编码的总线信号显示,或者在解码表中显示
  • 支持字起始、字结束、标签、数据或各种错误条件触发
  • 屏幕上串行解码与串行数据波形存在时间相关性
  • 使用标配模板测试功能快速进行 ARINC 429 眼图模板测试
  • 多域图标

示波器软件

R&S®RTP、R&S®RTO、R&S®RTE、R&S®RTA4000 和 R&S®RTM3000 示波器支持对 ARINC 429 总线的触发和解码。解码设置仅需数秒。用户能够以颜色编码的协议形式和/或在解码表中查看结果,并作详细分析。使用硬件加速触发,用户能够有效且可靠地查找错误。支持字起始、字结束、标签、数据以及各种错误条件触发。

特性和优点

通过应用面板在数秒内完成总线设置

通过应用面板,只需几个步骤即可配置完成任意特定协议。选择需要解码的总线和连接的通道,并设置正确的电平之后,就会自动开始解码。

打开灯箱

协议以颜色编码的总线信号显示,或者在解码表中显示

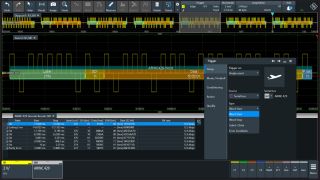

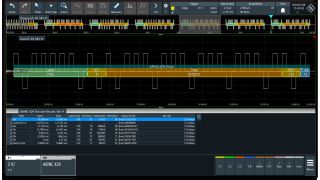

颜色编码数据与总线信号叠加,以便用户分析解码总线帧。地址和数据内容可以十六进制、二进制和 ASCII 格式显示。灵活的屏幕设置确保始终获得理想的浏览效果。此外,协议也可以显示在简明表格中。

打开灯箱

针对字起始、字结束、标签、数据或各种错误条件执行强大的触发功能

借助特定于协议的触发,用户能够可靠地隔离协议事件和错误。罗德与施瓦茨示波器具有高捕获率,能够针对特定于协议的触发结果进行解码,因此非常适合快速查找错误。针对地址或数据等特定的协议内容以及协议错误可以进行基于硬件的触发。

打开灯箱

强大的搜索和导航功能

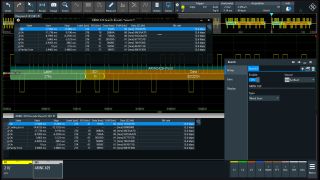

全面的搜索功能让长信号序列的分析更加简单。用户可以根据信号故障和协议内容等各种标准搜索波形。所有检测到的事件均显示在表格中,并带有时间戳。用户可以在缩放窗口中轻松浏览不同事件,还可以仔细查看单个事件。

打开灯箱

可用型号

可用型号
型号
串行标准
解码表
触发
标签支持
搜索
基本单元

R&S®RTP-K7

订单号码 1800.6660.02

串行标准
ARINC 429
解码表
触发
标签支持
搜索
基本单元

R&S®RTO-K7

订单号码 1329.7325.02

串行标准
ARINC 429
解码表
触发
标签支持
搜索
基本单元

R&S®RTA-K7

订单号码 1335.7746.02

串行标准
ARINC 429
解码表
触发
标签支持
搜索
基本单元

R&S®RTM-K7

订单号码 1335.8865.02

串行标准
ARINC 429
解码表
触发
标签支持
搜索
基本单元

了解详情

Triggering & decoding 100Base-T1 BroadR-Reach Ethernet

触发和解码 100Base-T1 BroadR-Reach 以太网

使用示波器触发和解码实际的 OABR 车载以太网。

更多信息

Triggering and decoding fast channel and slow channel of the SENT bus

触发和解码 SENT 总线的快速通道和慢速通道

以 R&S®RTO 为例了解如何解码 SENT,包括增强型串行消息。

更多信息

Debug CAN flexible data CAN-FD interfaces with an oscilloscope

使用示波器调试 CAN Flexible Data (CAN-FD) 接口

以 R&S®RTO 为例了解如何调试 CAN-FD。

更多信息

Symbolic decoding of a SENT bus

SENT 总线的符号解码

以 R&S®RTO 为例,了解如何设置 SENT 总线的符号解码。

更多信息

Decoding SENT bus with a handheld oscilloscope

使用手持式示波器解码 SENT 总线

了解如何使用 R&S®RTH 手持式示波器轻松解码 SENT 总线。

更多信息

Decoding over three minutes of bus data using deep memory and ultrasegmentation

借助深存储和超级分段存储性能解码超过三分钟的总线数据

以 R&S®RTA 为例了解如何借助深存储和超级分段存储性能解码总线数据。

更多信息

Decoding CAN Flexible Data CAN-FD bus with a handheld oscilloscope

使用手持式示波器解码 CAN Flexible Data (CAN-FD) 总线

了解如何使用 R&S®RTH 手持式示波器轻松解码 CAN-FD 总线。

更多信息

Decoding SENT bus signal

解码 SENT 总线信号

以 R&S®RTO 为例了解如何使用罗德与施瓦茨示波器轻松解码 SENT 总线。

更多信息

Serial bus decoding capability with an Oscilloscope

示波器的串行总线解码功能

以 R&S®RTO 为例,了解罗德与施瓦茨示波器强大的解码功能。

更多信息

嵌入式电源的安全调试

触发并解码嵌入式电源中基于 I²C 的控制接口,更快地执行调试。

更多信息
