R&S®HK116E 双锥形天线

适用于辐射发射测量

R&S®HK116E 双锥形天线
打开灯箱
R&S®HK116E 双锥形天线
打开灯箱
R&S®HK116E 双锥形天线
打开灯箱
R&S®HK116E 双锥形天线
打开灯箱
R&S®HK116E 双锥形天线
打开灯箱

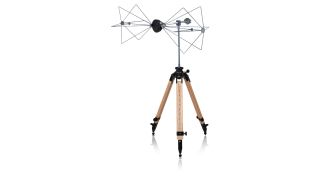

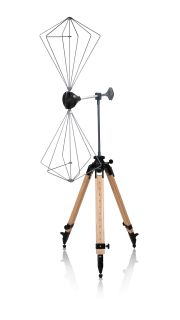

R&S®HK116E 前视图 R&S®HK116E 安装在 R&S®HZ-1 木制三脚架上,水平极化 R&S®HK116E 安装在 R&S®HZ-1 木制三脚架上,垂直极化 R&S®HK116E 安装在可移动底座上,水平极化 R&S®HK116E 安装在可移动底座上,垂直极化

主要特点

  • 宽频率范围
  • 适用于敏感度和发射测量
  • 很低的交叉极化
  • 紧凑轻巧
  • 易于操作

适用于辐射发射测量

线性极化的 R&S®HK116E 双锥形天线可在 20 MHz 至 300 MHz 的频率范围内进行宽带发射和接收。天线设计精密,特别适合场强和 EMI 测量。尽管天线主要用于在实验室中进行干扰测量,但也可用于外场测试,并能承受适度的天气条件和低风速。

特性和优点

辐射方向图与频率的相关性极低

在工作频率范围维持一致特性

R&S®HK116E 双锥形天线支持宽带操作,辐射方向图几乎与频率无关,可在整个工作频率范围内实现均匀的被测设备辐照。

很低的交叉极化

用于准确的极化测量

R&S®HK116E 采用先进设计,确保交叉极化极低,能够进行准确的电场矢量空间测量,从而提供更加可靠的结果。

安装/拆卸简单快捷

确保易于操作

操作人员可以简单快速地拆卸 R&S®HK116E。这便于拆除天线,或将其安装到天线杆或三脚架。在不同的测量任务之间更换天线时,操作人员可以节省时间。

出色的测量可重复性

提供可靠结果

双锥形辐射器的安装系统确保横杆的方向固定,以获得持续的卓越电气性能。这符合 CISPR 16-1-6 第 1.0 版中的建议(A.4.2、A.4.3;避免简单的螺纹连接元件导致辐射器方向不精确)。

可用选项

通用
产品
描述
描述

木制三脚架

R&S®KM011Z10
描述

三脚架适配器

适用于 R&S®HK116E 和 R&S®HL050E 的适配器,可用于 R&S®HZ-1 三脚架
