R&S®FSWT 测试接收机

具有数字信号评估功能的 TEMPEST 测量接收机

R&S®FSWT 测试接收机
打开灯箱
R&S®FSWT 测试接收机
打开灯箱
R&S®FSWT 测试接收机
打开灯箱
R&S®FSWT 测试接收机
打开灯箱

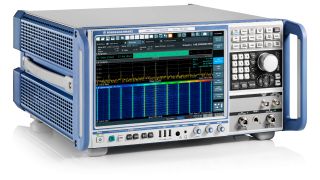

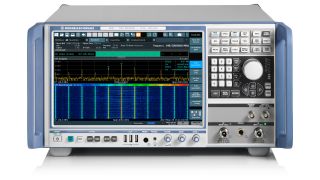

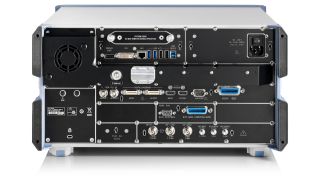

R&S®FSWT 测试接收机,前视图 R&S®FSWT 测试接收机,高前视图 R&S®FSWT 测试接收机,侧视图 R&S®FSWT 测试接收机,后视图

主要特点

  • 频率范围:10 Hz 至 26.5 GHz
  • 数字中频,信号分析和测量带宽高达 500 MHz
  • 基本单元提供可选的预选功能和前置放大器
  • 可选的视频光栅化功能和数据流
  • 可选的矢量信号分析仪和 OFDM 解调器

专门设计用于检测和分析微弱信号

R&S®FSWT 适用于检测泄漏发射。R&S®FSWT 具有两个等效的可切换射频输入、高达 500 MHz 的测量和分析带宽以及两个用于视频电压和解调器的模拟输出,非常适用于典型的测试装置,并可轻松替换旧仪器。接收机采用一体化设计和 5 HU 外壳,并集成所有测量功能和硬件选件。适用于模拟和数字(可选)解调和光栅化的测量功能可用于日常测量任务。

可用选项

通用
产品
描述
R&S®FSWT-B17

订单号码 1325.2470.02

描述

数字基带接口

R&S®FSWT-B18

订单号码 1322.9874.02

描述

备用固态硬盘(可移动硬盘)

R&S®FSWT-B223

订单号码 1321.6142.26

描述

射频预选和射频前置放大器

100 kHz 至 26.5 GHz

R&S®FSWT-B23

订单号码 1321.6113.26

描述

射频前置放大器

100 kHz 至 26.5 GHz

R&S®FSWT-B517

订单号码 1338.6305.02

描述

I/Q 流接口带宽高达 500 MHz

R&S®FSW-B4

订单号码 1313.0703.02

描述

OCXO 精密频率参考

R&S®FSW-B10

订单号码 1313.1622.02

描述

外部发生器控件

总体分析
产品
描述
R&S®FSW-B33

订单号码 1313.3602.02

描述

USB 大容量存储器写保护

R&S®FSWT-K33

订单号码 1325.2487.02

描述

SSD 写保护

R&S®FSWT-K53

订单号码 1338.6292.02

描述

基于 FFT 的扫描实现快速概要测量

R&S®FSWT-K57

订单号码 1338.4725.02

描述

视频光栅化

R&S®FSWT-K70

订单号码 1338.7560.02

描述

矢量信号分析

R&S®FSWT-K70M

订单号码 1350.5970.02

描述

多调制分析(需要 R&S®FSWT-K70)

R&S®FSWT-K70P

订单号码 1350.5986.02

描述

PRBS 误码率测量(需要 R&S®FSWT-K70)

R&S®FSWT-K96

订单号码 1338.7576.02

描述

OFDM 信号分析

R&S®FSWT-K552

订单号码 1338.6311.02

描述

自定义数字基带连接

R&S®FSWT-K553

订单号码 1353.3449.02

描述

External frontend control
