R&S®HL223 对数周期天线


R&S®HL223 对数周期天线
R&S®HL223 对数周期天线
R&S®HL223 对数周期天线
R&S®HL223 对数周期天线
R&S®HL223 对数周期天线

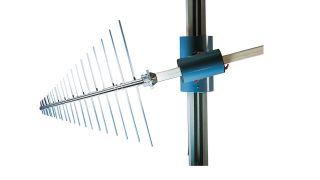

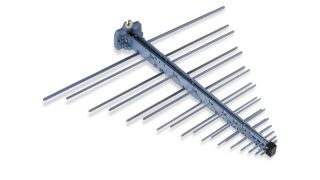

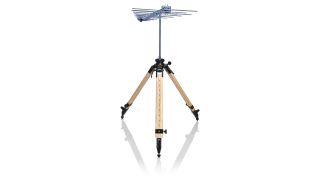

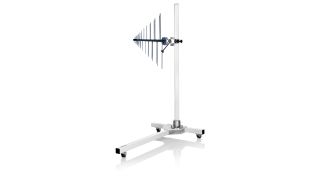

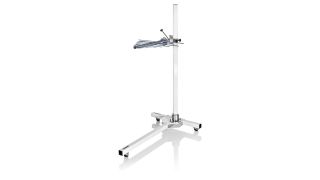

R&S®HL223 顶视图 R&S®HL223 和 R&S®HL562Z1 可移动三脚架,垂直极化 R&S®HL223 和 R&S®HL562Z1 可移动三脚架,水平极化 R&S®HL223 安装在 R&S®HZ-1 木制三脚架上,水平极化 R&S®HL223 安装在天线杆上,垂直极化


  • 出色的宽带特性
  • 几乎与频率无关的辐射方向图
  • 只需单个天线即可覆盖较宽的频率范围
  • 坚固构造
  • 适合移动应用


R&S®HL223 对数周期天线覆盖 200 MHz 至 1.3 GHz 的宽频率范围。天线针对无线电监测和测量进行了优化。辐射方向图几乎与频率无关,坚固设计确保天线适用于固定和移动应用。可应要求根据 ANSI C63.5、CISPR 16-1-6 和 SAE ARP958 进行独立校准,或提供认证校准。




天线覆盖 200 MHz 至 1.3 GHz 的宽频率范围,并支持无线电监测和测量等不同应用。只需单个天线即可覆盖整个频率范围,显著减少了测量时间和总成本。



这种天线设计使得 E 平面和 H 平面的辐射方向图几乎与频率无关。这样能够在整个工作频率范围内实现被测设备的均匀辐照。
