宽带放大器

性能出色的宽带放大器,频率范围介于 4 kHz 至 6 GHz

模块化、新颖、稳健

罗德与施瓦茨宽带放大器

优异的射频性能激励创新。

罗德与施瓦茨宽带放大器是新颖的固态放大器解决方案,具有卓越的射频性能,可在 4 kHz 至 6 GHz 的频率范围内产生高达 13 kW 的射频功率。此放大器设计极为紧凑,在高功率密度下能够有效应对严重的输出失配问题,同时确保一流的可用性。适用应用包括幅度、频率、相位、脉冲和 OFDM 调制。放大器采用模块化结构,系统扩展性经过现场验证。即使是用于复杂的射频系统装置,精密的输入、输出和采样端口开关选件也能满足需求。

R&S®BBL200 宽带放大器,前视图

R&S®BBL200 宽带放大器

  • 频率范围:9 kHz 至 250 MHz
  • 1 dB 压缩点的输出功率为 3000 W、5000 W 或 10000 W
  • 100% 失配容差
  • 适用于幅度、频率、相位、脉冲和 OFDM 调制
  • 液冷型、紧凑、静音
R&S®BBA300 宽带放大器,主视图

R&S®BBA300 宽带放大器

  • 在高达 6 GHz 的超宽频率范围内进行连续射频信号扫描
  • 线性射频输出功率高达 300 W,并具备出色的噪声功率谱密度和优异的谐波特性
  • 支持调幅、调频、调相、脉冲调制和复杂的 OFDM 调制模式
  • 高度可用,在所有失配条件下可靠操作
  • 灵活且可扩展的功能和可拓展的频率范围和功率配置
R&S®BBA130 宽带放大器,前视图

R&S®BBA130 宽带放大器

  • 频率范围:80 MHz 至 6 GHz
  • 输出功率范围:22 W 至 13000 W
  • 可调偏置点和失配容差
  • 适用于幅度、频率、相位、脉冲和 OFDM 调制
  • 频率和功率可灵活扩展和升级
R&S®BBA150 宽带放大器,前视图

R&S®BBA150 宽带放大器

  • 频率范围:4 kHz 至 6 GHz
  • 1 dB 压缩点输出功率范围介于 15 W 至 3000 W
  • 100% 失配容差
  • 适用于幅度、频率、相位、脉冲和 OFDM 调制
  • 提供多种开关选件,便于灵活配置系统

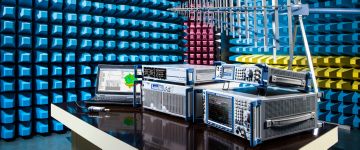

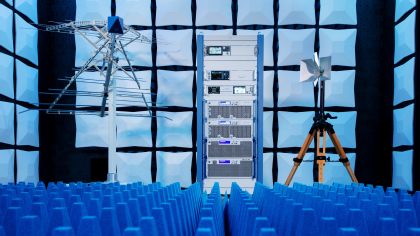

EMC 一致性测试

产生场强以进行各种合规性测试。

更多信息

放大器用作系统组件

产生射频功率以验证射频设计和组件。

更多信息
