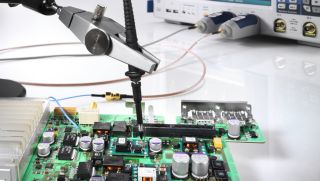

示波器电源完整性探头,侧视图 示波器电源完整性探头,前视图 示波器电源完整性探头,应用图像 示波器电源完整性探头,应用图像

主要特点

  • 高带宽:2 GHz 或 4 GHz
  • 高偏置补偿范围:+/-60 V
  • 高灵敏度以及 1:1 衰减比
  • 极低的加性噪声
  • 集成式高精度直流电压表

简介

R&S®RT-ZPR20/40 电源完整性探头集合了高带宽、高灵敏度、极低噪声以及超大偏置补偿的优点,非常适用于电源完整性测量。集成式高精度直流电压表提供即时的直流电压读数输出。

可用型号

可用型号
型号
带宽
最大电压
衰减因子
输入阻抗
注释

R&S®RT-ZPR20

订单号码 1800.5006.02

带宽
2.0 GHz
最大电压
+/-0.85 V +/-60 V 偏置
衰减因子
1:1
输入阻抗
50 kΩ
注释
罗德与施瓦茨探头接口

R&S®RT-ZPR40

订单号码 1800.5406.02

带宽
4.0 GHz
最大电压
+/-0.85 V +/-60 V 偏置
衰减因子
1:1
输入阻抗
50 kΩ
注释
罗德与施瓦茨探头接口

可用选项

探头附件
产品
描述

订单号码 1800.5329.00

描述

适用于 R&S®RT-ZPR 电源完整性探头的备用电源完整性探头点测式套件。包含在 R&S®RT-ZPR20/40 中;

包括电源完整性探头点测式套件,带鳄鱼夹的接地线,5 个接地弹簧,5 个集成电路封帽(绿色、蓝色、灰色、棕色、黑色),探头尖端绝缘帽,5 个探头尖端(1 个用螺丝拧紧在探头上),5 个弹簧尖端,弹簧钩,SMD 微型夹,双适配器,带适配器的软接地线,8 个编码环(2 个黄色、2 个红色、2 个绿色、2 个蓝色),短管(用螺丝拧紧在探头上),长管

订单号码 1800.5258.00

描述

焊接式同轴电缆

适用于 R&S®RT-ZPR 电源完整性探头的 15 cm SMA 焊接式同轴电缆
