VNA source phase control 选件

VNA source phase control 选件
打开灯箱

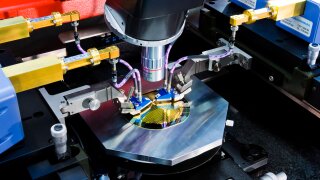

VNA source phase control options, Application Image

主要特点

  • 用户自定义相位
  • 独立端口/信号源 (ZNA)
  • 自动化真实差分测量(ZNA-K61:0°/180° 激励信号)
  • 相位不平衡
  • 幅度不平衡

矢量网络分析仪信号源相位控制选件

矢量网络分析仪信号源相位控制选件满足设备特性测量的要求,可在参考面上使用定义的相位激励。这些设备包括差分放大器、IQ 混频器和相位天线阵列等。ZVA 具有四个相参信号源,支持用户在不同测试端口之间设置任意相对相位。ZNA 采用 DDS 架构,进一步增强了这一特性,支持用户为每个测试端口独立设置任意相位。矢量误差校准将 ZVA 和 ZNA 仪器的相位设置扩展到参考面。

特性和优点

使用 ZNA-K6 的用户自定义相位

参考面上的任意相位

1. 为每个测试端口独立设置任意相位
2. 可通过系统误差校正扩展到参考面

打开灯箱

用户自定义相位 ZVA-K6

参考面上的相对任意相位

1. 测试端口之间的任意相位差
2. 相对于参考端口设置相位差
3. 可通过系统误差校正扩展到参考面

打开灯箱

自动化真实差分测量 ZNA-K61、ZVA-K6

直接准确的真实差分测量

1. 全自动化扫描
2. 每个数据点的真实差分激励
3. 使用固定频率和功率的相位不平衡扫描
4. 使用固定频率和相位的幅度不平衡扫描

打开灯箱

可用型號

可用型號
型号
支持的矢量网络分析仪
参考面的绝对相位
独立端口/信号源
真实差分
幅度不平衡/相位不平衡
相位分辨率

R&S®ZNA-K6

订单号码 1332.5413.02

支持的矢量网络分析仪
参考面的绝对相位
是,任意
独立端口/信号源
真实差分
幅度不平衡/相位不平衡
否/否
相位分辨率
<0,1°

R&S®ZNA-K61

订单号码 1332.5442.02

支持的矢量网络分析仪
参考面的绝对相位
0° 和 180°
独立端口/信号源
否,相对于另一个测试端口
真实差分
幅度不平衡/相位不平衡
是/是
相位分辨率
<0,1°

R&S®ZVA-K6

订单号码 1164.1540.02

支持的矢量网络分析仪
参考面的绝对相位
是,任意
独立端口/信号源
否,相对于另一个测试端口
真实差分
幅度不平衡/相位不平衡
是/是
相位分辨率
0,1°
