R&S®ZNLx-B1 频谱分析仪

R&S®ZNLx-B1 频谱分析仪
打开灯箱
R&S®ZNLx-B1 spectrum analyzer, Application Image

主要特点

  • 集成式硬件
  • 完整的频谱分析仪
  • 模拟解调
  • 数字解调

R&S®ZNLx-B1:全集成式频谱分析仪

配备 R&S®ZNL3-B1/R&S®ZNL4-B1/R&S®ZNL6-B1 专用硬件选件,分析仪基本单元可升级频谱分析仪功能。仪器无需重启,即可切换模式。

特性和优点

集成式硬件

R&S®ZNL3-B1、R&S®ZNL4-B1 和 R&S®ZNL6-B1 是专用硬件选件,可提供媲美于经济型和中档频谱分析仪的出色性能。配备频谱分析仪硬件后,R&S®ZNL 在 10 kHz 偏移下的相位噪声典型值为 –108 dBc (1 Hz),三阶截止点典型值为 +20 dBm,显示平均噪声电平 (DANL) 典型值为 –150 dBm。

打开灯箱

显示矢量网络分析仪测量(两个不同的显示图)。

完整的频谱分析仪

在频谱分析仪模式中,分析仪提供的功能与传统频谱分析仪一致。分析仪能够在所选频率范围、分辨率和扫描时间内测量射频输入信号的频谱,还可以显示固定频率下的视频信号波形。频谱分析仪功能包含 I/Q 分析仪,这是用于数字信号分析的标准功能。

打开灯箱

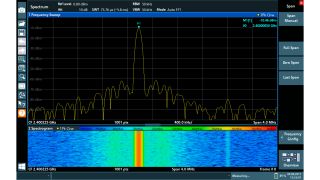

频谱分析仪模式:R&S®ZNL 提供标准频谱分析仪的所有功能。

模拟解调

R&S®FPL1-K7 选件为 R&S®ZNL 增加了模拟解调的功能。此功能不仅测定调幅、调频和调相信号的特性,还测量残余调频和同步调制等其他因素。

打开灯箱

模拟解调菜单概览:可访问所有设置功能。

数字解调

R&S®ZNL 配备 R&S®ZNL3-B1、R&S®ZNL4-B1 或 R&S®ZNL6-B1 选件后,可以借助高达 40 MHz 的分析带宽分析和解调数字调制单载波信号。R&S®ZNL 接收信号并将其数字化,然后由 R&S®VSE 矢量信号分析软件结合 R&S®VSE-K70 和/或 R&S®VSE-K106 选件分析这些数据。软件可以直接在 R&S®ZNL 或外部电脑上运行。

打开灯箱

模拟解调菜单概览:可访问所有设置功能。

可用型號

可用型號
型号
频谱分析仪模式
解调

R&S®ZNL3-B1

订单号码 1323.1802.02

频谱分析仪模式
基于硬件
解调
模拟和数字

R&S®ZNL4-B1

订单号码 1303.8099.02

频谱分析仪模式
基于硬件
解调
模拟和数字

R&S®ZNL6-B1

订单号码 1323.2067.02

频谱分析仪模式
基于硬件
解调
模拟和数字
