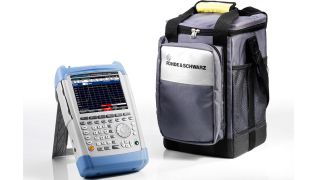

R&S®FSH 手持式频谱分析仪

彰显移动性能

R&S®FSH 手持式频谱分析仪
打开灯箱
R&S®FSH 手持式频谱分析仪
打开灯箱
R&S®FSH 手持式频谱分析仪
打开灯箱
R&S®FSH 手持式频谱分析仪
打开灯箱
R&S®FSH 手持式频谱分析仪
打开灯箱
R&S®FSH 手持式频谱分析仪
打开灯箱
R&S®FSH 手持式频谱分析仪
打开灯箱
R&S®FSH 手持式频谱分析仪
打开灯箱
R&S®FSH 手持式频谱分析仪
打开灯箱

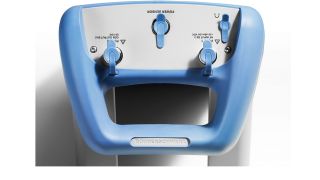

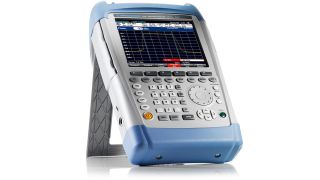

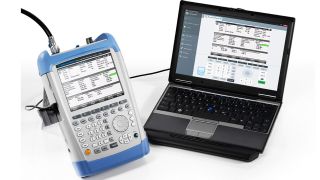

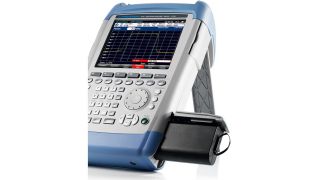

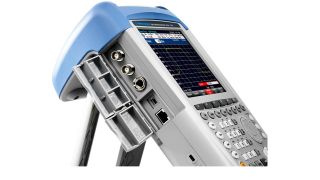

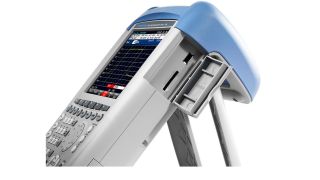

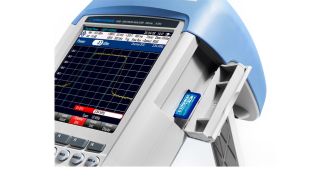

R&S®FSH 手持式频谱分析仪,前视图 R&S®FSH 手持式频谱分析仪,侧视图 R&S®FSH 手持式频谱分析仪,后视图 R&S®FSH 手持式频谱分析仪,侧视图 R&S®FSH 手持式频谱分析仪,侧视图 R&S®FSH 手持式频谱分析仪,应用图像 R&S®FSH 手持式频谱分析仪,侧视图 R&S®FSH 手持式频谱分析仪,应用图像 R&S®FSH 手持式频谱分析仪,应用图像

主要特点

  • 9 kHz 至 20 GHz
  • 出色的灵敏度,使用前置放大器时 < –161 dBm (1 Hz)
  • 一体化的频谱分析仪、网络分析仪和电缆与天线测试仪
  • 内部跟踪源、VSWR 电桥、偏置器
  • 采用坚固耐用的防水外壳,适用于现场应用
  • 3 年延长保修

该一体化手持式分析仪非常适合现场的常规测量任务

R&S®FSH 手持式频谱分析仪还可以用作网络分析仪、电缆与天线分析仪、干扰捕获分析仪和功率计。这款多功能分析仪可实现简单高效的现场测量。坚固设计和内置手柄使其非常适用于户外任务。

特性和优点

多功能分析仪

R&S®FSH 手持式频谱分析仪具备用于室内外应用的各类基本功能:

  • 发射台安装和维护
  • 分析发射信号(LTE、NB-IoT、TD-SCDMA、WCDMA、CDMA、GSM 等)
  • 信道功率和杂散测量
  • 电缆和天线测量
  • 标量或矢量网络分析
  • 干扰分析
  • 场强测量
  • 实验室或维修中的 EMI 诊断

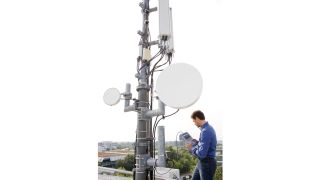

现场应用的必备工具
打开灯箱

现场应用的必备工具

非常适用于电缆测量和空口测量

可靠伙伴

R&S®FSH 手持式频谱分析仪提供多种型号。这款一体化分析仪具备内置跟踪源、VSWR 电桥和偏置器。无需使用多台分析仪以进行现场测量。

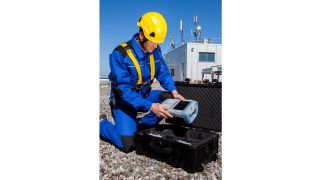

准备就绪
打开灯箱

准备就绪

只需一台分析仪

优越的射频性能

R&S®FSH 手持式频谱分析仪体型虽小,但具备优异的灵敏度和三阶截止点特性。分析仪具有良好的动态范围,可处理低功率和高功率信号。

  • 使用前置放大器时的 DANL(分辨率带宽 = 1 Hz,归一化),8 GHz 至 13.6 GHz:–162 dBm 典型值
  • TOI (IP3),300 MHz 至 3.6 GHz:+15 dBm 典型值

值得信赖的分析仪
打开灯箱

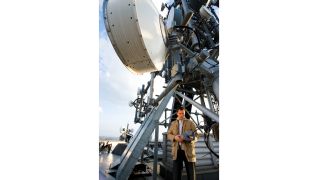

值得信赖的分析仪

用户可以一直信赖 R&S®FSH 手持式频谱分析仪并进行测量

精简准备工作

如果您的现场操作时间有限, 则可以在前往现场之前,使用 R&S®InstrumentView 软件预先定义测量参数和步骤。这可以节省时间,并减少现场出现的人为错误。

使用 R&S®InstrumentView 提高生产率
打开灯箱

使用 R&S®InstrumentView 提高生产率

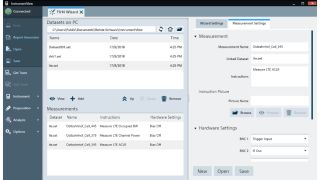

借助 R&S®InstrumentView 软件,用户可以使用向导功能或 EMF 配置选项卡预先定义测试设置。

可用型號

可用型號
型号
频率范围
相位噪声
DANL(1 GHz 时)
最大分析带宽
仪器类型
裸机价格

R&S®FSH4

订单号码 1309.6000.04

频率范围
9 kHz - 3.6 GHz
相位噪声
–127 dBc (1 Hz)(f = 500 MHz,1 MHz 偏置)
DANL(1 GHz 时)
–163 dBm
最大分析带宽
-
仪器类型
信号与频谱分析仪
裸机价格
价格要求

R&S®FSH4

订单号码 1309.6000.14

频率范围
9 kHz - 3.6 GHz
相位噪声
–127 dBc (1 Hz)(f = 500 MHz,1 MHz 偏置)
DANL(1 GHz 时)
–163 dBm
最大分析带宽
-
仪器类型
信号与频谱分析仪
裸机价格
价格要求

R&S®FSH4

订单号码 1309.6000.24

频率范围
100 kHz - 3.6 GHz
相位噪声
–127 dBc (1 Hz)(f = 500 MHz,1 MHz 偏置)
DANL(1 GHz 时)
–163 dBm
最大分析带宽
-
仪器类型
组合分析仪
裸机价格
价格要求

R&S®FSH8

订单号码 1309.6000.08

频率范围
9 kHz - 8 GHz
相位噪声
–127 dBc (1 Hz)(f = 500 MHz,1 MHz 偏置)
DANL(1 GHz 时)
–163 dBm
最大分析带宽
-
仪器类型
信号与频谱分析仪
裸机价格
价格要求

R&S®FSH8

订单号码 1309.6000.18

频率范围
9 kHz - 8 GHz
相位噪声
–127 dBc (1 Hz)(f = 500 MHz,1 MHz 偏置)
DANL(1 GHz 时)
–163 dBm
最大分析带宽
-
仪器类型
信号与频谱分析仪
裸机价格
价格要求

R&S®FSH8

订单号码 1309.6000.28

频率范围
100 kHz - 8 GHz
相位噪声
–127 dBc (1 Hz)(f = 500 MHz,1 MHz 偏置)
DANL(1 GHz 时)
–163 dBm
最大分析带宽
-
仪器类型
组合分析仪
裸机价格
价格要求

R&S®FSH13

订单号码 1314.2000.13

频率范围
9 kHz - 13.6 GHz
相位噪声
–127 dBc (1 Hz)(f = 500 MHz,1 MHz 偏置)
DANL(1 GHz 时)
–163 dBm
最大分析带宽
-
仪器类型
信号与频谱分析仪
裸机价格
价格要求

R&S®FSH13

订单号码 1314.2000.23

频率范围
9 kHz - 13.6 GHz
相位噪声
–127 dBc (1 Hz)(f = 500 MHz,1 MHz 偏置)
DANL(1 GHz 时)
–163 dBm
最大分析带宽
-
仪器类型
组合分析仪
裸机价格
价格要求

R&S®FSH20

订单号码 1314.2000.20

频率范围
9 kHz - 20 GHz
相位噪声
–127 dBc (1 Hz)(f = 500 MHz,1 MHz 偏置)
DANL(1 GHz 时)
–163 dBm
最大分析带宽
-
仪器类型
信号与频谱分析仪
裸机价格
价格要求

R&S®FSH20

订单号码 1314.2000.30

频率范围
9 kHz - 20 GHz
相位噪声
–127 dBc (1 Hz)(f = 500 MHz,1 MHz 偏置)
DANL(1 GHz 时)
–163 dBm
最大分析带宽
-
仪器类型
组合分析仪
裸机价格
价格要求

可用选项

硬件选件
产品
描述
R&S®FSH-B106

订单号码 1304.5958.02

描述

锂离子电池盒,6.75 Ah

工厂安装;电池容量从 4.5 Ah 升级到 6.75 Ah

蜂窝系统
产品
描述
R&S®FSH-K10

订单号码 1304.5864.02

描述

GSM、EDGE 测量应用

R&S®FSH-K44

订单号码 1304.5641.02

描述

适用于导频通道与 EVM 测量的 3GPP WCDMA 基站收发信台/NodeB 应用

R&S®FSH-K44E

订单号码 1304.5758.02

描述

适用于码域功率测量的 3GPP WCDMA 基站收发信台/NodeB 应用

(需要 R&S®FSH-K44)

R&S®FSH-K46

订单号码 1304.5729.02

描述

适用于导频通道与 EVM 测量的 CDMA2000® 基站收发信台应用

R&S®FSH-K46E

订单号码 1304.5764.02

描述

适用于码域功率测量的 CDMA2000® 基站收发信台应用

(需要 R&S®FSH-K46)

R&S®FSH-K47

订单号码 1304.5787.02

描述

适用于导频通道与 EVM 测量的 1xEV-DO 基站收发信台应用

R&S®FSH-K47E

订单号码 1304.5806.02

描述

1xEV-DO 基站收发信台 PN 扫频仪和时域功率测量应用

需要 R&S®FSH-K47(软件许可)

R&S®FSH-K48

订单号码 1304.5841.02

描述

TD-SCDMA 基站收发信台功率和 EVM 测量

R&S®FSH-K48E

订单号码 1304.5858.02

描述

TD-SCDMA/HSDPA 基站收发信台功率和 EVM 测量

(需要 R&S®FSH-K48)

R&S®FSH-K50

订单号码 1304.5735.02

描述

适用于导频通道与 EVM 测量的 LTE FDD 下行链路应用

R&S®FSH-K50E

订单号码 1304.5793.02

描述

适用于增强型通道与调制测量的 LTE FDD 下行链路应用

(需要 R&S®FSH-K50)

R&S®FSH-K51

订单号码 1304.5812.02

描述

适用于导频通道与 EVM 测量的 LTE TDD 下行链路应用

R&S®FSH-K51E

订单号码 1304.5829.02

描述

适用于增强型通道与调制测量的 LTE TDD 下行链路应用

(需要 R&S®FSH-K51)

R&S®FSH-K56

订单号码 1318.6100.02

描述

NB-IoT 测量应用

仅适用于序列号 ≥ 105000 的 R&S®FSH 分析仪。

通用
产品
描述
R&S®FSH-K40

订单号码 1304.5606.02

描述

通过 LAN 或 USB 远程控制

R&S®FSH-K43

订单号码 1304.5635.02

描述

接收机模式和通道扫描测量

R&S®FSH-K105

订单号码 1318.6200.02

描述

EMF 测量应用

EMF 测量应用(软件许可)

R&S®FSH-K20

订单号码 1318.6600.02

描述

分段扫描。

R&S®FSH-K20 选件在频谱模式下开启第二个显示界面,单机提供两个手持式频谱分析仪。

雷达
产品
描述
R&S®FSH-K29

订单号码 1304.5993.02

描述

使用功率探头的脉冲测量(软件许可)

干扰分析
产品
描述
R&S®FSH-K14

订单号码 1304.5770.02

描述

瀑布图测量应用

R&S®FSH-K15

订单号码 1309.7488.02

描述

干扰分析测量应用(软件许可)

R&S®FSH-K16

订单号码 1309.7494.03

描述

地理标记测量应用

R&S®FSH-K17

订单号码 1304.5893.02

描述

室内测绘测量应用(软件许可)

CAT/VNA 测量
产品
描述
R&S®FSH-K41

订单号码 1304.5612.02

描述

故障点距离测量

(仅适用于 .24/.28/.23/.30 型号,建议使用 R&S®FSH-Z320 或 R&S®FSH-Z321 和 R&S®FSH-Z28 或 R&S®FSH-Z29)

R&S®FSH-K42

订单号码 1304.5629.02

描述

矢量反射和传输测量

(仅适用于 .24/.28 型号,需要 R&S®FSH-Z28 或 R&S®FSH-Z29,.23/.30 型号标配单端口反射和传输测量功能)

R&S®FSH-K45

订单号码 1304.5658.02

描述

矢量电压表

(仅适用于 .24/.28/.23/.30 型号,需要 R&S®FSH-Z28 或 R&S®FSH-Z29)

仪器安全
产品
描述
R&S®FSH INSTRUMENT SECURITY

订单号码 1173.9128.52

描述

电脑软件
产品
描述
R&S®Instrument view

订单号码 1328.7315.00

描述

R&S®FSH 手持式频谱分析仪 – 视频

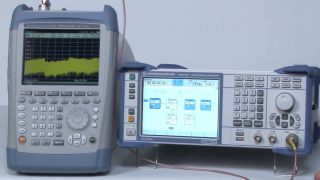

LTE Signal Measurements Using the R&S®FSH Handheld Spectrum Analyzer
