主要特点
- 轻松查看和分析视频信号
- 通过直观的用户界面快速设置测试
- 使用点击拖拽工具可对视图进行精细调整
Video raster analysis 示波器软件
总体分析
显示更多详细信息
显示更多详细信息
示波器软件

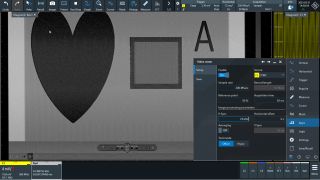

视频栅格分析选件支持使用示波器的固件界面分析视频信号。 该应用程序能够以 XYZ 模式显示采集的信号，还可以根据所需的行同步 (H-Sync) 频率和水平偏移时间对波形进行切片。使用点击拖拽功能可以轻松调整这两个参数。这样可加快设置和图像可视化的速度，为用户带来流畅的使用体验。
特性和优点
直观的用户界面
只需在直观的用户界面中使用示波器固件内置的少量强大命令，就能快速设置视频栅格测试。
显示更多详细信息
在时域中直接操作和测量

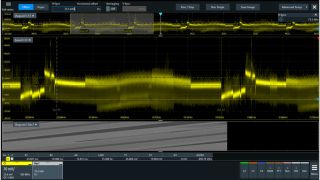

您可以实时或在时域中显示、测量和调整信号，从而轻松测量栅格参数，并将其直接应用到可视化工具中。设置合适的触发后，使用波形上的光标直接测量信号的周期性和频率即可。
显示更多详细信息
点击拖拽功能

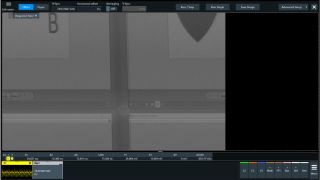

使用点击拖拽功能轻松直观地精确调整偏移和斜率 (H-Sync)。只需选择想要更改的设置类型，然后在图像中点击目标点，就可以拖拽鼠标来调整可视化的斜率和偏移。
显示更多详细信息
