主要特点
- 频率范围:最高 26.5 GHz
- 易于配置
- 支持完整交叉开关测量
- 结合 R&S®ZNA、R&S®ZNB、R&S®ZNBT 和 R&S®ZND 轻松进行设置
- 远程控制:LAN、USB、直接控制接口、BNC 触发
主要特点

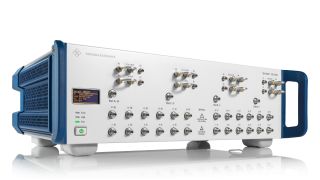

R&S®ZN-Z8x 开关矩阵经过优化设计,专门用于罗德与施瓦茨的矢量网络分析仪。这款经济高效的多方位解决方案可用于多端口设备或多个设备的简单和复杂的测量任务。开关矩阵支持宽频率范围,并提供可配置的端口扩展选件。其他特性包括支持完整的交叉开关测量、硬件触发、自动分配测试端口、轻松进行调整和提供配套的 R&S®ZN‑Z8X 工具箱软件等。开关矩阵还提供多个附件,能够方便简单地进行集成。罗德与施瓦茨的开关矩阵坚固可靠,协助用户充分准备好满足未来的测量任务需求。
经济高效的多端口扩展理念

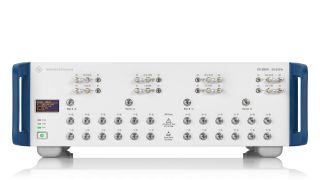

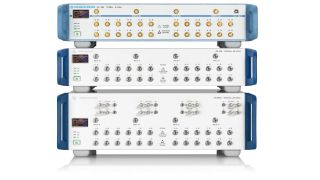

罗德与施瓦茨的开关矩阵广泛用于多种应用。典型应用包括设计、验证和生产天线阵列、数据转换器接口、射频组件和其他器件等。 R&S®ZN-Z8x 开关矩阵支持宽频率范围,并采用模块化的端口扩展概念。 R&S®ZN-Z86 和 R&S®ZN-Z86X 等矩阵型号支持最高 26.5 GHz 的频率范围,并提供选件以扩展至 24 个输出端口。 连接两个 R&S®ZN-Z84 或 R&S®ZN-Z86 开关矩阵可将测试端口增加到 48 个。 开关矩阵还可以和 R&S®ZNBT 等多端口矢量网络分析仪结合使用,从而大幅增加测试端口的数量,并支持并行测试。

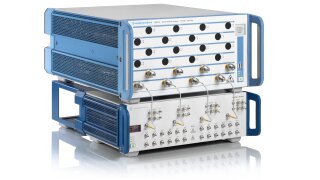

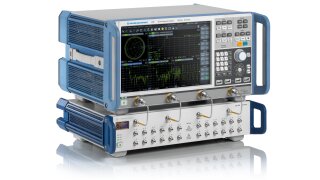

R&S®ZN-Z8x 开关矩阵、R&S®OSP 和罗德与施瓦茨矢量网络分析仪
提高效率和性能
用户可以使用罗德与施瓦茨矢量网络分析仪和开关矩阵选择并调整最佳配置,以确保低插入损耗、精度和多端口设置。
根据被测设备需求,装置可集成衰减器和前置放大器等其他组件
轻松进行设置和配置
R&S®ZN-Z8x 开关矩阵经过优化设计,专门用于罗德与施瓦茨的矢量网络分析仪。开关矩阵设置简单,开箱即可执行测量。

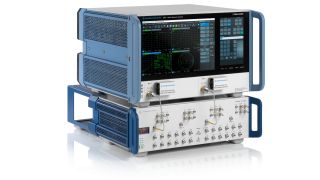

R&S®ZNB 配备 R&S®ZN-Z86。R&S®ZN-Z8x 和罗德与施瓦茨的矢量网络分析仪相结合,能够轻松进行设置和操作。开关矩阵还提供多个附件,能够方便简单地进行集成。
实现先进的自动化操作
R&S®ZN-Z86 和 R&S®ZN-Z86X 开关矩阵标配硬件触发功能。 触发功能的关键优势包括:
借助 R&S®ZN-Z8X 工具箱软件,可以使用鼠标方便地进行触发设置和操作
使用便捷,节省时间和精力。

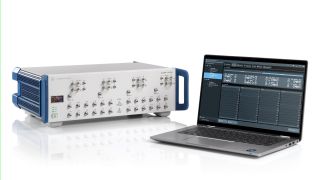

R&S®ZN-Z8X 工具箱软件有助于用户开始实测、监测设备和更新固件,并为连接的开关矩阵手动切换定义的路径。
使用 R&S®ZN-Z8X 工具箱软件方便地管理开关矩阵
使用多端口校准单元实现“3E”校准
校准过程遵循“3E”原则——简单 (Easy)、高效 (Efficient)、无误 (Error-free)。
提供多种校准附件和选件
订单号码 1319.4969.22
附加测试端口 7 至端口 12,2 个 VNA 端口扩展至 12 个测试端口
需要 R&S®ZN-Z84 基本单元。
订单号码 1319.4969.24
附加测试端口 7 至端口 12,4 个 VNA 端口扩展至 12 个测试端口
需要 R&S®ZN-Z84 基本单元。
订单号码 1319.4969.32
附加测试端口 13 至端口 18,2 个 VNA 端口扩展至 18 个测试端口
需要 R&S®ZN-Z84 基本单元和 R&S®ZN-Z84-B22。
订单号码 1319.4969.34
附加测试端口 13 至端口 18,4 个 VNA 端口扩展至 18 个测试端口
需要 R&S®ZN-Z84 基本单元和 R&S®ZN-Z84-B24。
订单号码 1319.4969.42
附加测试端口 19 至 24,2 个 VNA 端口扩展至 24 个测试端口
需要 R&S®ZN-Z84 基本单元和 R&S®ZN-Z84-B32。
订单号码 1319.4969.44
附加测试端口 19 至 24,4 个 VNA 端口扩展至 24 个测试端口
需要 R&S®ZN-Z84 基本单元和 R&S®ZN-Z84-B34。
订单号码 1351.2900.22
附加测试端口 7 至端口 12,2 个 VNA 端口扩展至 12 个测试端口。
需要 R&S®ZN-Z86 基本单元。
订单号码 1351.2900.24
附加测试端口 7 至端口 12,4 个 VNA 端口扩展至 12 个测试端口。
需要 R&S®ZN-Z86 基本单元。
订单号码 1351.2900.32
附加测试端口 13 至端口 18,2 个 VNA 端口扩展至 18 个测试端口。
需要 R&S®ZN-Z86 基本单元和 R&S®ZN-Z86-B22。
订单号码 1351.2900.34
附加测试端口 13 至端口 18,4 个 VNA 端口扩展至 18 个测试端口。
需要 R&S®ZN-Z86 基本单元和 R&S®ZN-Z86-B24 基础选件。
订单号码 1351.2900.42
附加测试端口 19 至端口 24,2 个 VNA 端口扩展至 24 个测试端口。
需要 R&S®ZN-Z86 基本单元和 R&S®ZN-Z86-B32。
订单号码 1351.2900.44
附加测试端口 19 至端口 24,4 个 VNA 端口扩展至 24 个测试端口。
需要 R&S®ZN-Z86 基本单元和 R&S®ZN-Z86-B34。
订单号码 1351.2222.24
将 2 或 4 个 VNA 端口扩展至 12 个测试端口。
需要 R&S®ZN-Z86X 基本单元。
订单号码 1351.2222.44
将 2 或 4 个 VNA 端口扩展至 24 个测试端口。
需要 R&S®ZN-Z86X 基本单元。
订单号码 1175.3010.00
19" 机架适配器
用于将一个 19" 外壳(2 HU 高)安装在标准 19" 机架中
订单号码 1177.8803.00
19’’ rack adapter for devices with 2 height units
机架安装套件,适用于 R&S®MXO 5C 示波器,2 HU
订单号码 1177.8810.00
适用于 3 HU 型号的 19" 机架适配器
订单号码 1351.3906.02
基本单元扩展盒,2 HU
适用于 R&S®ZN-Z84/5/6 开关矩阵,台式操作
订单号码 1351.3906.03
基本单元扩展盒,3 HU
适用于 R&S®ZN-Z86X 开关矩阵,台式操作
订单号码 1323.9290.00
直接控制电缆
订单号码 1326.6605.02
半刚性电缆 N 型阳性/3.5 mm 阳性
将两个具备 2 至 24 个端口的 R&S®ZN-Z84 连接到四端口 R&S®ZNB4/8
订单号码 1328.8905.02
半刚性电缆 2.92 mm 阴性转 2.92 mm 阳性
射频电缆组件用于连接 R&S®ZNA26/43 和 R&S®ZN-Z86,台式操作。
订单号码 1328.8905.03
半刚性电缆 2.92 mm 阴性转 2.92 mm 阳性
射频电缆组件用于连接 R&S®ZNA26/43 和 R&S®ZN-Z86X,台式操作。
订单号码 1328.8911.02
半刚性电缆 2.92 mm 阴性转 2.92 mm 阳性
射频电缆组件用于连接 R&S®ZNB26/43 和 R&S®ZN-Z86,台式操作。
订单号码 1328.8911.03
半刚性电缆 2.92 mm 阴性转 2.92 mm 阳性
射频电缆组件用于连接 R&S®ZNB26/43 和 R&S®ZN-Z86X,台式操作。
订单号码 1328.8911.05
半刚性电缆 2.92 mm 阴性转 2.92 mm 阳性
将两个具备 2 至 24 个端口的 R&S®ZN-Z86 连接到四端口 R&S®ZNB26/43
订单号码 1328.8928.02
半刚性电缆 2.92 mm 阴性转 2.92 mm 阳性
射频电缆组件用于连接 R&S®ZNBT26/40 和 R&S®ZN-Z86,台式操作。
订单号码 1328.8928.03
半刚性电缆 2.92 mm 阴性转 2.92 mm 阳性
射频电缆组件用于连接 R&S®ZNBT26/40 和 R&S®ZN-Z86X,台式操作。
订单号码 1339.4006.02
半刚性电缆 2.92 mm 阴性转 2.92 mm 阳性
射频电缆组件用于连接双端口 R&S®ZNA26/43 和具有 6 或 12 个端口的 R&S®ZN-Z85 开关矩阵,台式操作。
订单号码 1339.4006.03
半刚性电缆 1.85 mm 阴性转 2.92 mm 阳性
射频电缆组件用于连接双端口 R&S®ZNA50/67 和具有 6 或 12 个端口的 R&S®ZN-Z85 开关矩阵,台式操作。
订单号码 1339.4006.04
半刚性电缆 2.92 mm 阴性转 2.92 mm 阳性
射频电缆组件用于连接四端口 R&S®ZNA26/43 和六端口 R&S®ZN-Z85 开关矩阵,台式操作。
订单号码 1339.4006.05
半刚性电缆 1.85 mm 阴性转 2.92 mm 阳性
射频电缆组件用于连接四端口 R&S®ZNA50/67 和六端口 R&S®ZN-Z85 开关矩阵,台式操作。
订单号码 1339.4006.06
半刚性电缆 2.92 mm 阴性转 2.92 mm 阳性
射频电缆组件用于连接四端口 R&S®ZNA26/43 和 12 端口 R&S®ZN-Z85 开关矩阵,台式操作。
订单号码 1339.4006.07
半刚性电缆 1.85 mm 阴性转 2.92 mm 阳性
射频电缆组件用于连接四端口 R&S®ZNA50/67 和 12 端口 R&S®ZN-Z85 开关矩阵,台式操作。
