R&S®ZN-Z5x 自动校准单元

型号频率最高为 50 GHz，提供 2 个和 4 个端口，端口可配置

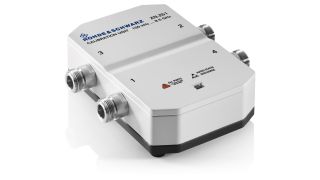

R&S®ZN-Z5x 自动校准单元
R&S®ZN-Z5x automatic calibration units, 3D
R&S®ZN-Z5x automatic calibration units, 3D
打开灯箱

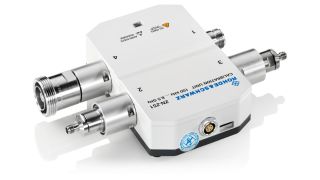

R&S®ZN-Z5x 自动校准单元
R&S®ZN-Z5x automatic calibration units, Side view
R&S®ZN-Z5x automatic calibration units, Side view
打开灯箱

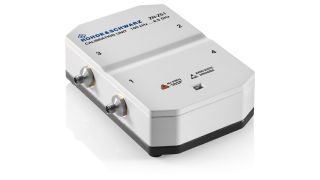

R&S®ZN-Z5x 自动校准单元
R&S®ZN-Z5x automatic calibration units, Side view
R&S®ZN-Z5x automatic calibration units, Side view
打开灯箱

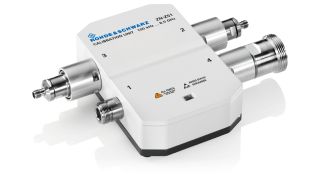

R&S®ZN-Z5x 自动校准单元
R&S®ZN-Z5x automatic calibration units, Side view
R&S®ZN-Z5x automatic calibration units, Side view
打开灯箱
R&S®ZN-Z5x automatic calibration units, 3D R&S®ZN-Z5x automatic calibration units, Side view R&S®ZN-Z5x automatic calibration units, Side view R&S®ZN-Z5x automatic calibration units, Side view

主要特点

  • 9 kHz 至 50 GHz 的宽频率范围
  • 几乎无需预热
  • 自动检测和 USB 控制
  • 支持多端口校准
获取报价

高端自动矢量网络分析仪校准单元

涵盖 8.5 GHz 至 50 GHz 频率，2 个和 4 个端口，可配置

型号的频率范围介于 9 kHz 至 50 GHz，并支持 N 型、3.5 mm、2.92 mm 和 2.4 mm 连接器（视频率范围而定）。校准单元提供 2 个或 4 个端口。通过重新连接，校准单元还支持 R&S®ZNBT、R&S®ZNB 和开关矩阵系统多端口校准。R&S®ZN-Z51 的频率范围高达 8.5 GHz，每个端口都可单独配置：标准版本提供 3.5 mm（阴性）和 N 型（阴性）端口，但每个端口可以单独订购为 3.5 mm（阴性或阳性）、N 型（阴性或阳性）、7/16（阴性或阳性）或 4.3-10 端口。

快速链接

特性和优点

宽频率范围

覆盖 9 kHz 至 50 GHz 频率范围

ZN-Z5x 自动校准单元的频率范围支持罗德与施瓦茨网络分析仪的主要频率范围。高频型号提供最低 100 kHz 和 9 kHz 频率，可用于广泛的应用范围。

可配置的测试端口类型

支持混合连接器系统

8.5 GHz ZN-Z51 型号（*.72 双端口型号和 *.74 四端口型号）的每个端口可以单独进行配置。每个端口可以长期更改为 N 型（阳性）、3.5 mm（阳性、阴性）、7/16（阳性、阴性）和 4.3-10（阴性）端口（具体参见选件）。

自动配置和检测

即插即用型校准

ZN-Z5x 校准单元可通过 USB 连接自动检测。所有必要数据传输至矢量网络分析仪。开始校准时，可以一键查看端口分配情况。用户可以轻松、快速、非常可靠地启动校准。

可用型号

可用选项
