主要特点
- 用于 R&S®ZNA、R&S®ZVA 或 R&S®ZVT20;
- 高输出功率和动态范围
- 可变输出功率
- 自动参数设置,易于操作
- 出色的测量稳定性

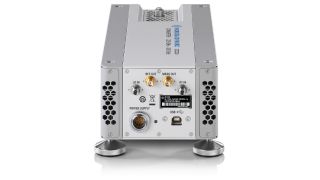

R&S®ZCxxx 毫米波变频器将 R&S®ZNA、R&S®ZVA 或 R&S®ZVT 的频率范围扩展到 1.1 THz,并能够在 50 GHz 至 1100 GHz 频率范围内进行测量(使用 WR15、WR12、WM-2540、WM-2032、WM-1651、WM-1295、WM-1092、WM-864、WM-710、WM-570、WM-380 和 WM-250)。该仪器具备宽动态范围和高输出功率。此外,该仪器还具备出色的操作便利性,并且测量高度稳定。
订单号码 1323.8259.02
订单号码 1323.7600.02
订单号码 1323.7600.04
订单号码 1323.7617.02
订单号码 1323.7623.02
订单号码 1323.7630.02
订单号码 1323.7630.03
订单号码 1323.7646.02
订单号码 3628.5682.02
订单号码 3656.9220.02
订单号码 1323.7681.02
订单号码 1323.7717.02
订单号码 1323.7723.02
订单号码 1325.6101.02
变频器电源(适用于两个变频器)
订单号码 1323.8159.12
电源线,1.2 m
订单号码 1323.8159.16
电源线,1.6 m
订单号码 1323.8159.20
电源线,2 m
订单号码 1307.7500.30
波导校准套件 WR15,50 GHz 至 75 GHz(无滑动匹配件)
订单号码 1307.7500.31
波导校准套件 WR15,50 GHz 至 75 GHz(含滑动匹配件)
订单号码 1307.7700.10
波导校准套件 WR12,60 GHz 至 90 GHz(无滑动匹配件)
订单号码 1307.7700.11
波导校准套件 WR12,60 GHz 至 90 GHz(含滑动匹配件)
订单号码 1307.7100.10
波导校准套件 WR10,75 GHz 至 110 GHz(无滑动匹配件)
订单号码 1307.7100.11
波导校准套件 WR10,75 GHz 至 110 GHz(含滑动匹配件)
订单号码 1307.7900.10
波导校准套件 WR08,90 GHz 至 140 GHz(无滑动匹配件)
订单号码 1307.7900.11
波导校准套件 WR08,90 GHz 至 140 GHz(含滑动匹配件)
订单号码 1311.8807.10
波导校准套件 WR06,110 GHz 至 170 GHz(无滑动匹配件)
订单号码 1311.8807.11
波导校准套件 WR06,110 GHz 至 170 GHz(含滑动匹配件)
订单号码 1307.8106.10
波导校准套件 WR05,140 GHz 至 220 GHz(无滑动匹配件)
订单号码 1307.8106.11
波导校准套件 WR05,140 GHz 至 220 GHz(含滑动匹配件)
订单号码 3628.5699.02
波导校准套件 WM-1092,170 GHz 至 260 GHz
订单号码 1307.7300.30
波导校准套件 WR03,220 GHz 至 325 GHz(无滑动匹配件)
订单号码 1307.7300.31
波导校准套件 WR03,220 GHz 至 325 GHz(含滑动匹配件)
订单号码 1339.4070.02
波导校准套件 WM-710,260 GHz 至 400 GHz
订单号码 1322.3099.10
波导校准套件 WM-570,330 GHz 至 500 GHz
适用于 R&S®ZC500;
订单号码 1314.5550.10
波导校准套件 WR02,325 GHz 至 500 GHz
适用于 R&S®ZVA-Z500;
订单号码 1322.3101.02
波导校准套件 WM-380,500 GHz 至 750 GHz
订单号码 1322.3118.02
波导校准套件 WM-250,750 GHz 至 1100 GHz
订单号码 1332.5388.02

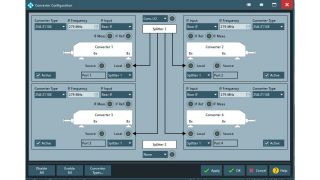

变频器控制软件
(用于 R&S®ZNA、R&S®ZVA-Zxxx、R&S®ZCxxx);
订单号码 1307.7022.02
变频器控制
(用于 R&S®ZVA24/40/50/67);
订单号码 1302.5544.02
USB 转 IEC/IEEE 适配器
(用于通过 IEC/IEEE 总线控制外部设备)
订单号码 1323.7730.00
变频器装置运输箱
订单号码 1323.7746.24
适配器套件
包括一个功率分配器和两个直角 SMA(阳性/阳性)适配器(如果使用 R&S®ZVA24/28 或 R&S®ZVA40/48(带四个信号源的 VNA),则需要)
订单号码 1323.7746.50
适配器套件
包括四个 1.85 mm(阴性)转 2.92 mm(阳性)适配器和四个 1.85 mm(阳性)转 2.92 mm(阴性)适配器(如果使用 R&S®ZVA50,则需要)
订单号码 1323.7746.67
适配器套件
包括一个功率分配器、两个直角 SMA(阳性/阳性)适配器、三个 1.85 mm(阴性)转 2.92 mm(阳性)适配器和四个 1.85 mm(阳性)转 2.92 mm(阴性)适配器(如果使用 R&S®ZVA67,则需要)
订单号码 1314.5467.02
适用于波导法兰螺丝的力矩扳手
订单号码 1175.1960.00
适用于波导法兰螺丝的角型扳手
订单号码 1175.2014.02
适用于波导法兰螺丝的力矩扳手
订单号码 1175.2014.03
适用于波导法兰螺丝的力矩扳手
