罗德与施瓦茨为 DisplayPort 1.4a 和嵌入式 DisplayPort 1.4b/1.5 提供符合 VESA 规范的自动化一致性测试解决方案。罗德与施瓦茨 ScopeSuite 一致性测试软件向导通过分步说明指导用户完成测试流程。软件还可以通过 Unigraf UCD-323 接收仿真器来自动配置设备。用户可以将结果记录在可配置的测试报告中。

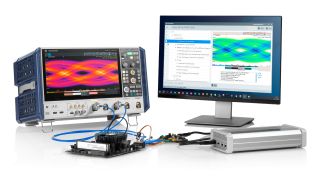

DP 1.4a 和 eDP 1.4b/1.5 一致性选件包含高速通道和 AUX 通道要求的所有一致性测试。选件还支持通过 Unigraf UCD-323 接收仿真器配置被测设备，并指导用户使用 Wilder Technologies 测试夹具连接被测设备。
DP 1.4a 测试项

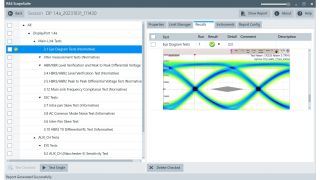

一致性测试要求完成各种高速信号通道和 AUX 信号评估。
为您提供指导

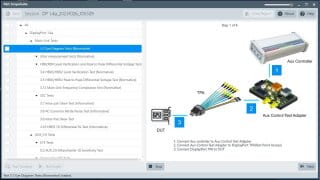

R&S®ScopeSuite 向导通过详细的图示说明指导用户完成测试。这可以简化工作，并且减少可能出现的设置错误。
步骤指南
向导指导用户设置并执行测试。
所有信息均包含在内

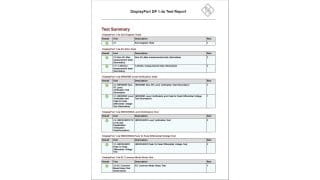

测试结果详尽记录在 R&S®ScopeSuite 报告中。测试报告可以包含不同程度的结果详情和示波器屏幕截图，具体取决于用户的偏好设置。报告格式包括 PDF、DOC 和 HTML。
一致性测试报告
包含用户需要的数据详情。
| 推荐的配置 | DisplayPort 1.4a - HRB3（8.1 Gbps/通道） | -RTP134 13 GHz 示波器或更高 -RTP-K114 DP 1.4a 一致性测试选件 -RTP-K133 高级抖动分析 -RTP-K137 16 Gbps 高级眼图分析 -RTP-K141 16 Gbps 串行码型触发 -RT-ZA17 匹配双股电缆 -2x RT-ZS10（用于 AUX 通道测试） -Unigraf UCD-232 接收仿真器，通过 www.unigraf.fi/shop 网站下单 -测试夹具 DP-TPA-A（主链路）、DP-TPA-A（AUX 通道），通过 www.wilder-tech.com/en/products/displayport 网站下单 |
| 嵌入式 DisplayPort 1.4b/1.5 - HBR3（8.1 Gbps/通道） | -RTP134 13 GHz 示波器或更高 -RTP-K115 eDP 1.4b/1.5 一致性测试选件 -RTP-K133 高级抖动分析 -RTP-K137 16 Gbps 高级眼图分析 -RT-ZA17 匹配双股电缆 -2x RT-ZS10（用于 AUX 通道测试） -Unigraf UCD-232 接收仿真器，通过 www.unigraf.fi/shop 网站下单 -测试夹具 EDP-TPA30/40L-P（主链路）、eDP-TPA-A（AUX 通道），通过 www.wilder-tech.com/en/products/displayport 网站下单 |
|
