主要特点
- DDR5、DDR4/LPDDR4 和 DDR3/DDR3L/LPDDR3 自动化一致性测试解决方案

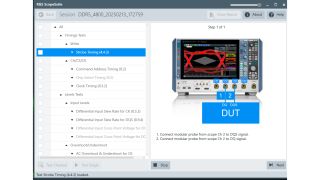

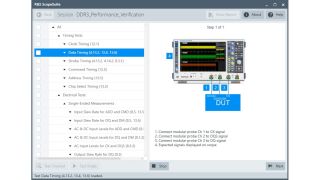

- 分步向导指南

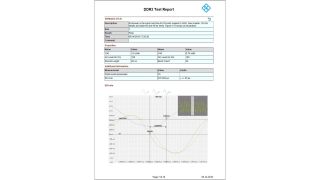

- 清晰且完整的测试记录

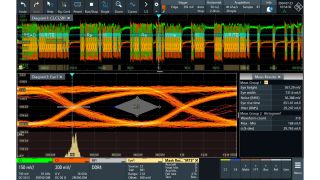

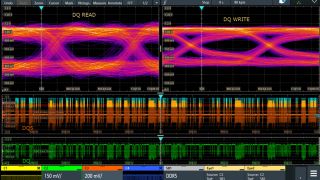

- 使用数据眼图视图进行信号完整性调试

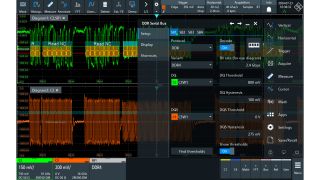

- 解码读写周期
主要特点
R&S®RTP-K94、R&S®RTP-K93 和 R&S®RTP/RTO-K91 选件支持 DDR5、DDR4/LPDDR4 和 DDR3/DDR3L/LPDDR3 接口的信号完整性调试和自动化一致性测试。测试向导通过图示分步说明指导用户完成一致性测试。可配置的测试报告用于记录测试结果。选件还支持通过集成式眼图功能和读写周期解码进行信号完整性调试。
支持的一致性测试 | 定时测试 电气测试单端测量 电气测试差分测量 调试 |
|
解码 | 协议配置 解码 搜索 |
|
眼图 | 通用说明 常规配置 显示 认证 滤波器 模板测试 |
|
推荐的配置 | R&S®RTP-K91 | - RTP064 6 GHz 示波器 - RTP-K121 去嵌 - 3 x RT-ZM60 6 GHz 模块化探头 - 3 x RT-ZMA14 焊接式探头前端 - RTP-K121 去嵌 - 插补器:从 Nexus Technologies 或 EyeKnowHow 订购 |
R&S®RTO-K91 | - RTO2044 4 GHz 示波器 - RTO-K121 去嵌 - 3 x RT-ZM60 6 GHz 模块化探头 - 3 x RT-ZMA14 焊接式探头前端 - 插补器:从 Nexus Technologies 或 EyeKnowHow 订购 |
|
R&S®RTP-K93 | - RTP084 8 GHz 示波器 - RTP-K121 去嵌 - 3 x RT-ZM90 9 GHz 模块化探头 - 3 x RT-ZMA14 焊接式探头前端 - 插补器:从 Nexus Technologies 或 EyeKnowHow 订购 |
|
R&S®RTP-K94 | - RTP164 16 GHz 示波器 - RTP-K121 去嵌 - 2 x RT-ZM160 160 GHz 模块化探头 - 1 x RT-ZM90 9 GHz 模块化探头 - 3 x RT-ZMA14 焊接式探头前端 - 插补器:从 Nexus Technologies 或 EyeKnowHow 订购 |
|
LPDDR5: | - RTP164 16 GHz oscilloscope - RTP-K95 LPDDR5 compliance - RTP-K121 deembedding (for interposer) - RTP-K126 embedding/equalization (for DFE) - RTP-K133 Jitter decomposition (for Clock jitter) - 2x RT-ZM160 160 GHz modular probe - 1x RT-ZM90 9 GHz modular probe - 3x RT-ZMA14 solder-in tips - interposer: order from Nexus Technologies or EyeKnowHow |
