R&S®FSC 频谱分析仪

专业频谱分析——紧凑设计,经济实惠

R&S®FSC 频谱分析仪
打开灯箱
R&S®FSC 频谱分析仪
打开灯箱
R&S®FSC 频谱分析仪
打开灯箱
R&S®FSC 频谱分析仪
打开灯箱
R&S®FSC 频谱分析仪
打开灯箱

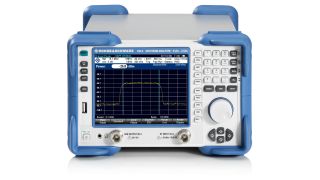

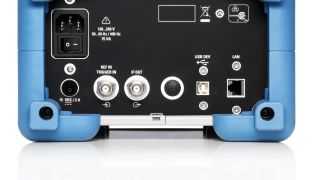

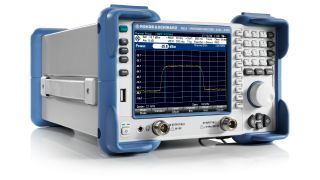

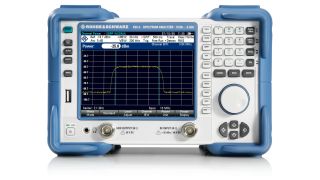

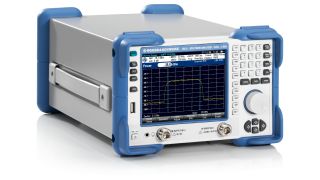

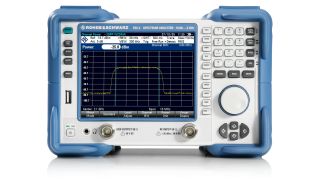

R&S®FSC 频谱分析仪,前视图 R&S®FSC 频谱分析仪,高前视图 R&S®FSC 频谱分析仪,侧视图 R&S®FSC 频谱分析仪,主视图 R&S®FSC Spectrum analyzer, Back high

主要特点

  • 频率范围介于 9 kHz 至 6 GHz
  • 出色的射频性能,非常适用于多种标准测量应用
  • 提供跟踪源型号
  • 体积小巧
  • 低功耗

聚焦 €8,670

体积小巧,性能优越

R&S®FSC 是一款具有成本效益的紧凑型解决方案,提供专业频谱分析仪的所有基础特性,同时兼具罗德与施瓦茨产品的卓越品质。这涵盖从简单开发任务到生产的各类应用,而且还可用于培训射频专业人士。此外,它还非常适用于
维修或维护应用。R&S®FSC 具有多种功能,可简化并加快射频产品的开发和测试流程。良好的射频特征和出色的测量准确度确保提供可重现的可靠测量结果。

特性和优点

性能

射频性能和测量预设确保提供可靠结果

R&S®FSC 具有出色的射频性能。借助出色的显示平均噪声电平 (DANL)、三阶截止点 (TOI) 和相位噪声性能,分析仪非常适用于多种标准测量应用。
分析仪针对相关频谱特性标配通用频谱分析预设,例如谐波、调幅深度和邻道泄漏比 (ACLR) 等。分析仪针对相关频谱特性标配通用频谱分析预定义设置,例如谐波、调幅深度和邻道泄漏比 (ACLR) 等。

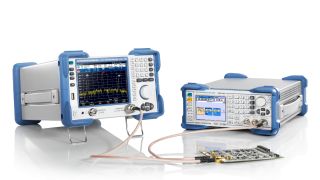

R&S®FSC6 测量信号(配备 R&S®SMC100A)
打开灯箱

R&S®FSC6 测量信号(配备 R&S®SMC100A)

小巧紧凑

体积小巧

R&S®FSC 的尺寸仅为 3 HU、½ 19",
体积远小于其他同类产品。分析仪仅占用
非常小的工作台空间。两台 R&S®FSC 分析仪,或一台 R&S®FSC
与一台 R&S®SMC 信号发生器仅占用 3 HU
机架空间

体积小,占用较小的工作台或机架空间
打开灯箱

体积小,占用较小的工作台或机架空间

经济高效

经济高效,拥有成本较低

实惠的初始成本和校准成本,测量功耗仅为 12 W,因此操作成本非常低,确保优越的总拥有成本优势

环保实惠:R&S®FSC
打开灯箱

环保实惠:R&S®FSC

可用型號

可用型號
型号
频率范围
相位噪声
DANL(1 GHz 时)
仪器类型
裸机价格

R&S®FSC3

订单号码 1314.3006.03

频率范围
9 kHz 至 3 GHz
相位噪声
–95 dB (1 Hz)
(f = 500 MHz,30 kHz 偏置)
DANL(1 GHz 时)
–165 dBm
仪器类型
+15 dBm
裸机价格
€8,670

R&S®FSC3

订单号码 1314.3006.13

频率范围
9 kHz 至 3 GHz
相位噪声
-95 dB (1 Hz)
(f = 500 MHz,30 kHz 偏置)
DANL(1 GHz 时)
–165 dBm
仪器类型
+15 dBm
裸机价格
€10,800

R&S®FSC6

订单号码 1314.3006.06

频率范围
9 kHz 至 6 GHz
相位噪声
-95 dB (1 Hz)
(f = 500 MHz,30 kHz 偏置)
DANL(1 GHz 时)
–165 dBm
仪器类型
+15 dBm
裸机价格
€11,300

R&S®FSC6

订单号码 1314.3006.16

频率范围
9 kHz 至 6 GHz
相位噪声
-95 dB (1 Hz)
(f = 500 MHz,30 kHz 偏置)
DANL(1 GHz 时)
–165 dBm
仪器类型
+15 dBm
裸机价格
€13,500

可用选项

通用
产品
描述
R&S®FSC-B22

订单号码 1314.3535.02

描述

通用附件
产品
描述
R&S®FSH-Z36

订单号码 1145.5838.02

描述

耳机

R&S®FSH-Z38

订单号码 1300.7740.02

描述

50/75 Ω 匹配件,L 型,N 转 BNC

双向,0 Hz 至 1 GHz,BNC 阴性连接器/N 型阳性连接器,负载容量 1 W

R&S®HA-Z210

订单号码 1309.6152.00

描述

Spare LAN cable

R&S®HZ-16

订单号码 1147.2720.02

描述

前置放大器

100 kHz 至 3 GHz,20 dB 增益,适用于 R&S®HZ-15 和 R&S®HZ-17 探头组

订单号码 1339.4141.02

描述

磁场近场探头组

R&S®RAM

订单号码 0358.5414.02

描述

匹配件,75 Ω,L 型

双向,0 Hz 至 2.7 GHz,N 型阴性连接器/N 型阳性连接器,负载容量 2 W,L 型

R&S®RAZ

订单号码 0358.5714.02

描述

匹配件,75 Ω,串联电阻器 25 Ω

0 Hz 至 2.7 GHz

R&S®ZZA-T33

订单号码 1109.4458.00

描述

R&S®ZZA-T34

订单号码 1109.4464.00

描述

功率探头
产品
描述

订单号码 1417.0409.02

描述

双通道二极管功率探头

通用功率探头,10 MHz 至 8 GHz,100 mW,双通道

订单号码 1417.0309.02

描述

双通道二极管功率探头

通用功率探头,10 MHz 至 18 GHz,100 mW,双通道

R&S®NRP-Z4

订单号码 1146.8001.02

描述

USB 适配器电缆(无源),长度:2 m
