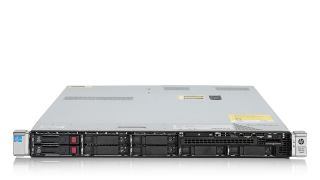

R&S®DB5400 VCMS 服务器

VCS 集中管理服务器

主要特点

集中系统管理实现简单操作
四重冗余架构
与 R&S®RCMS II 互为补充
一流的安全性
可用作硬件或虚拟软件包

获取报价

针对 CERTIUM VCS 系统集中协调配置

R&S®VCMS 切实而充分地采用 CERTIUM 系列的基本设计概念，将模块化设计、集中控制和冗余可靠性相结合。此服务器在 CERTIUM 语音通信系统 (VCS) 中占据重要地位，可将所有设备配置设置存储在通用的中心位置，并提供冗余备份。在 CERTIUM 体系中，服务器和 R&S®RCMS 远程控制服务设备用作管理单元。SQL 和 HTTP 提供完整的 IP 兼容性，确保 R&S®DB5400 能够使用密码保护通过 Web 对数据库的访问。

快速链接

可用选项

特性和优点

集中配置和管理

直观地管理分布式 VCS、网关和会话边界控制器

CERTIUM 产品体系重视可靠性和易维护性。集中管理分布式系统，能够增强可靠性和易维护性。分离设备和配置，可为系统提供额外的恢复性能。如果出现设备故障，故障将仅限定于特定硬件，不会影响全局系统配置设置。

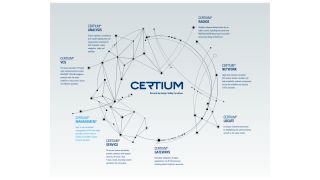

**CERTIUM – 一站式 ATC 网络解决方案** - CERTIUM 体系充分体现出罗德与施瓦茨坚持推出优质解决方案，以实现可靠的可持续性长期操作。

加密和保护

实施强大的安全协议以提供高级系统防护

安全问题不容妥协，正因如此，罗德与施瓦茨解决方案旨在确保一流的安全性。罗德与施瓦茨系统采用 Linux 操作系统强化等创新技术，并符合 FIPS 和 OWASP 行业标准，能够可靠应对空中导航服务提供商 (ANSP) 的关键基础设施。R&S®DB5400 VCMS 服务器进一步支持 VOTE VoIP 安全指南，能够可靠地增强关键应用的安全性。

集中无线电监测和控制

使用灵活拓扑远程监控远距离电台站点

无线电远程控制管理 (RRCM) 系统是 R&S®DB5400 VCMS 服务器的核心。此系统可以在单个无线电台和网络管理之间实现其他级别的通信。R&S®DB5400 还支持远程控制和监控，例如在控制中心控制和监控数百英里之外的电台站点。

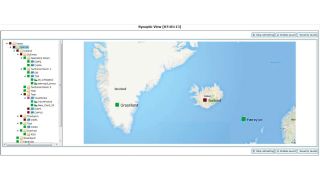

**概要视图** - 得益于 R&S®DB5400 VCMS 服务器，所有电台站点均触手可及。

四重冗余概念

多重冗余机制实现非凡的 ATC 可靠性

四重机制更具效益。罗德与施瓦茨利用 R&S®DB5400 VCMS 服务器推出独特的四重冗余拓扑，包含两对共四个冗余服务器，确保整体系统可用性高达 99.999%（又称“5 个 9”）。此外，VCS 还支持并行冗余协议 (PRP) 等专用协议。由于网络采用精密架构，因此可以将冗余扩展到整个控制中心和电台站点。

**四重冗余网络拓扑** - 罗德与施瓦茨推出独特的四重冗余技术，能够根据当前最高标准确保系统可用性。

无缝兼容

确保网络中的各个设备精确搭配

VCMS 服务器发挥核心作用，确保 R&S®VCS-4G 系统中的各个组件精确匹配。VCMS 服务器可与 RRMC 远程监控和控制系统搭配使用。这可以确保所有 VCS-4G 系统组件顺利运行。

安全认证

软件开发流程符合 ED-153 标准

罗德与施瓦茨根据 ED-153 ANS 软件安全保证指南开发系统。R&S®DB5400 VCMS 服务器是 VCS 系统的一部分，并获得英国独立评估公司 Certisa Ltd 认证，证实符合 EUROCAE ED-153 标准。此外，R&S®VCS-4G 硬件开发在产品生命周期方法中应用安全考虑和可追溯性等 ED-153 最佳实践。
