R&S®HK014E 甚高频/特高频同轴偶极子

100 MHz 至 2 GHz

R&S®HK014E 甚高频/特高频同轴偶极子
R&S®HK014E 甚高频/特高频同轴偶极子

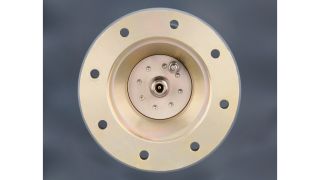

R&S®HK014E 甚高频/特高频同轴偶极子,前视图 R&S®HK014E 甚高频/特高频同轴偶极子,屏幕截图


  • 极宽的频率范围
  • 完满的垂直辐射方向图
  • 有效防范附近的雷击
  • 坚固设计
  • 特别适合在船舶中使用


R&S®HK014E 甚高频/特高频同轴偶极子是适用于固定和移动应用的垂直极化全向天线。天线覆盖 100 MHz 至 2000 MHz 的收发频率范围,专用于在恶劣的机械和气候条件下操作。偶极子底座上安装的天线杆底端配有便捷的天线接口,可用于客户应用。整个天线系统具有防溅水保护。天线可悬挂或直立安装。




R&S®HK014E 覆盖 100 MHz 至 2000 MHz 的宽频率范围,与安装多天线系统相比节省了成本和空间。附近安装的天线或天线杆不会影响此天线的全向覆盖。



R&S®HK014E 旨在优化整个工作频率范围内的垂直辐射方向图。支撑天线杆上的表面电流被大幅抑制。相较于具有类似构造和频率范围的其他天线,R&S®HK014E 能够更好地处理辐射强度不全或下降问题。



R&S®HX002H1 高频偶极子的风载荷较低。天线还采用坚固设计,能够承受最大 275 km/h 的风速。天线专用于满足船舶等应用中严格的冲击和振动要求。


R&S®HK014E 可有效防范附近的雷击。如果直接遭遇雷击,天线可能损坏。但是,天线法兰和天线杆设计会将雷击能量导向地面。天线杆必须符合当前的防雷法规。



订单号码 0525.5117.04



双工器适用于 100 MHz 至 174 MHz/225 MHz 至 450 MHz 频率范围
