R&S®HK012E 甚高频同轴偶极子

100 MHz 至 174 MHz

R&S®HK012E 甚高频同轴偶极子
R&S®HK012E 甚高频同轴偶极子

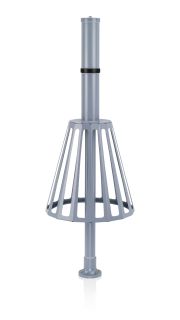

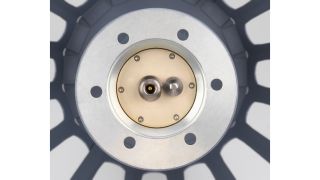

R&S®HK012E 甚高频同轴偶极子,前视图 R&S®HK012E 甚高频同轴偶极子,屏幕截图


  • 有效防范附近的雷击
  • 重量轻,风载荷极低
  • 采用加固设计,特别适合在船舶中使用
  • 优化雷达散射截面积


R&S®HK012E 甚高频同轴偶极子是适用于固定和移动应用的垂直极化全向天线。天线覆盖 100 MHz 至 174 MHz 的收发频率范围,甚至可在恶劣的机械和气候条件下操作。




R&S®HK012E 的所有金属部件均采用直流接地,以将雷击等可能的过压浪涌导向地面,从而保护人员和连接的设备。



R&S®HK012E 重量轻且风载荷较低,能够安装在天线杆和非重载型装置中。



R&S®HK012E 设计坚固且风载荷较低,能够承受最大 275 km/h 的风速。天线专用于满足船舶等应用中严格的冲击和振动要求。


R&S®HK012E 的形状在设计阶段进行了优化,这对于天线的电气特性(例如辐射方向图)非常重要。天线形状还决定雷达散射截面积 (RCS)。在海军舰艇中部署天线时,必须尽量减少 RCS。
