面向多台设备的卫星通信信号监测

R&S®GSACSM 通信系统监测 (CSM) 是一款卫星监测软件解决方案,可用于远程频谱监测和信号分析。R&S®GSACSM 具备常规频谱分析仪功能、捕获系统以及高级信号检测和识别算法。

  • 多设备频谱监测
  • 甚小口径终端、单路单载波信号、载波标识、载波间信号
  • 高级编程接口用于软件远程控制
  • 卫星等效全向辐射功率监测

特性和优点

自主频谱扫描

自主频谱扫描和卫星通信载波识别

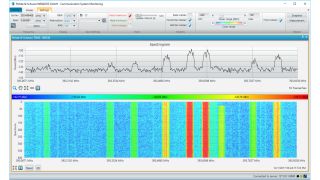

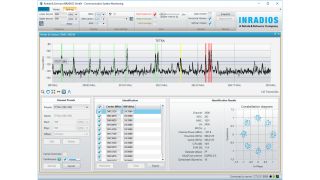

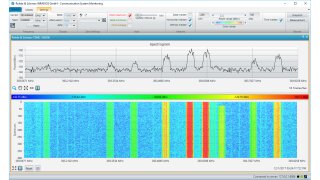

R&S®GSACSM 分类功能支持系统自主扫描频谱信号并识别载波。载波可显示在彩色图表和列表中。图表和列表元素便于轻松识别每个载波。手形工具便于用户添加新区域,以便选择特定载波进行进一步处理。所有收集的信号参数和星座图均清楚显示。

基于软件的信号解调
打开灯箱

基于软件的信号解调

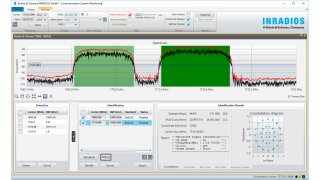

可以识别多种调制标准和类型(DVB-S、DVB-S2、IESS、GSM 等)

载波叠加检测

通过载波叠加检测识别底层信号

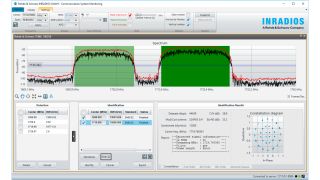

使用 R&S®GSACSM 的成对载波多址 (PCMA) 检测和信号识别系统能够检测并识别 PCMA 信号(载波频率和波特率相同的两个载波)。通过载波间检测识别可疑干扰,以确定有用信号下的无用非对称信号源。

基于软件的载波抵消
打开灯箱

基于软件的载波抵消

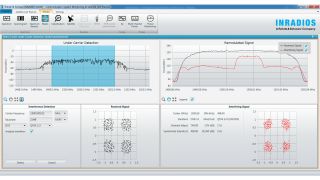

卫星通信载波被抵消,以便识别载波间信号。

DVB-CID 解调

针对 DVB-CID 信号的连续频谱扫描和解调

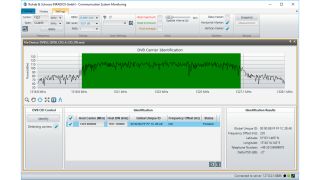

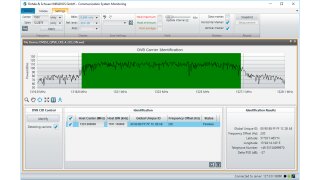

现代卫星通信需要有效避免频繁发生的信号干扰。数字视频广播机构规定了识别主载波的载波标识 (CID),能够有效减少卫星信号之间的干扰。R&S®GSACSM 能够检测和解调 CID 信号。CID 特定的“全局唯一标识”、GPS 坐标和电话号码信息可从信号中提取出来。

DVB-CID 解调
打开灯箱

DVB-CID 解调

解调重复进行,直至捕获所有 CID 参数。

连续载波监测

通过多通道服务调度表轻松监测载波

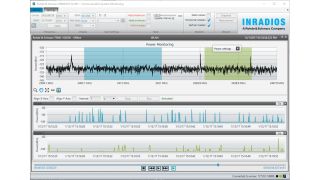

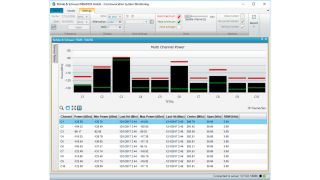

R&S®GSACSM 使用多通道服务调度表监测信号参数。R&S®GSACSM 能够设置报警阈值,以在出现无用信号的时候通知用户。用户可以定义频谱信号模板以立即识别每一个可疑载波。

通过服务调度表监测信号
打开灯箱

通过服务调度表监测信号

可以设置多种监测目标:载噪比、信号功率、信号带宽、调制、前向纠错率等

分布式网络结构

可扩展的客户端/服务器架构


R&S®GSACSM 采用可扩展的客户端/服务器架构,可在分布式系统中进行远程频谱分析。操作人员可以管理位于不同地点的仪器,如 R&S®NRQ6 等射频组件。R&S®GSACSM 支持以下罗德与施瓦茨传感器仪器:

  • R&S®TSME6;
  • R&S®FSW;
  • R&S®FPS;
  • R&S®FSV;
  • R&S®FSVA;
  • R&S®FSV3000;
  • R&S®FSVA3000;
  • R&S®ESMD;
  • R&S®ESME;
  • R&S®FPL;
  • R&S®NRQ6;
  • R&S®MSR200;
  • R&S®MSR4;

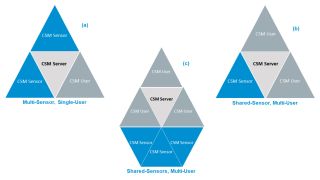

同时管理不同的接收机
打开灯箱

同时管理不同的接收机

可用选项

通用
产品
描述
R&S®GSACSMMEAS

订单号码 3065.3478.02

描述

CSM measurements

Store and replay of sampled IQ data files, offline IQ sample file processing

请求信息

如果您有任何疑问或需要了解更多信息,请填写此表格,我们会尽快回复您。

推广许可

你的申请已提交,我们稍后会联系您。
An error is occurred, please try it again later.
