主要特点

  • 非常适用于同时验证所有网络的覆盖范围
  • 解码多种制式中的所有信道
  • 可用于路测和室内测量
  • 最高 100 MHz 带宽的 I/Q 流传输
  • 覆盖从 10 MHz 至 8.5 GHz 的宽频率范围(使用 R&S®TSMS53DC 下变频器可扩展到 17 GHz 至 53 GHz)
  • 3 年延长保修
  • NB-IoT

通过非侵入式扫频仪测量实现优化、故障排查和移动覆盖范围测量

通过单个工具进行射频测量和广播信号解码,并即时获取结果

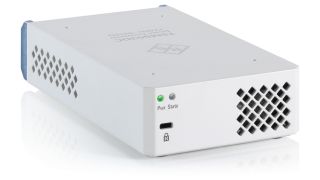

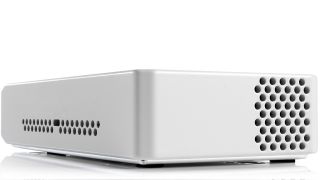

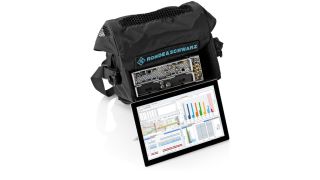

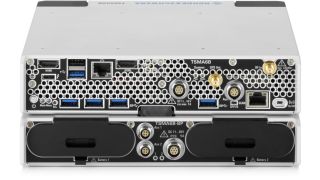

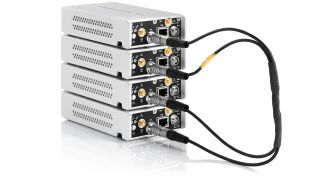

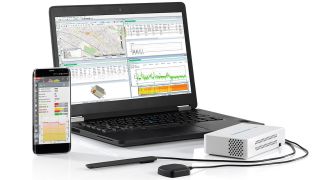

R&S®TSMx 是先进的路测和步测网络扫频仪系列,包括 R&S®TSMS8、R&S®TSMA6B 和 R&S®TSME6 扫频仪。R&S®TSMx 产品从空中接口被动捕获数据,能够多方位准确了解热门技术的射频性能和 MIB/SIB/第 3 层消息,无需订阅网络服务。

特性和优点

5G NR 支持(包括 RedCap)

使用 R&S®TSMS53DC 支持最高 8.5 GHz 的 5G NR FR1 和毫米波频段(17 GHz 至 53 GHz)

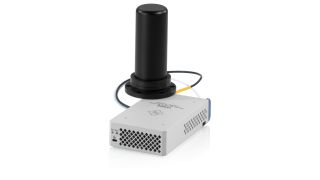

R&S®TSMx 是一款面向未来的硬件平台,可现场升级用于 5G NR(包括 RedCap 和 FRMCS)Sub-8.5 GHz 和毫米波测量。可以安装测量毫米波频段所需的附加硬件 R&S®TSME44DC/R&S®TSMS53DC,从而简化测量装置,并缩短设置时间。此系统无需 SIM 卡即可解调 L3/SIB 消息(R17 规范)。

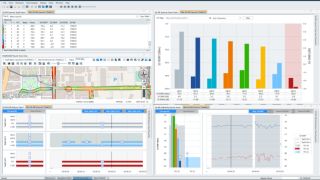

5G 新空口
显示更多详细信息

5G 新空口

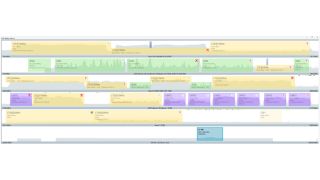

自动信道检测 (ACD)

自动检测所有频段和制式

R&S®TSMx 可在指定频段内检测占用信道。它支持 5G NR(包括 RedCap)、LTE(包括 LTE-M)、UMTS、CDMA2000®/1xEV-DO、TETRA、P25 和 NB-IoT 网络。还可以使用频谱扫频选件显著加快检测过程。在此模式下,用户在进行测量前不再需要设置信道列表。测量系统可在路测过程中动态地识别新信道,并将其添加到工作区中。

自动信道检测 (ACD)
显示更多详细信息

自动信道检测 (ACD)

5G 基站收发信台位置估算

自动估算所有网络中的小区位置

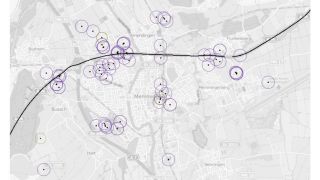

在路测过程中,R&S®ROMES 软件可以使用 R&S®TSMx 提供的测量数据和 GPS 数据估算基站的地理位置。这种计算既快捷又准确, 可同时应用于 GSM、WCDMA、LTE、5G NR、CDMA2000®/1xEVDO 和 TETRA 网络。这种独特功能使用户能够快速生成基站列表,供输出或图形显示。

基站收发信台位置估算
显示更多详细信息

基站收发信台位置估算

关键任务测试:TETRA 和 Project 25 (P25) 网络

重要的 R&S®TSMx 应用场景包括关键任务语音和数据 (MCX) 网络的覆盖测量与干扰测量。即使在紧急情况下,消防员、警察和其他急救人员也可以使用 MCX 网络来保证最大的覆盖范围和可靠性。充分的射频覆盖范围和质量对于保障安全非常重要。许多地区都在使用 TETRA/TETRA DMO 和/或 P25 网络。R&S®TSMx 支持 TETRA/TETRA DMO 以及 P25 Phase 1 和 Phase 2。在 TETRA/TETRA 中,扫频仪还支持 DMO 系统信息解调。

网络同步和时间对准误差 (TAE) 测量

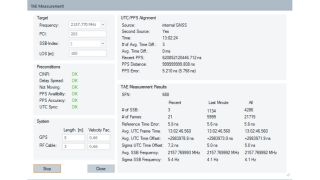

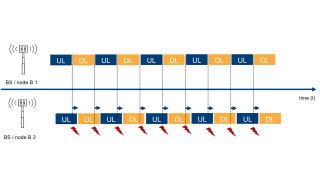

随着引入时分双工 (TDD) 模式的 5G NR 技术,网络的时域同步变得更加重要。R&S®TSMx 路测和步测扫频仪能够测量 PPS 脉冲(或内部接收机时钟信号)与接收的 5G NR 和 LTE 信号序列的到达时间偏差,进而测定网络同步的质量。 测量网络组件的时间对准误差 (TAE) 是一项特殊的网络优化任务。滤波器、电缆、天线阵列和信号处理模块可能增加时间延迟。和网络时基的偏差会造成频率漂移。为了测量 5G NR 小区的频率精度,R&S®TSMx 扫频仪能够精确测量 SSB 中心频率(精度达到几赫兹)。

显示更多详细信息

使用 R&S®TSMS8 传输 I/Q 流

R&S®TSMS8 支持最高 100 MHz 带宽和 20 位分辨率的连续 I/Q 流传输,适合高要求的信号分析应用。

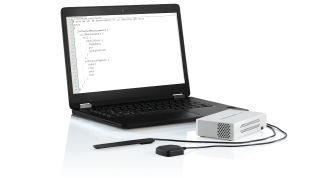

基于 Web 的应用程序编程接口

无论是什么操作系统,扫频仪都能通过基于 Web 的编程接口快速集成到任何第三方软件中。扫频仪支持移动网络测试和蜂窝网络分析场景。有关详细信息,请参阅下载部分的 R&S®TSMX-API 产品手册。

显示更多详细信息

综合全面的附件

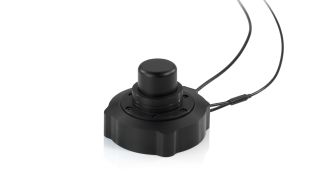

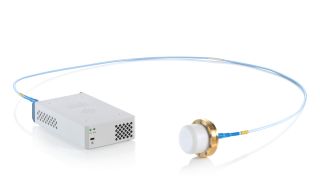

综合全面的附件可用。罗德与施瓦茨的宽带全向天线可选配磁吸式或固定式天线架,适用于 Sub-8.5 GHz 频率范围的路测。R&S®TSMS-OMN8 全向天线全面满足整个 FR1 频段的各项要求。此解决方案覆盖从 380 MHz(低频段)至 8.5 GHz(高频段)的宽频率范围,非常适用于整个 FR1 频段和一部分 FR3 频段。R&S®TSMS-OMN70 宽带全向天线优化了步测和路测模式,适合用于毫米波应用。罗德与施瓦茨的 R&S®TSMS-LMAGM 磁吸式天线架专用于路测场景,设计非常坚固。它提供多种款式,可覆盖不同的频率范围(FR1 或 FR2),并且很好地兼容公司自主研发的全向天线。

显示更多详细信息

C-V2X 支持

蜂窝车联网网络测试

蜂窝车联网 (C-V2X) 是关于车辆连接性、改进道路安全和高效管理流量的新行业标准。此标准支持车辆之间以及车辆与路侧单元 (RSU) 等网络基础设施之间的直接通信。R&S®TSMx 配备 K36 选件,可以测量 PC5 侧行链路接口的覆盖范围和质量,以保障可靠的 V2X 通信。

显示更多详细信息

可用型号

Superwideband Scanner TSMS8 Introduction Video

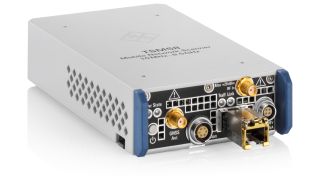

R&S®TSMS8 superwideband mobile network scanner

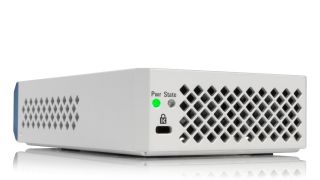

The R&S®TSMS8 is the next generation of ultracompact, superwideband RF scanning receivers for the wide frequency range from 10 MHz to 8.5 GHz.. The ultracompact design and ultra-wide receiver bandwidth of up to 400 MHz, along with support for all major technologies, mean the R&S®TSMS8 can perform simultaneous measurements at unmatched speeds for efficient mobile network testing and network analysis for governments and regulators.

相关视频

R&S®TSMS8 超宽带移动网络扫频仪

R&S®TSMS8 是下一代超紧凑、超宽带射频扫描接收机,覆盖 10 MHz 至 8.5 GHz 的宽频率范围。

11月 02, 2025

TSMx 网络扫频仪

R&S®TSMx 扫频仪灵活且易于升级,专用于高效的路测与步测。观看视频,详细了解 R&S®TSMx 功能。

8月 05, 2024

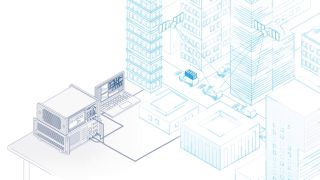

从实验室到试验场持续保障蜂窝车联网性能

蜂窝车联网 (C-V2X) 技术为安全关键型功能提供支持,必须确保可在恶劣环境中正常运作。观看视频。

3月 21, 2022

5G 专用网的网络测试

观看本视频,了解罗德与施瓦茨网络测试解决方案如何满足专用网的相关要求,并为 5G 专用网所有者提供支持。

8月 05, 2021

C-V2X/PC5 现场覆盖范围和信号质量测量

C-V2X/PC5 通信接口的部署,是确保车联网驾驶数据通信安全、便捷和有效的重要里程碑。我们确信在不久的将来这将成为至关重要的任务和与安全息息相关一项关于 C-V2X/PC5 现场测量的研究项目利用网络扫频仪检查 PC5 通信通道的质量和覆盖范围。

6月 16, 2021

5G TDD 网络同步 – 理论

5G TDD 网络同步的重要性

7月 13, 2019

揭秘 5G——毫米波频率下的 SSB 波束成形概念

本视频解释了同步信号块 (SSB) 的概念、如何在 sub 6 GHz 和毫米波频率下实现 SSB 波束成形,以及网络基础设施可以实现的不同波束数量。

7月 03, 2019

5G TDD 网络同步 – 演示

演示如何测量 5G TDD 网络同步

6月 13, 2019

用例

NB-IoT

详细了解 NB-IoT 网络测试以及有针对性的测量解决方案。

更多信息

4x4 MIMO

详细了解通过 4x4 MIMO 提高容量以及有针对性的测量解决方案。

更多信息

请求信息
